M10 x 40mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.62 | £0.75 |
| 100 - 999 | £0.56 | £0.67 |
| 1000 + | £0.36 | £0.43 |
Product Specification
| Thread Size | M10 |
| Pitch | 1.50mm |
| Length | 40mm |
| Threaded Length | 26mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 17mm |
| Head Height | 6.6mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M10 x 40mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
Suitable for OEM production, this M10 x 40mm part thread bolt is used where the unthreaded shank can help locate components before the joint is fully tightened. The 6.6mm head height and 17mm across flats dimensions support straightforward tool selection. The result is a metric machinery bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. The 6.6mm head height gives the installer a clear external drive for workshop and site fitting.
Common Applications
- Joining repeatable assemblies in OEM production
- Building factory-built frames using M10 metric hardware
- Aligning subassembly joints where A4-80 Stainless Steel is specified
- Replacing serviceable product builds requiring DIN 931 part threaded bolts

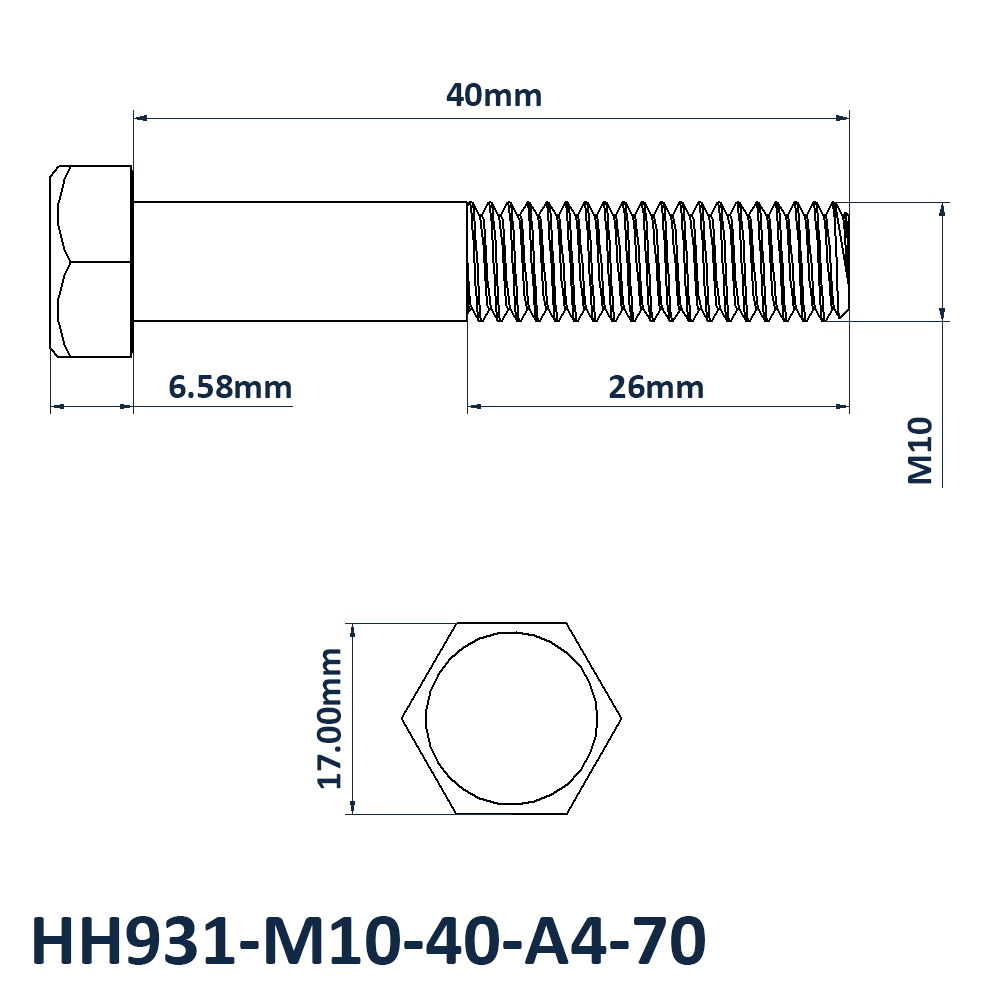

M10 x 40mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M10
- Length: 40mm
- Threaded Length: 26mm
- Pitch: 1.50mm
- Across Flats: 17mm
- Head Height: 6.6mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
