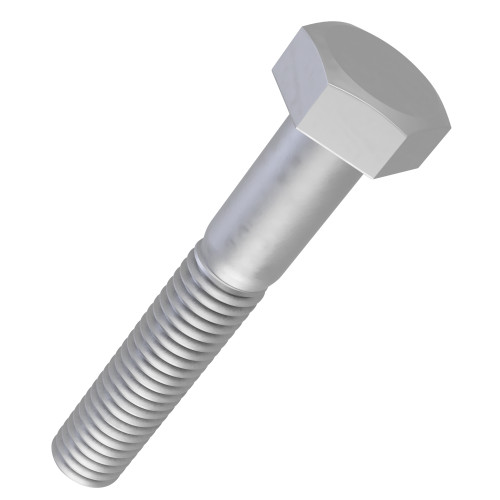

M24 x 110mm Hex Bolt - Part Threaded (DIN 931) | 8.8 Steel Galvanised
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.15 | £3.78 |
| 100 - 499 | £2.42 | £2.91 |
| 500 - 999 | £1.97 | £2.36 |
| 1000 - 4999 | £1.75 | £2.10 |
| 5000 + | £1.57 | £1.89 |
£3.78 / each
Product Specification
| Thread Size | M24 |
| Pitch | 3.00mm |
| Length | 110mm |
| Threaded Length | 54mm |
| Material | 8.8 Steel Galvanised |
| Across Flats | 36mm |
| Head Height | 15.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M24 x 110mm Hex Head Bolt DIN 931 | 8.8 Steel Galvanised
Designed for steel fabrication projects, this M24 x 110mm DIN 931 hex bolt combines a plain shank section with a threaded end for strong alignment through prepared holes. The 8.8 Steel Galvanised specification makes it suitable for outdoor steelwork, agricultural frames and exposed fabrication where galvanised protection is preferred. This makes the M24 x 110mm hex head bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. The 8.8 Steel Galvanised grade should be selected around the working environment and load expectations for the assembly.
Common Applications
- Clamping fabricated brackets in steel fabrication projects
- Fastening welded frames using M24 metric hardware
- Installing support plates where 8.8 Steel Galvanised is specified
- Joining maintenance access assemblies requiring DIN 931 part threaded bolts
M24 x 110mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M24
- Length: 110mm
- Pitch: 3.00mm
- Threaded Length: 54mm
- Across Flats: 36mm
- Head Height: 15.4mm
- Head Style: Hex Head
- Standard: DIN 931
- Material: 8.8 Steel Galvanised
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
