M12 x 120mm Hex Bolt - Part Threaded (DIN 931) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.81 | £0.97 |
| 100 - 999 | £0.77 | £0.92 |
| 1000 + | £0.71 | £0.85 |
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Length | 120mm |
| Threaded Length | 30mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 19mm |
| Head Height | 7.9mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M12 x 120mm Hex Head Bolt DIN 931 | A2-70 Stainless Steel
Use this M12 x 120mm part threaded hex bolt when temporary site equipment needs a strong metric fastening that can be tightened from the head side. The DIN 931 form offers a standardised shank and thread layout for predictable installation. This makes the metric hex head bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. The 30mm threaded section gives enough engagement for matched hardware while the 120mm overall length supports through-bolting and spaced components.
Common Applications
- Supporting modular frames in temporary site equipment
- Maintaining removable fixings using M12 metric hardware
- Reinforcing serviceable supports where A2-70 Stainless Steel is specified
- Repairing portable plant hardware requiring DIN 931 part threaded bolts

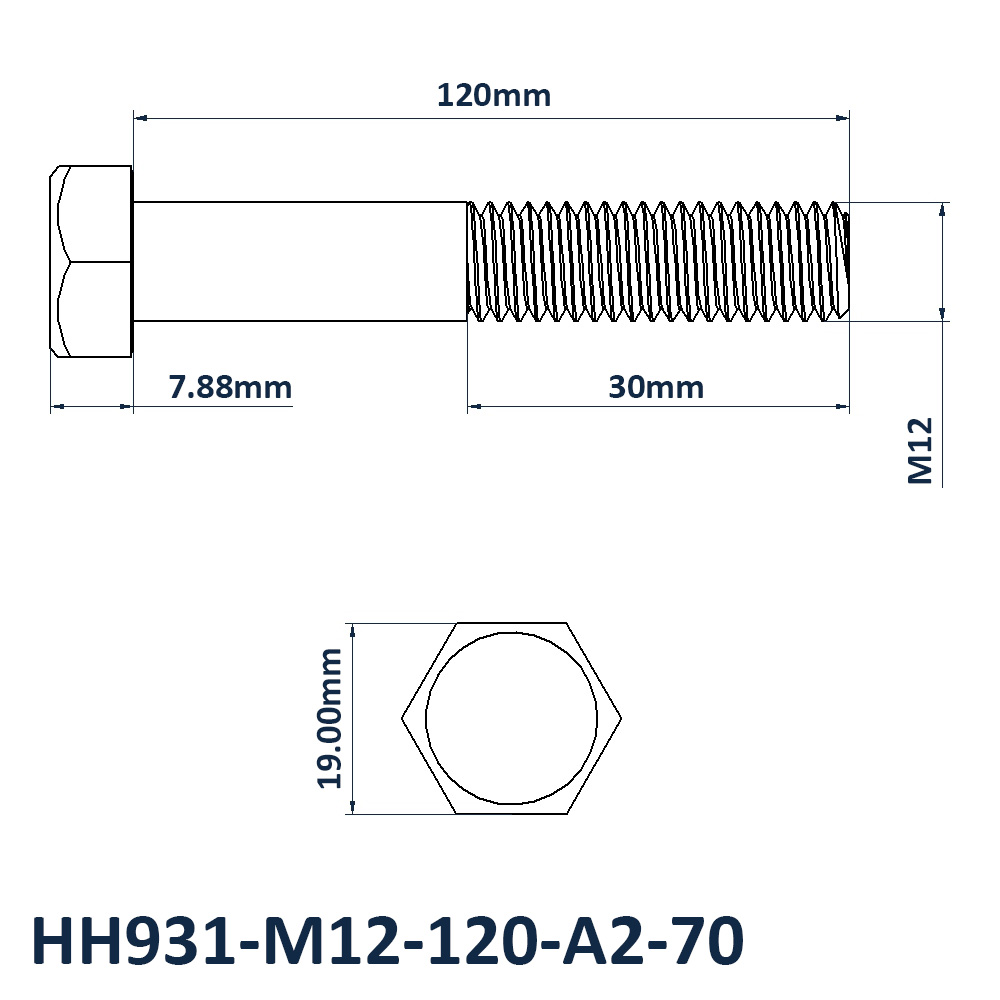

M12 x 120mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M12
- Length: 120mm
- Threaded Length: 30mm
- Pitch: 1.75mm
- Across Flats: 19mm
- Head Height: 7.9mm
- Material: A2-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
