M12 x 120mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.49 | £1.79 |
| 100 - 999 | £1.42 | £1.70 |
| 1000 + | £1.31 | £1.57 |
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Length | 120mm |
| Threaded Length | 30mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 19mm |
| Head Height | 7.9mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M12 x 120mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
This M12 x 120mm metric hex bolt supports sheet metal fabrication by combining a high-torque hex head with a part threaded shank. The 1.75mm pitch, 19mm across flats and 7.9mm head height give clear installation reference points. The result is a hex head machine bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. With a 1.75mm pitch and 19mm across flats head, it is easy to specify for fabricated frames and medium duty plant.
Common Applications
- Fixing folded brackets in sheet metal fabrication
- Upgrading cover plates using M12 metric hardware
- Securing enclosure frames where A4-70 Stainless Steel is specified
- Mounting mechanical fixing points requiring DIN 931 part threaded bolts

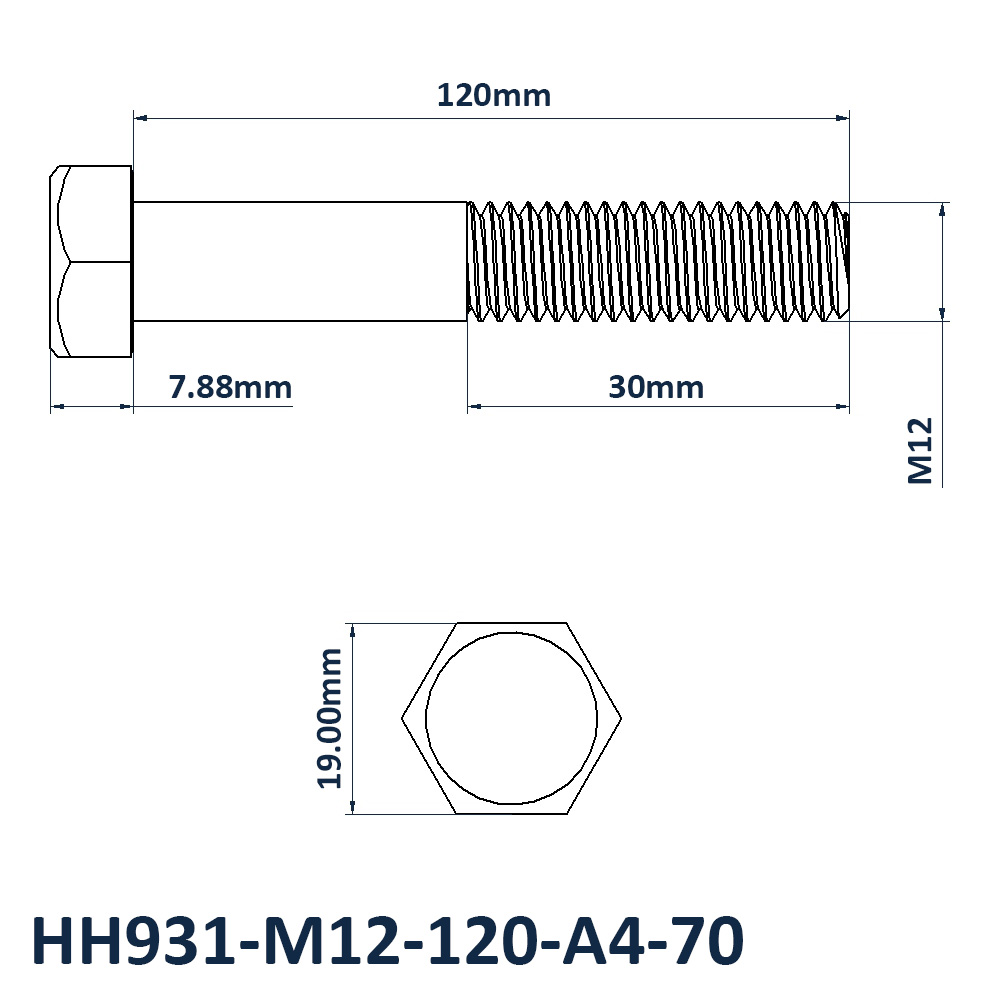

M12 x 120mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M12
- Length: 120mm
- Threaded Length: 30mm
- Pitch: 1.75mm
- Across Flats: 19mm
- Head Height: 7.9mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
