M27 x 100mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £13.38 | £16.05 |
| 100 - 999 | £12.03 | £14.44 |
| 1000 + | £10.17 | £12.20 |
Product Specification
| Thread Size | M27 |
| Pitch | 3.00mm |
| Length | 100mm |
| Threaded Length | 60mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 41mm |
| Head Height | 17.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M27 x 100mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
For rail and transport equipment, this M27 x 100mm part threaded hex bolt gives engineers a practical fixing with a 41mm across flats head and 3.00mm thread pitch. It is a useful choice where repeatable assembly and maintenance access matter. The result is a M27 part threaded bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. With a 3.00mm pitch and 41mm across flats head, it is easy to specify for heavy engineering, structural equipment and specialist plant assemblies.
Common Applications
- Repairing service panels in rail and transport equipment
- Clamping carriage fittings using M27 metric hardware
- Fastening mounting lugs where A4-70 Stainless Steel is specified
- Installing vibration-prone assemblies requiring DIN 931 part threaded bolts

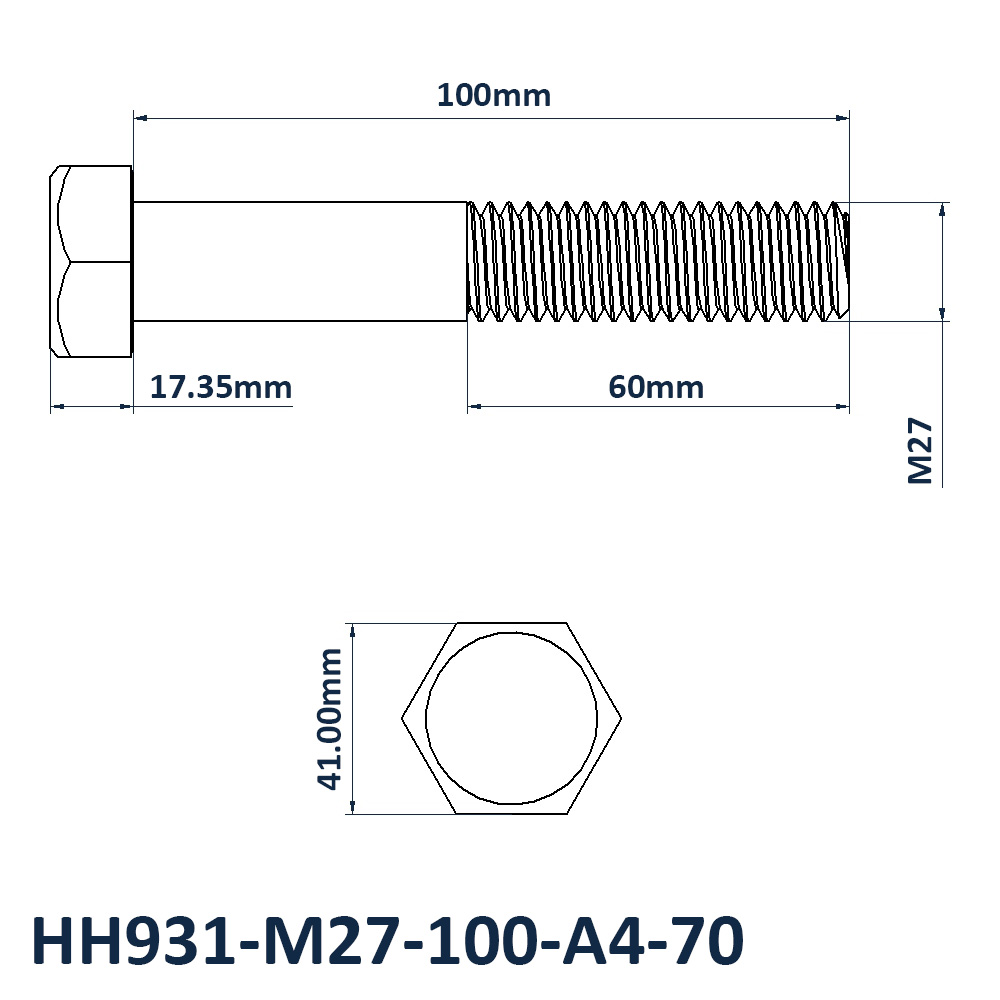

M27 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M27
- Length: 100mm
- Threaded Length: 60mm
- Pitch: 3.00mm
- Across Flats: 41mm
- Head Height: 17.4mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
