M27 x 150mm Hex Bolt - Part Threaded (DIN 931) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £11.40 | £13.68 |
| 100 - 999 | £10.26 | £12.31 |
| 1000 + | £8.66 | £10.39 |
Product Specification
| Thread Size | M27 |
| Pitch | 3.00mm |
| Length | 150mm |
| Threaded Length | 66mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 41mm |
| Head Height | 17.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M27 x 150mm Hex Head Bolt DIN 931 | A2-70 Stainless Steel
Designed for chemical processing sites, this M27 x 150mm DIN 931 hex bolt combines a plain shank section with a threaded end for strong alignment through prepared holes. The A2-70 Stainless Steel specification makes it suitable for general engineering, stainless fabrications and indoor or sheltered outdoor installations. This makes the M27 x 150mm hex head bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. The A2-70 Stainless Steel grade should be selected around the working environment and load expectations for the assembly.
Common Applications
- Upgrading corrosion resistant brackets in chemical processing sites
- Securing pipe support frames using M27 metric hardware
- Mounting plant access hardware where A2-70 Stainless Steel is specified
- Assembling stainless service panels requiring DIN 931 part threaded bolts

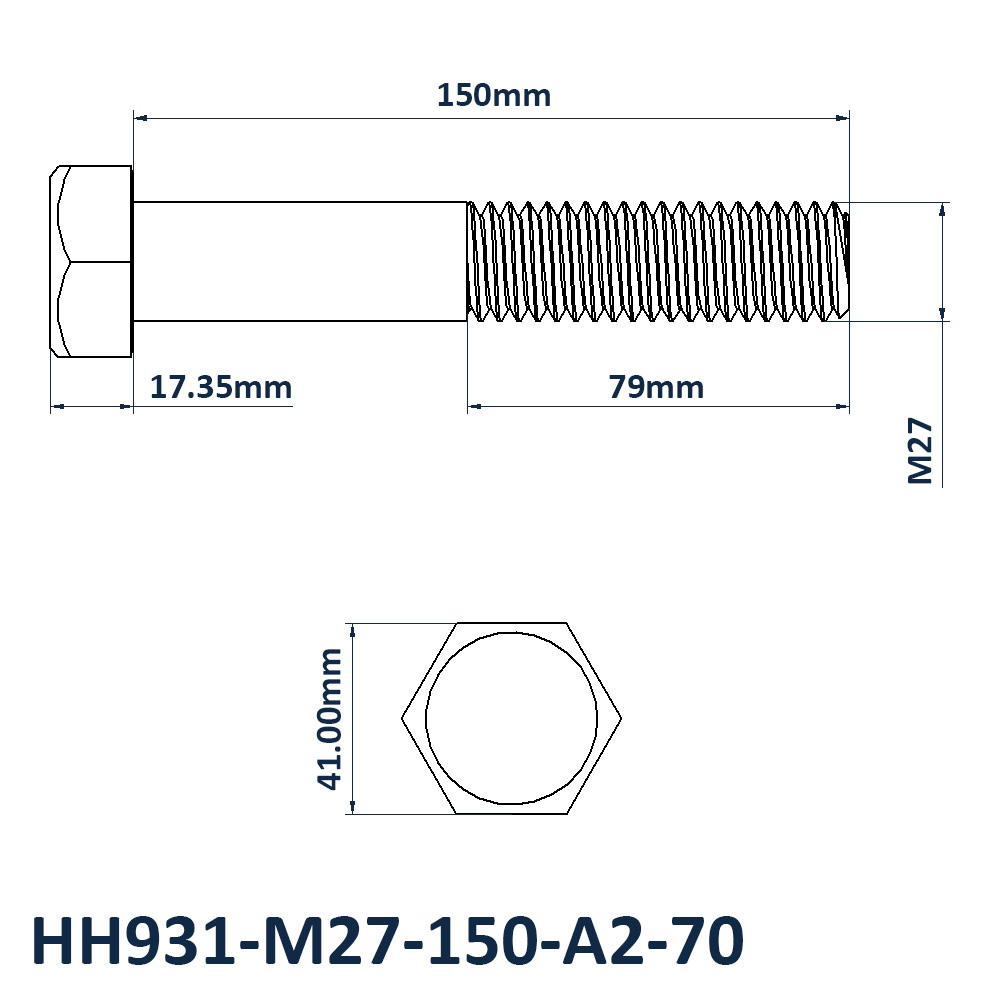

M27 x 150mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M27
- Length: 150mm
- Threaded Length: 66mm
- Pitch: 3.00mm
- Across Flats: 41mm
- Head Height: 17.4mm
- Material: A2-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
