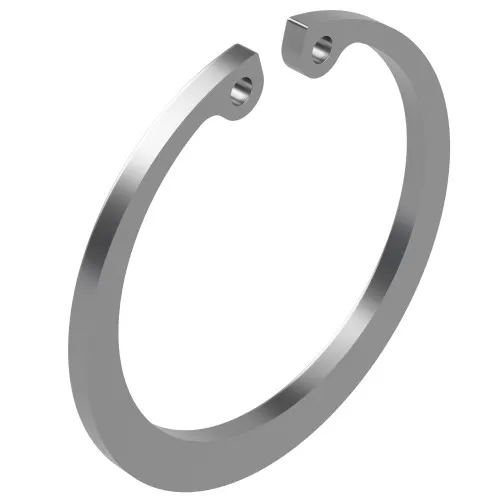

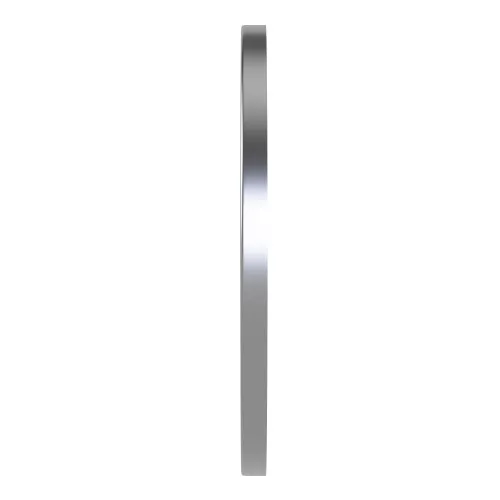

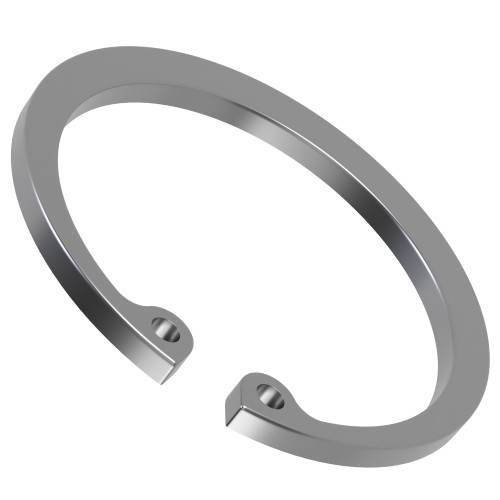

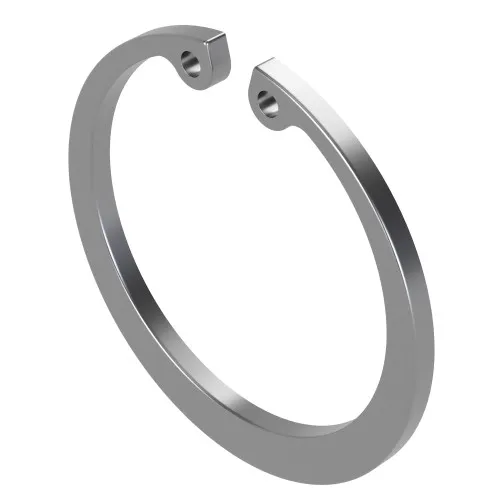

22mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.77 | £2.13 |
| 10 - 24 | £1.42 | £1.70 |
| 25 - 49 | £1.07 | £1.28 |
| 50 - 99 | £0.89 | £1.07 |
| 100 - 499 | £0.80 | £0.96 |
| 500 - 999 | £0.71 | £0.85 |
| 1000 + | £0.53 | £0.64 |
£2.13 / each
.png)
Product Specification
| For Bore Diameter | 22mm |
| Tang Height | 4.2mm |
| Outside Diameter | 23.5mm |
| Thickness | 1.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
22mm Internal Circlip, 23.5mm OD, DIN 472, A2 Stainless
Manufactured to DIN 472, the 22mm Bore Circlip is used where components need to be held inside a 22mm housing without relying on threaded fasteners.
A raised tang profile gives circlip pliers a clear contact point, making fitting and removal more controlled during servicing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
Unlike external circlips, which fit around a shaft, an internal circlip expands into a bore groove. This makes it suitable for retaining parts inside housings, cylinders and machined recesses.
Common Applications
- Locating bushes in machined housings
- Agricultural machinery maintenance
- Production line maintenance spares
- Electrical enclosure mechanical fittings
22mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 22mm
- Tang Height: 4.2mm
- Outside Diameter: 23.5mm
- Thickness: 1mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
