14mm Internal Circlip DIN 472 A2 Stainless Steel
Product code:
CCLIP472-14-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.00 | £1.20 |
| 10 - 24 | £0.80 | £0.96 |
| 25 - 49 | £0.60 | £0.72 |
| 50 - 99 | £0.50 | £0.60 |
| 100 - 499 | £0.45 | £0.54 |
| 500 - 999 | £0.40 | £0.48 |
| 1000 + | £0.30 | £0.36 |
£1.20
/ each
Quantity:
Product Specification
| For Bore Diameter | 14mm |
| Tang Height | 3.7mm |
| Outside Diameter | 15.1mm |
| Thickness | 1.00mm |
| Material | A2 Stainless Steel |
| Standard | DIN 472 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

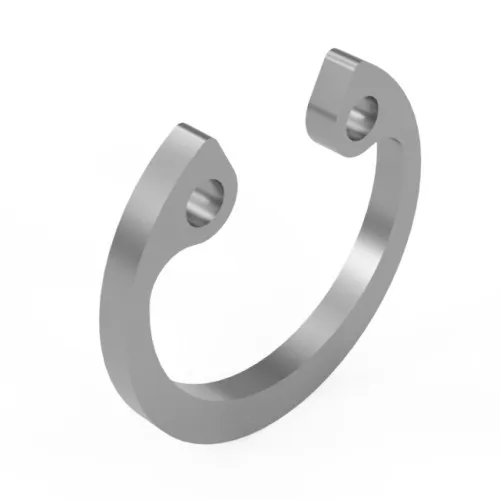

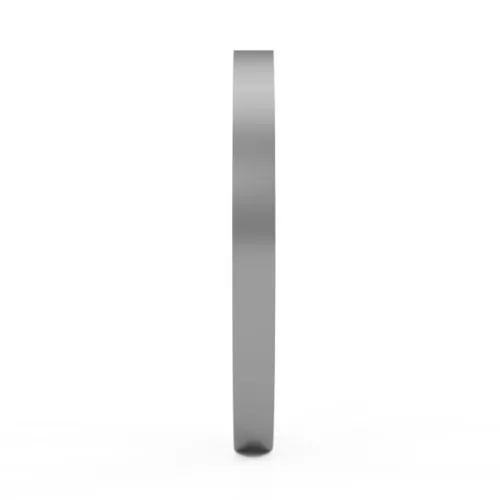

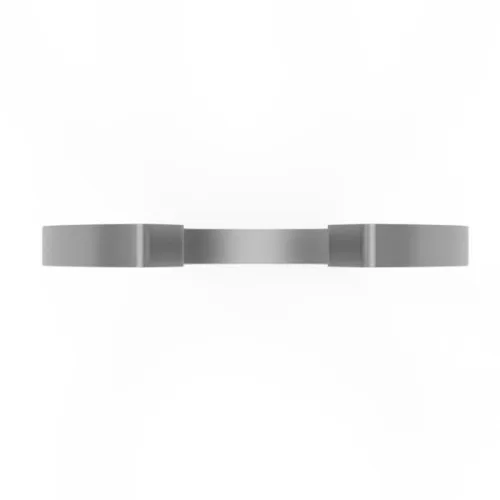

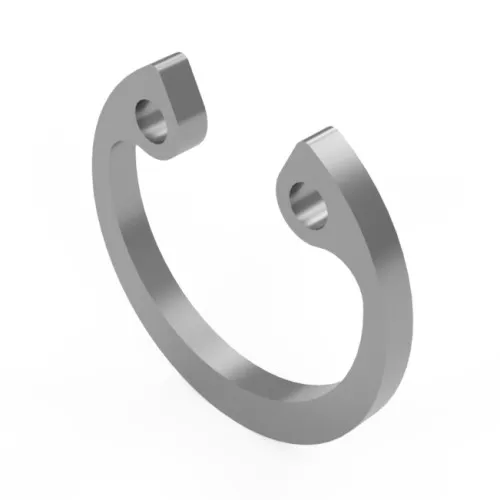

14mm Internal Circlip, 15.1mm OD, DIN 472, A2 Stainless
Commonly used within production line maintenance spares, this 14mm Bore Retaining Ring helps prevent axial movement once fitted into a correctly machined internal groove.
This style is selected when the fixing needs to sit within the bore rather than around a shaft, keeping the external face of the assembly clear. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
Unlike external circlips, which fit around a shaft, an internal circlip expands into a bore groove. This makes it suitable for retaining parts inside housings, cylinders and machined recesses.
Common Applications
- Motor rebuilds and servicing
- Retaining bearings inside electric motors
- OEM mechanical assemblies with bore grooves
- Packaging machinery bearing retention
14mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 14mm
- Tang Height: 3.7mm
- Outside Diameter: 15.1mm
- Thickness: 1mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
