18mm Internal Circlip DIN 472 A2 Stainless Steel
Product code:
CCLIP472-18-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.62 | £6.74 |
| 10 - 24 | £4.49 | £5.39 |
| 25 - 49 | £3.38 | £4.05 |
| 50 - 99 | £2.81 | £3.37 |
| 100 - 499 | £2.52 | £3.03 |
| 500 - 999 | £2.25 | £2.70 |
| 1000 + | £1.68 | £2.02 |
£6.74
/ each
Quantity:
Product Specification
| For Bore Diameter | 18mm |
| Tang Height | 4.1mm |
| Outside Diameter | 19.5mm |
| Thickness | 1.00mm |
| Material | A2 Stainless Steel |
| Standard | DIN 472 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

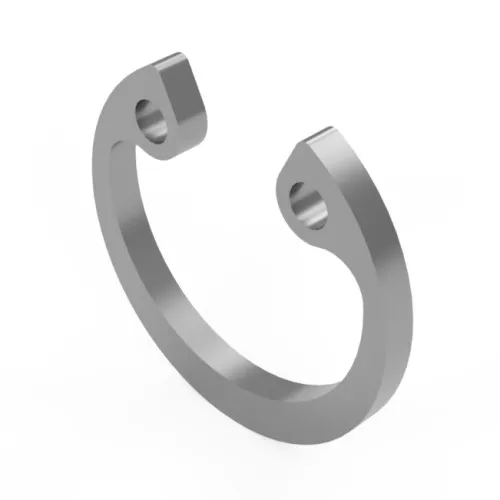

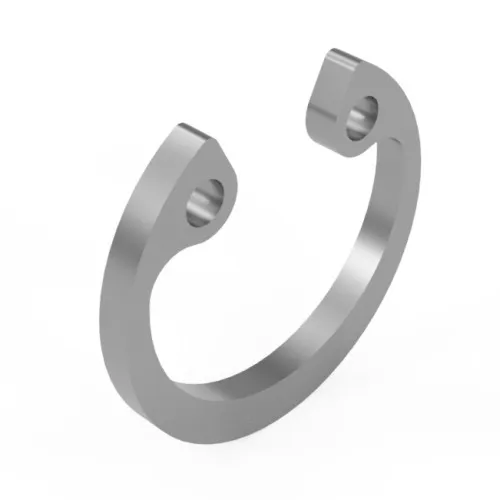

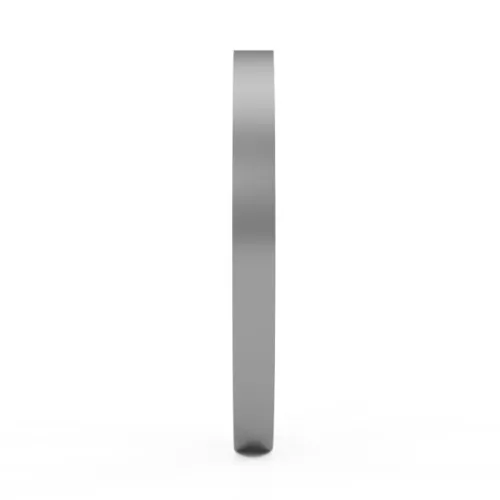

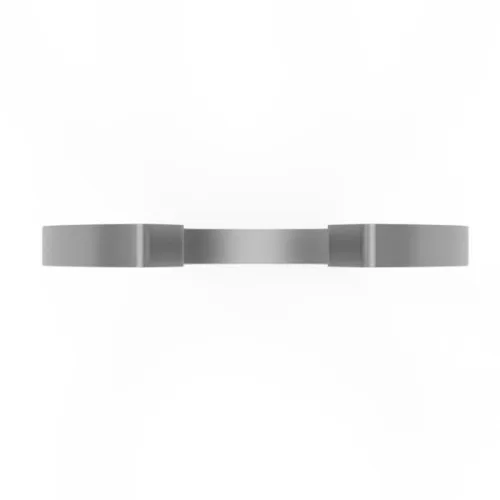

18mm Internal Circlip, 19.5mm OD, DIN 472, A2 Stainless
Developed for assemblies where access is limited, this 18mm Precision Circlip fits inside a 18mm bore and retains components without adding external fixings.
For repair teams, this format allows worn or damaged clips to be replaced without redesigning the surrounding housing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
For replacement work, the bore diameter and outside diameter should be checked against the existing groove. This helps prevent loose fitment or overstressing during installation.
Common Applications
- Fabricated equipment with internal bores
- Trailer manufacture and repair work
- Rotating shaft support housings
- Holding spacers within gearbox assemblies
18mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 18mm
- Tang Height: 4.1mm
- Outside Diameter: 19.5mm
- Thickness: 1mm
- Material: A2 Stainless Steel
- Standard: DIN 472
