11mm Internal Circlip DIN 472 A2 Stainless Steel
Product code:
CCLIP472-11-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.92 | £1.10 |
| 10 - 24 | £0.73 | £0.88 |
| 25 - 49 | £0.55 | £0.66 |
| 50 - 99 | £0.46 | £0.55 |
| 100 - 499 | £0.42 | £0.50 |
| 500 - 999 | £0.37 | £0.44 |
| 1000 + | £0.28 | £0.33 |
£1.10
/ each
Quantity:
Product Specification
| For Bore Diameter | 11mm |
| Tang Height | 3.3mm |
| Outside Diameter | 11.8mm |
| Thickness | 1.00mm |
| Material | A2 Stainless Steel |
| Standard | DIN 472 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
11mm Internal Circlip, 11.8mm OD, DIN 472, A2 Stainless
Ideal for industrial machinery assemblies, this 11mm Internal Retaining Clip provides internal retention for bearings, spacers and sleeves inside a 11mm bore.
Because the ring sits inside the bore, it keeps the assembly compact while still providing a dependable internal shoulder for retained parts. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
Internal circlips are installed into a groove inside a hole or housing. Once seated, the ring forms a stop that helps stop bearings, pulleys or bushes moving along the bore.
Common Applications
- Marine equipment housings
- Material handling equipment repairs
- Food processing machinery maintenance
- Machinery refurbishment projects

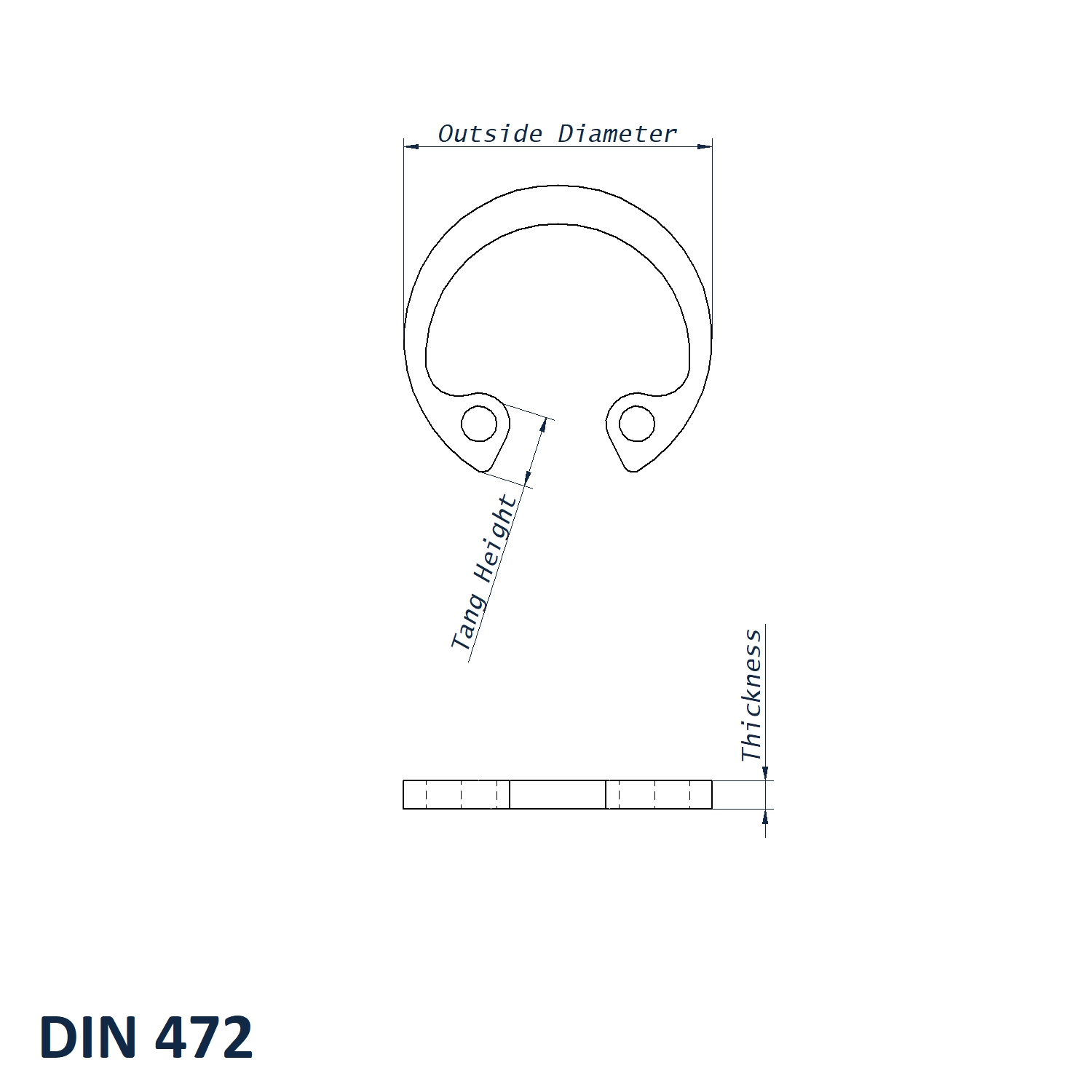

11mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 11mm
- Tang Height: 3.3mm
- Outside Diameter: 11.8mm
- Thickness: 1mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
