15mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.23 | £1.47 |
| 10 - 24 | £0.97 | £1.17 |
| 25 - 49 | £0.73 | £0.88 |
| 50 - 99 | £0.61 | £0.73 |
| 100 - 499 | £0.55 | £0.66 |
| 500 - 999 | £0.49 | £0.59 |
| 1000 + | £0.37 | £0.44 |
£1.47 / each
.png)
Product Specification
| For Bore Diameter | 15mm |
| Tang Height | 3.7mm |
| Outside Diameter | 16.2mm |
| Thickness | 1.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00

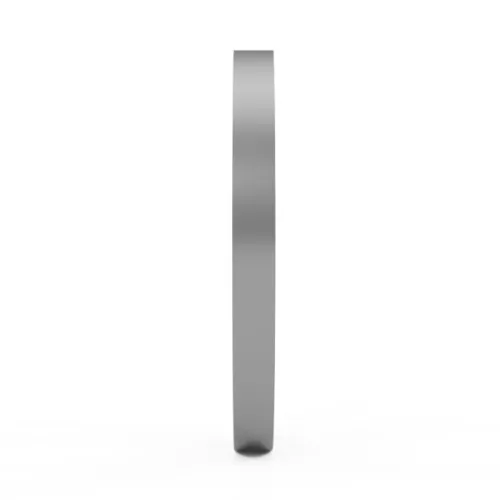

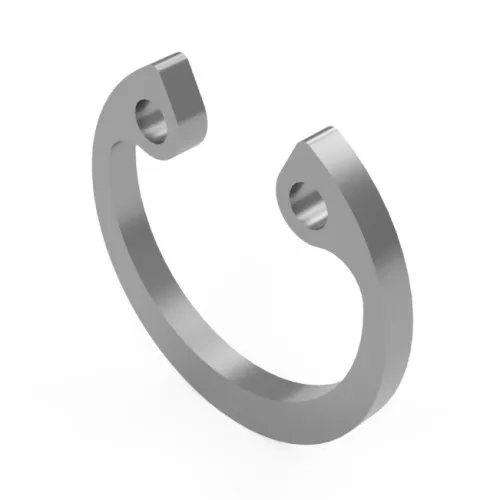

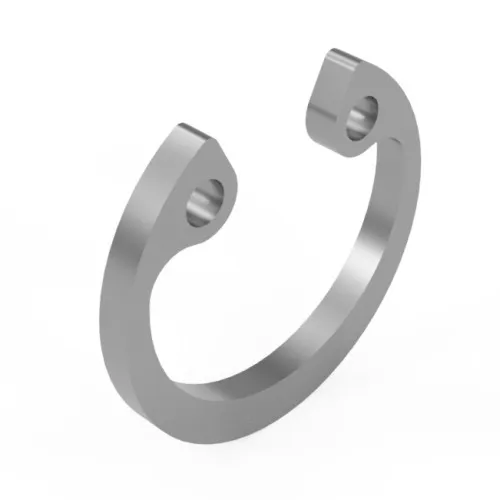

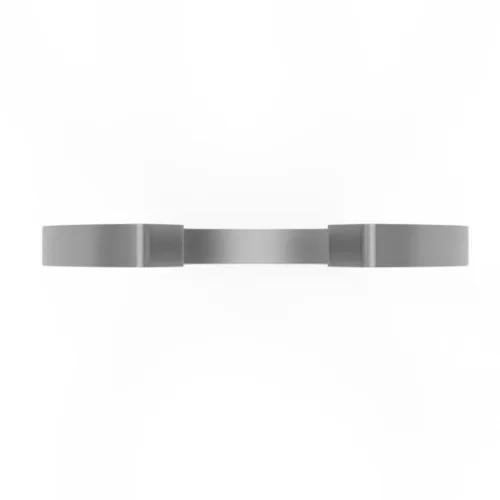

15mm Internal Circlip, 16.2mm OD, DIN 472, A2 Stainless
Suitable for electrical enclosure maintenance and production work, this 15mm DIN 472 Circlip is made for a 15mm bore where a removable retaining point is required.
Its self-colour A2 stainless steel construction helps maintain a clean finish while resisting corrosion better than plain carbon steel alternatives. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
The tangs provide tool access during installation. When compressed, the ring reduces in diameter so it can enter the bore before expanding back into the machined groove.
Common Applications
- Bore-mounted bearing retention
- Retaining internal components in control equipment
- Industrial fan and pulley assemblies
- Precision engineering component location
15mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 15mm
- Tang Height: 3.7mm
- Outside Diameter: 16.2mm
- Thickness: 1mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
