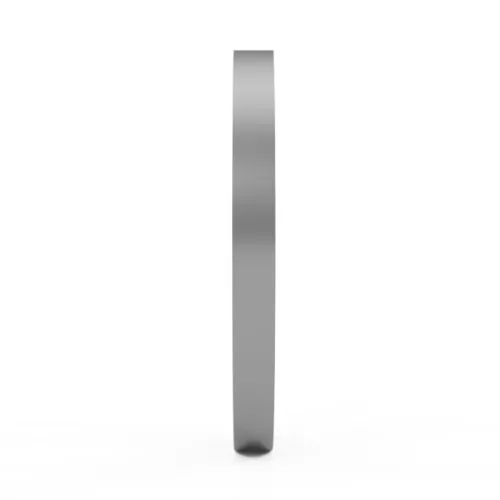

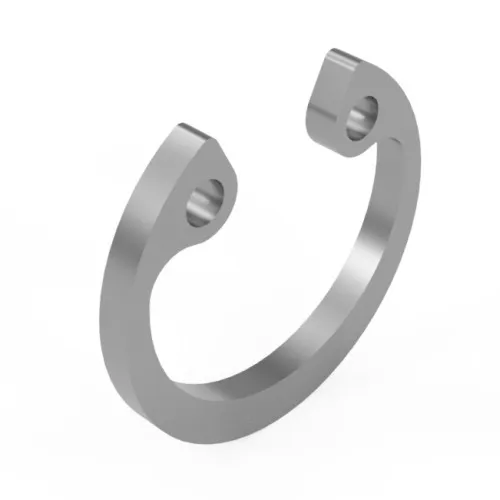

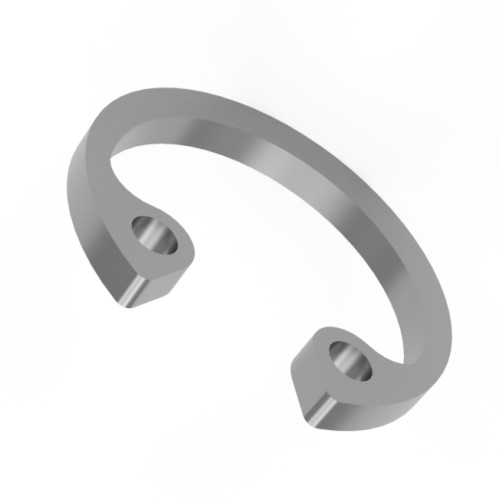

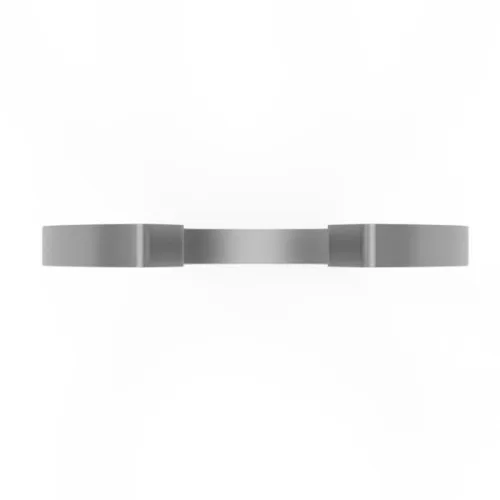

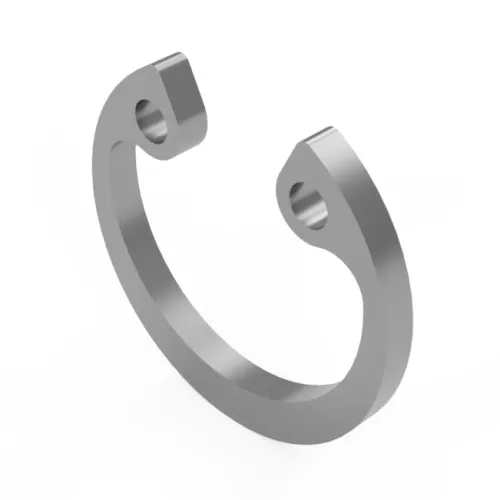

23mm Internal Circlip DIN 472 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.41 | £2.89 |
| 10 - 24 | £1.93 | £2.31 |
| 25 - 49 | £1.44 | £1.73 |
| 50 - 99 | £1.20 | £1.44 |
| 100 - 499 | £1.08 | £1.30 |
| 500 - 999 | £0.97 | £1.16 |
| 1000 + | £0.72 | £0.87 |
£2.89 / each
.png)
Product Specification
| For Bore Diameter | 23mm |
| Tang Height | 4.3mm |
| Outside Diameter | 24.6mm |
| Thickness | 1.20mm |
| Material | A2 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
23mm Internal Circlip, 24.6mm OD, DIN 472, A2 Stainless
Ideal for food processing assemblies, this 23mm Component Retaining Ring provides internal retention for bearings, spacers and sleeves inside a 23mm bore.
Because the ring sits inside the bore, it keeps the assembly compact while still providing a dependable internal shoulder for retained parts. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
The tangs provide tool access during installation. When compressed, the ring reduces in diameter so it can enter the bore before expanding back into the machined groove.
Common Applications
- Service replacement clips for workshop repairs
- Fabricated equipment with internal bores
- Trailer manufacture and repair work
- Rotating shaft support housings

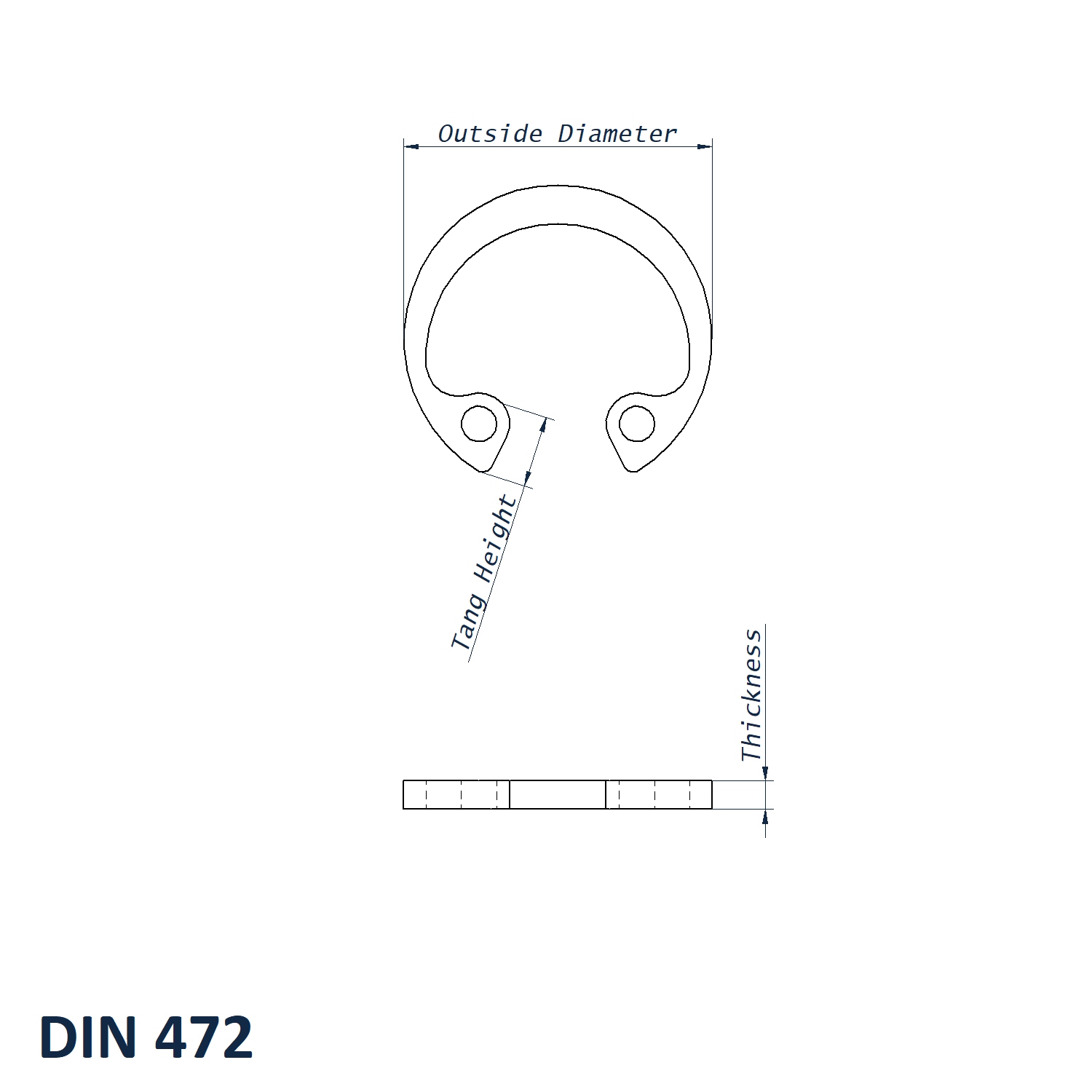

23mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 23mm
- Tang Height: 4.3mm
- Outside Diameter: 24.6mm
- Thickness: 1.20mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
