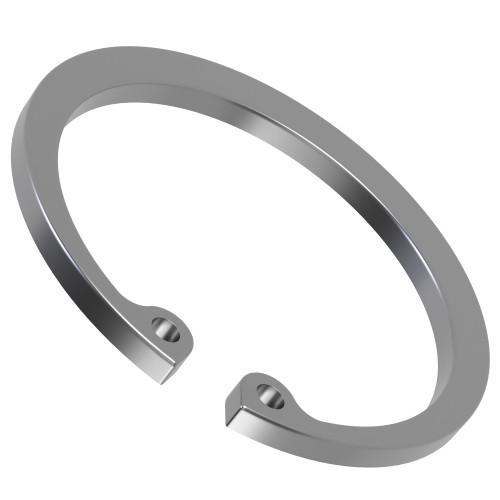

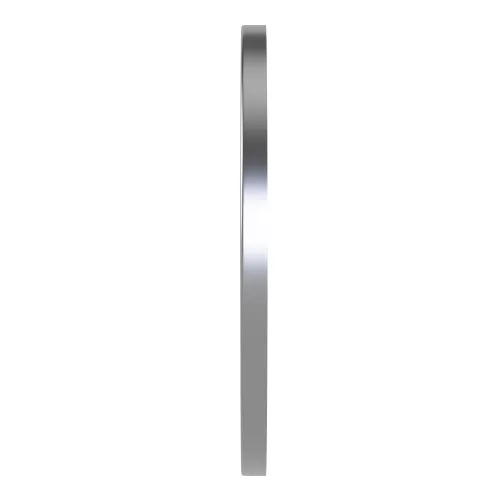

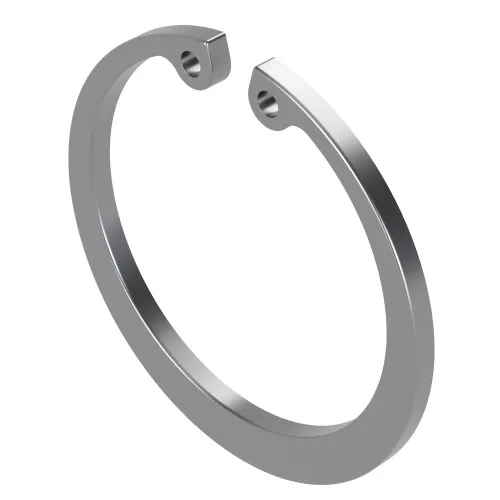

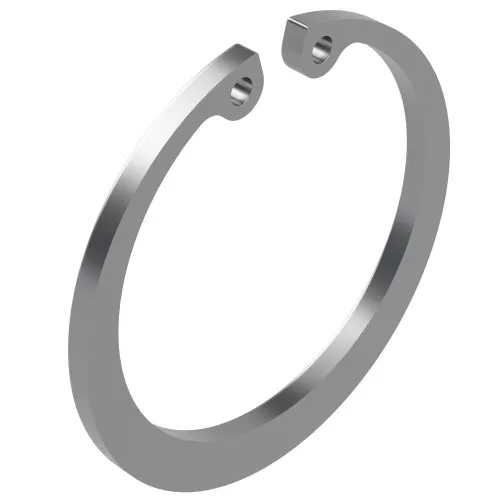

24mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.54 | £4.25 |
| 10 - 24 | £2.83 | £3.40 |
| 25 - 49 | £2.12 | £2.55 |
| 50 - 99 | £1.77 | £2.13 |
| 100 - 499 | £1.59 | £1.91 |
| 500 - 999 | £1.42 | £1.70 |
| 1000 + | £1.07 | £1.28 |
£4.25 / each
.png)
Product Specification
| For Bore Diameter | 24mm |
| Tang Height | 4.4mm |
| Outside Diameter | 25.9mm |
| Thickness | 1.20mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
24mm Internal Circlip, 25.9mm OD, DIN 472, A2 Stainless
Frequently specified for fabricated equipment with internal bores, this 24mm Stainless Internal Clip combines a 1.20mm section with a 4.4mm tang height for controlled installation.
For repair teams, this format allows worn or damaged clips to be replaced without redesigning the surrounding housing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
The ring should sit squarely in the groove with no twisting. A correctly installed circlip helps distribute retaining load evenly around the bore.
Common Applications
- Hydraulic cylinder component retention
- Commercial equipment refurbishment
- Motor rebuilds and servicing
- Retaining bearings inside electric motors
24mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 24mm
- Tang Height: 4.4mm
- Outside Diameter: 25.9mm
- Thickness: 1.20mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
Need help or buying in bulk? Call 01233 713581.
