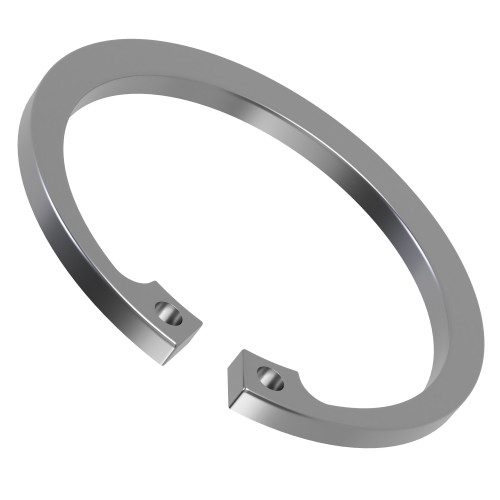

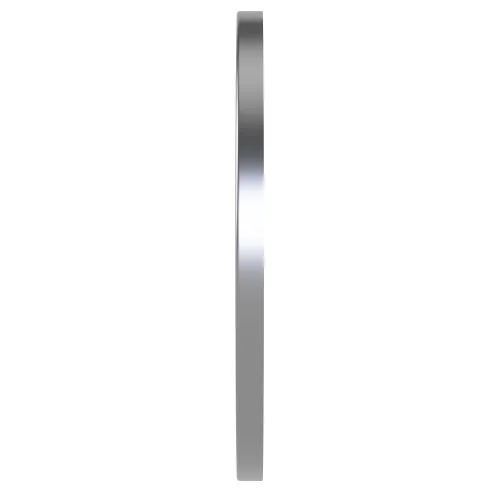

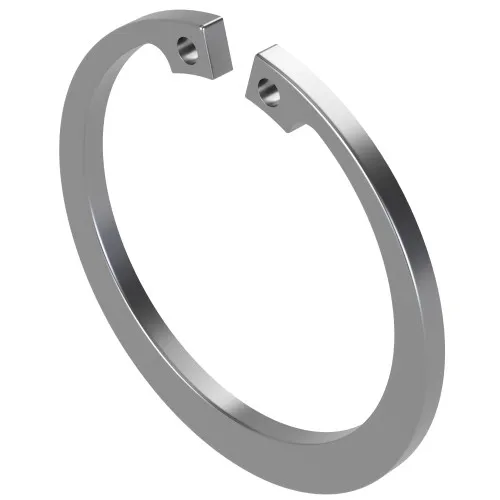

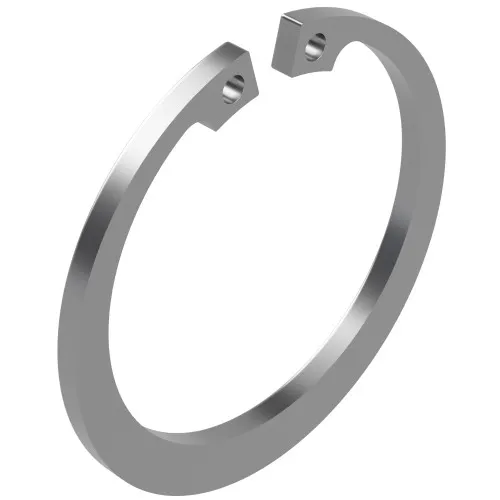

25mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.57 | £4.28 |
| 10 - 24 | £2.86 | £3.43 |
| 25 - 49 | £2.14 | £2.57 |
| 50 - 99 | £1.78 | £2.14 |
| 100 - 499 | £1.61 | £1.93 |
| 500 - 999 | £1.43 | £1.71 |
| 1000 + | £1.07 | £1.29 |
£4.28 / each
.png)
Product Specification
| For Bore Diameter | 25mm |
| Tang Height | 4.5mm |
| Outside Diameter | 26.9mm |
| Thickness | 1.20mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
25mm Internal Circlip, 26.9mm OD, DIN 472, A2 Stainless
Providing a compact retaining solution for OEM manufacture, this 25mm Internal Circlip is sized for 25mm bores and manufactured with a 26.9mm outside diameter.
A2 stainless steel is suitable for many general engineering settings where moisture, handling and light contaminants may be present. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
Correct groove sizing is important for reliable retention. The circlip should be compressed with suitable circlip pliers, positioned in the groove and checked for full seating before the assembly is loaded.
Common Applications
- Machine guard hinge and pivot assemblies
- Access panel hinge mechanisms
- Bore-mounted bearing retention
- Retaining internal components in control equipment

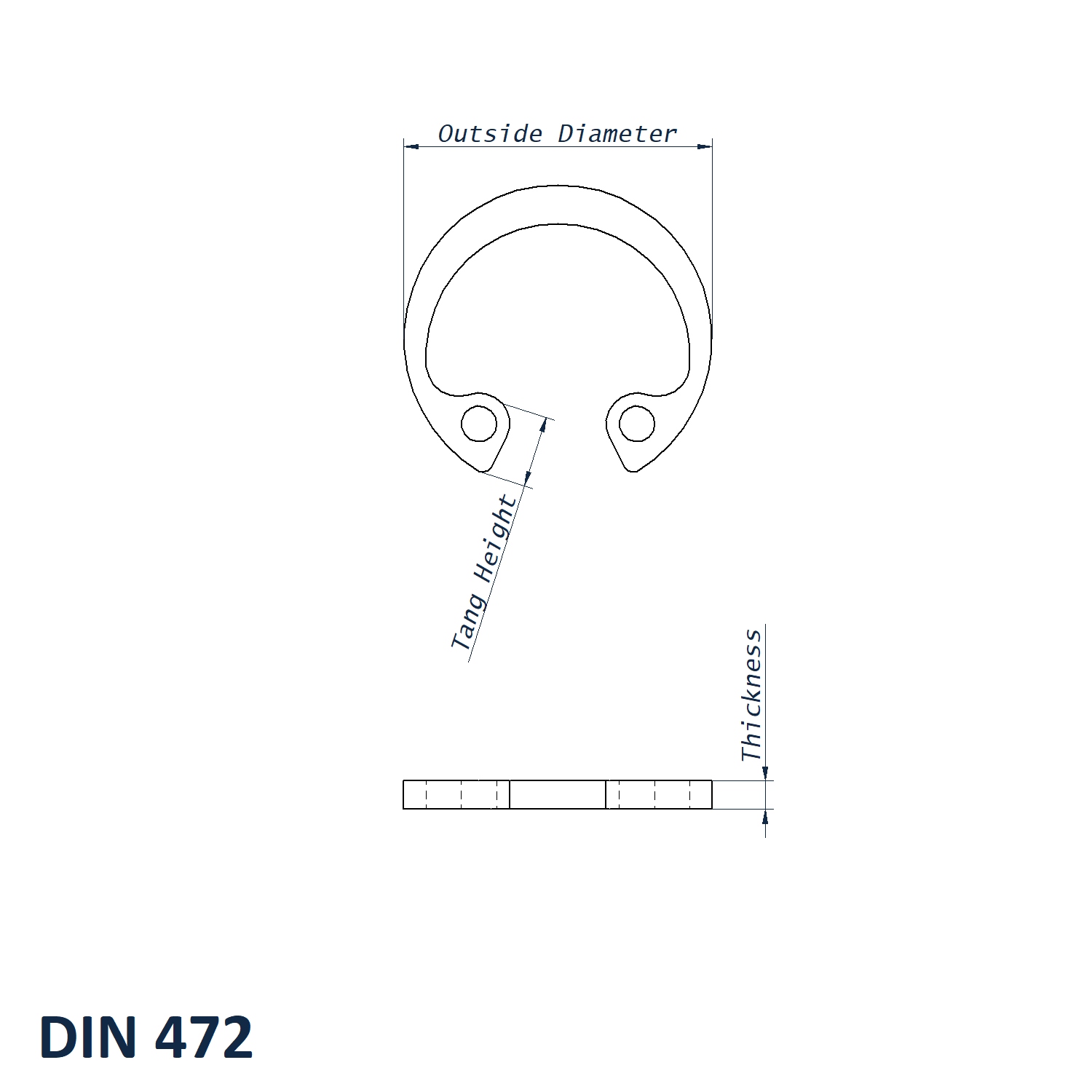

25mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 25mm
- Tang Height: 4.5mm
- Outside Diameter: 26.9mm
- Thickness: 1.20mm
- Material: A2 Stainless Steel
- Standard: DIN 472
