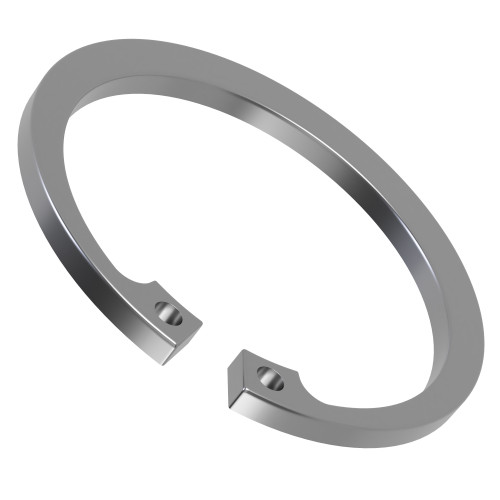

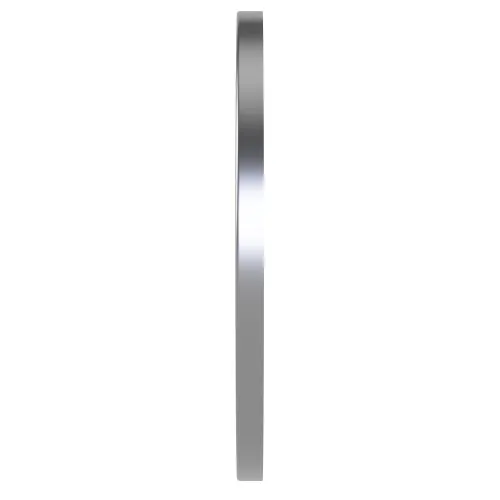

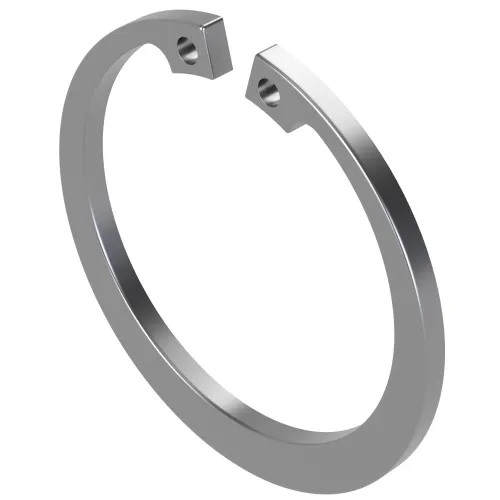

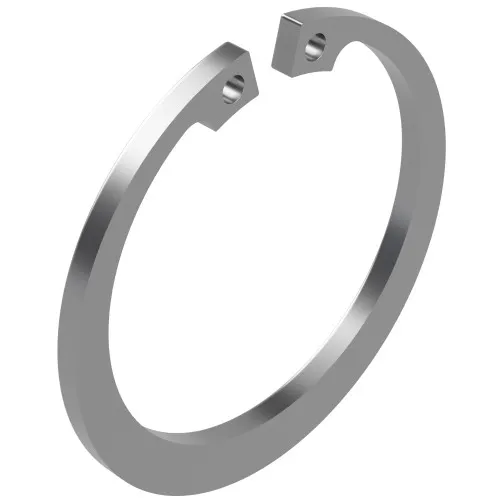

30mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.04 | £2.45 |
| 10 - 24 | £1.36 | £1.63 |
| 25 - 49 | £1.02 | £1.22 |
| 50 - 99 | £0.95 | £1.14 |
| 100 + | £0.85 | £1.02 |
£2.45 / each
.png)
Product Specification
| For Bore Diameter | 30mm |
| Tang Height | 4.8mm |
| Outside Diameter | 32.1mm |
| Thickness | 1.20mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
30mm Internal Circlip, 32.1mm OD, DIN 472, A2 Stainless
Developed for assemblies where access is limited, this 30mm Bore Retaining Ring fits inside a 30mm bore and retains components without adding external fixings.
For repair teams, this format allows worn or damaged clips to be replaced without redesigning the surrounding housing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
Unlike external circlips, which fit around a shaft, an internal circlip expands into a bore groove. This makes it suitable for retaining parts inside housings, cylinders and machined recesses.
Common Applications
- Automotive gearbox and brake assemblies
- Machine guard hinge and pivot assemblies
- Access panel hinge mechanisms
- Bore-mounted bearing retention
30mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 30mm
- Tang Height: 4.8mm
- Outside Diameter: 32.1mm
- Thickness: 1.20mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
