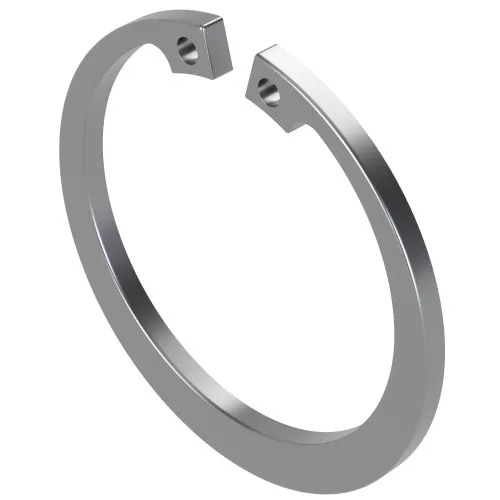

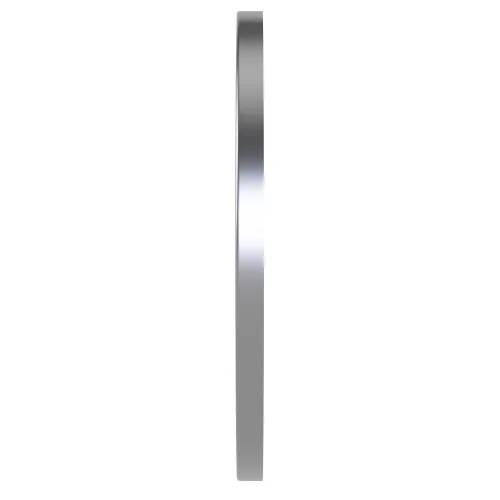

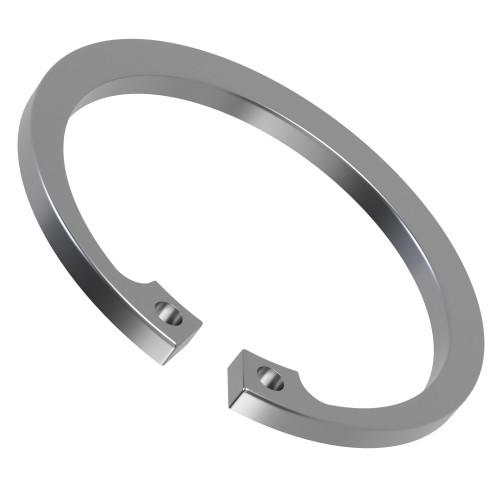

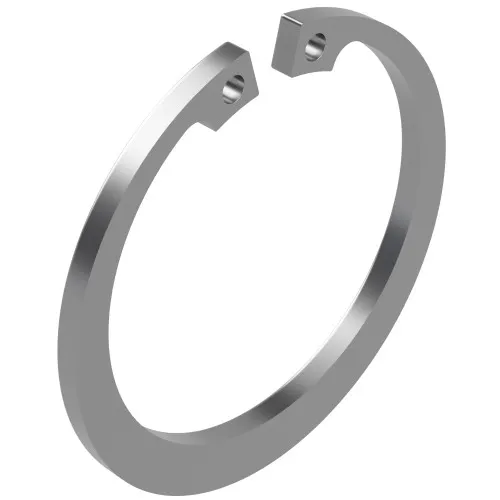

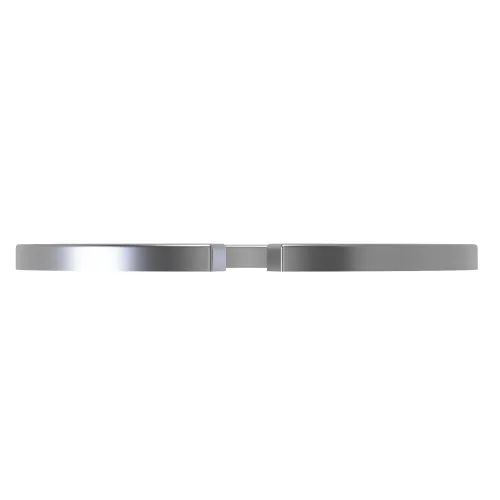

33mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.49 | £2.99 |
| 10 - 24 | £1.66 | £1.99 |
| 25 - 49 | £1.24 | £1.49 |
| 50 - 99 | £1.16 | £1.39 |
| 100 + | £1.04 | £1.25 |
£2.99 / each
.png)
Product Specification
| For Bore Diameter | 33mm |
| Tang Height | 5.4mm |
| Outside Diameter | 35.5mm |
| Thickness | 1.20mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
33mm Internal Circlip, 35.5mm OD, DIN 472, A2 Stainless
Designed for agricultural machinery maintenance, this 33mm Housing Retaining Ring suits a 33mm bore and has a 35.5mm outside diameter for accurate seating inside a machined groove.
Its self-colour A2 stainless steel construction helps maintain a clean finish while resisting corrosion better than plain carbon steel alternatives. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
Correct groove sizing is important for reliable retention. The circlip should be compressed with suitable circlip pliers, positioned in the groove and checked for full seating before the assembly is loaded.
Common Applications
- Food processing machinery maintenance
- Machinery refurbishment projects
- Service replacement clips for workshop repairs
- Fabricated equipment with internal bores

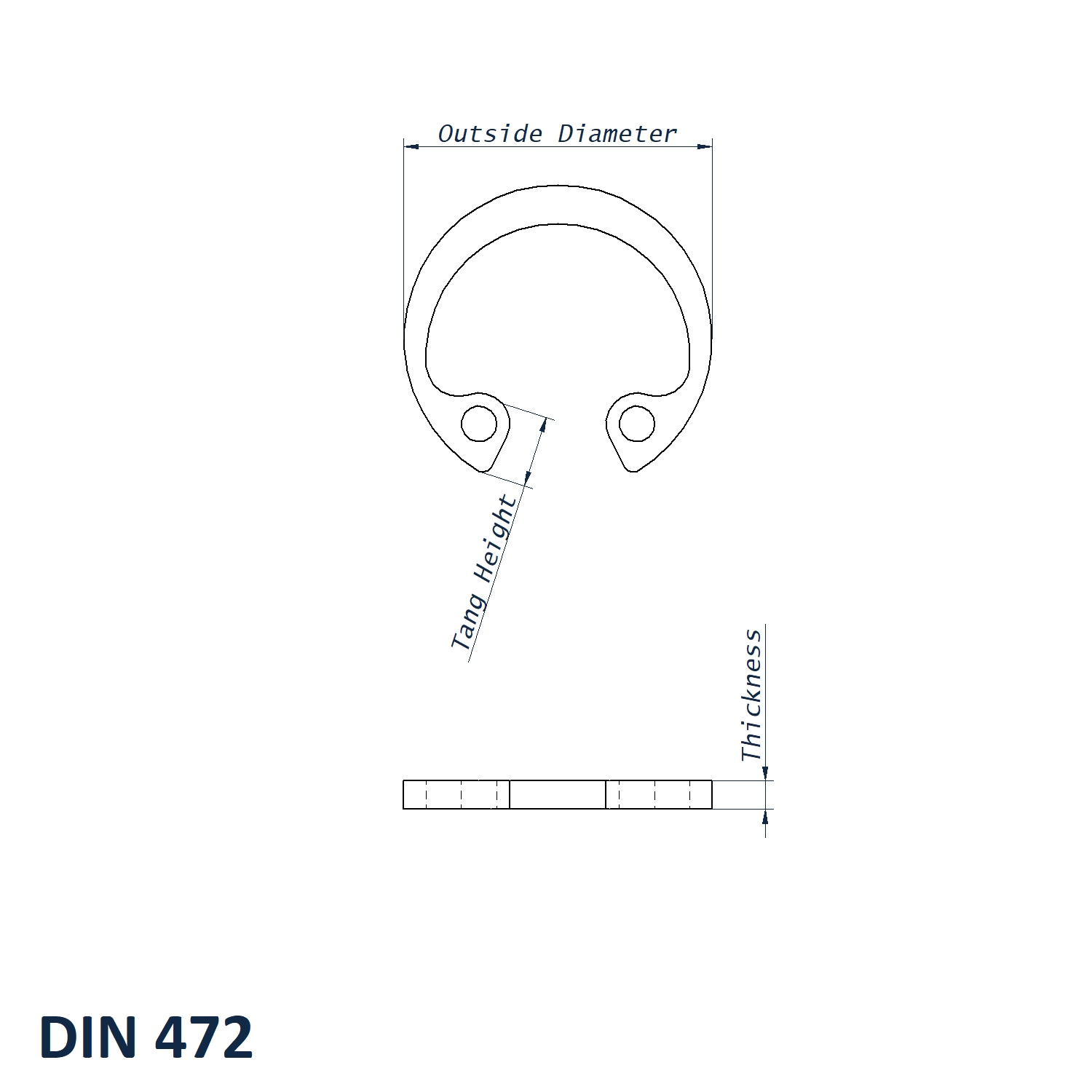

33mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 33mm
- Tang Height: 5.4mm
- Outside Diameter: 35.5mm
- Thickness: 1.20mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
