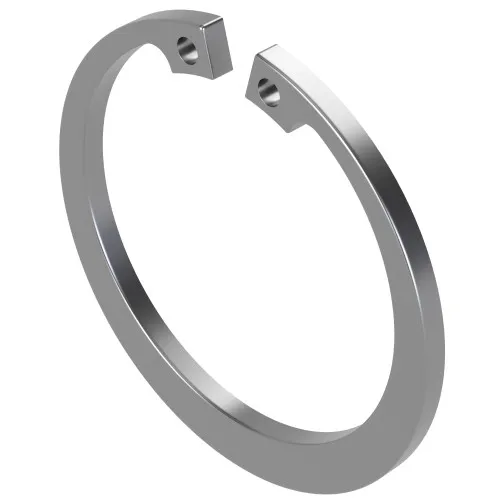

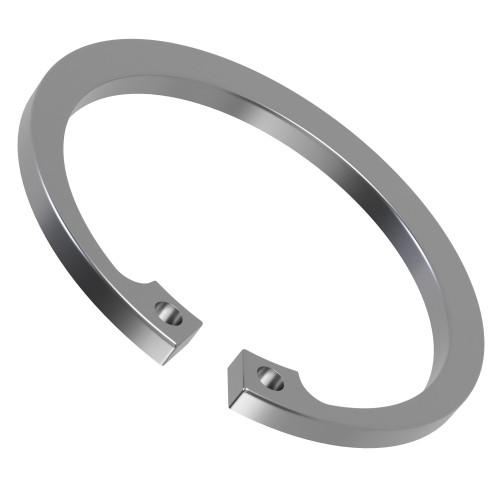

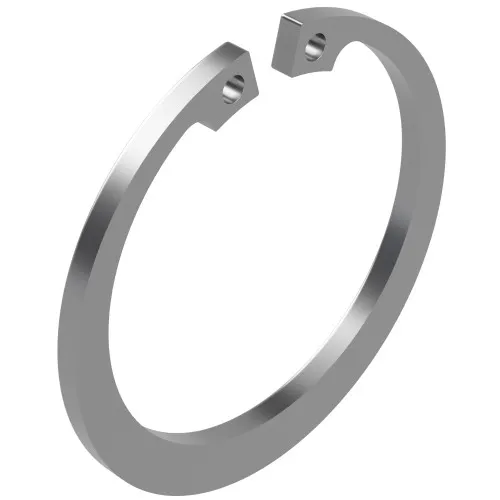

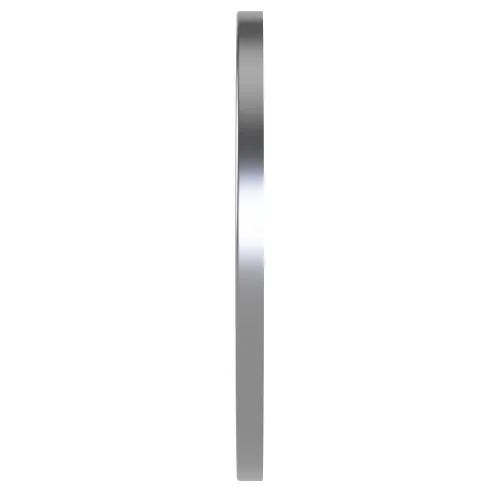

38mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.42 | £4.11 |
| 10 - 24 | £2.28 | £2.74 |
| 25 - 49 | £1.72 | £2.06 |
| 50 - 99 | £1.60 | £1.92 |
| 100 + | £1.43 | £1.71 |
£4.11 / each
.png)
Product Specification
| For Bore Diameter | 38mm |
| Tang Height | 5.5mm |
| Outside Diameter | 40.8mm |
| Thickness | 1.50mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
38mm Internal Circlip, 40.8mm OD, DIN 472, A2 Stainless
Commonly used within access panel hinge mechanisms, this 38mm Bore Circlip helps prevent axial movement once fitted into a correctly machined internal groove.
This style is selected when the fixing needs to sit within the bore rather than around a shaft, keeping the external face of the assembly clear. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
Unlike external circlips, which fit around a shaft, an internal circlip expands into a bore groove. This makes it suitable for retaining parts inside housings, cylinders and machined recesses.
Common Applications
- Material handling equipment repairs
- Food processing machinery maintenance
- Machinery refurbishment projects
- Service replacement clips for workshop repairs
38mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 38mm
- Tang Height: 5.5mm
- Outside Diameter: 40.8mm
- Thickness: 1.50mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
