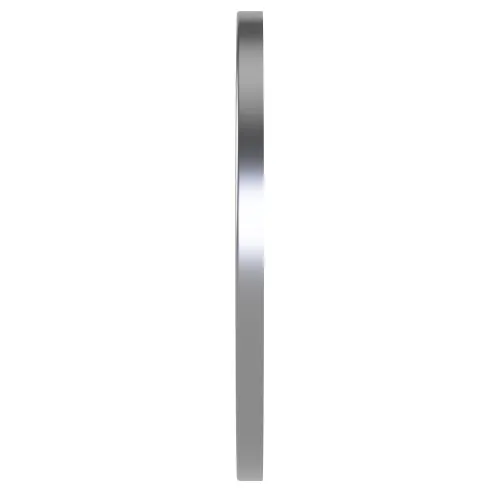

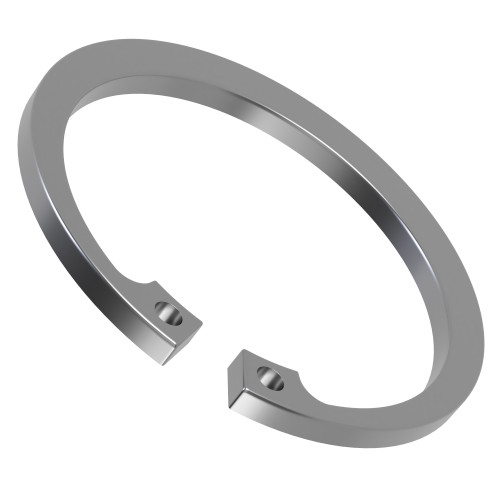

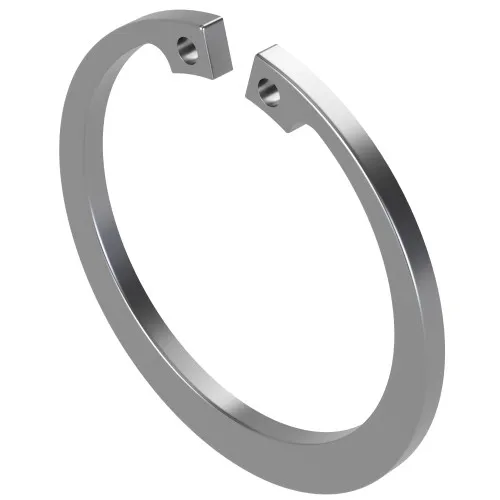

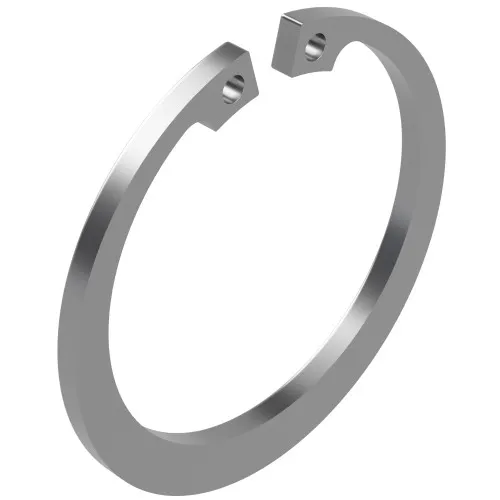

42mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.14 | £7.37 |
| 10 - 24 | £4.09 | £4.91 |
| 25 - 49 | £3.08 | £3.69 |
| 50 - 99 | £2.87 | £3.44 |
| 100 + | £2.56 | £3.07 |
£7.37 / each
.png)
Product Specification
| For Bore Diameter | 42mm |
| Tang Height | 5.9mm |
| Outside Diameter | 45.5mm |
| Thickness | 1.75mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
42mm Internal Circlip, 45.5mm OD, DIN 472, A2 Stainless
Developed for assemblies where access is limited, this 42mm Retaining Ring for Bores fits inside a 42mm bore and retains components without adding external fixings.
For repair teams, this format allows worn or damaged clips to be replaced without redesigning the surrounding housing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
For replacement work, the bore diameter and outside diameter should be checked against the existing groove. This helps prevent loose fitment or overstressing during installation.
Common Applications
- Retaining internal components in control equipment
- Industrial fan and pulley assemblies
- Precision engineering component location
- Gear case component retention
42mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 42mm
- Tang Height: 5.9mm
- Outside Diameter: 45.5mm
- Thickness: 1.75mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
