44mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.64 | £6.77 |
| 10 - 24 | £3.76 | £4.51 |
| 25 - 49 | £2.82 | £3.38 |
| 50 - 99 | £2.63 | £3.16 |
| 100 + | £2.35 | £2.82 |
£6.77 / each
Product Specification
| For Bore Diameter | 44mm |
| Tang Height | 6mm |
| Outside Diameter | 47.5mm |
| Thickness | 1.75mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00

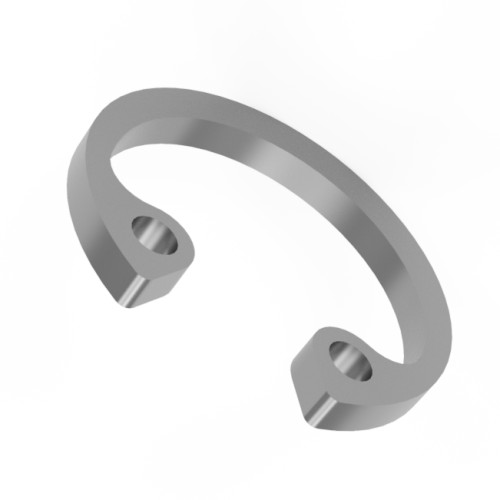

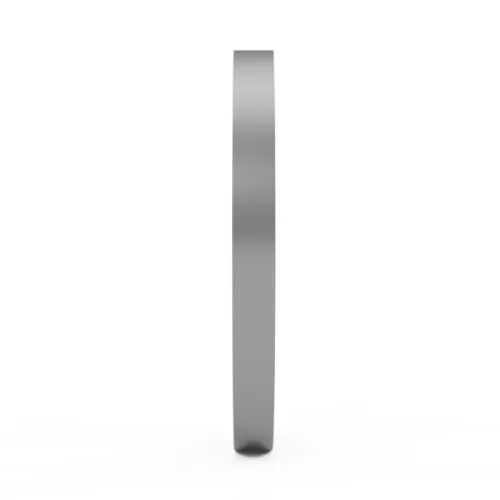

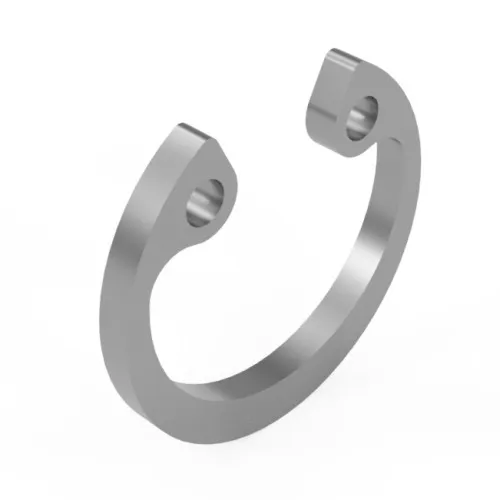

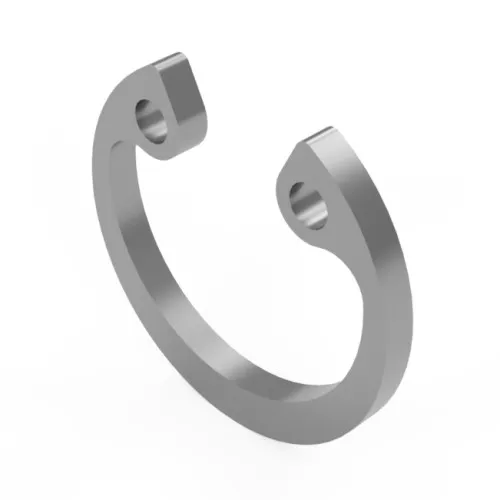

44mm Internal Circlip, 47.5mm OD, DIN 472, A2 Stainless
Built for controlled internal retention, this 44mm Circlip for Bores supports signage and display applications where bearings or bushes must remain axially located.
This style is selected when the fixing needs to sit within the bore rather than around a shaft, keeping the external face of the assembly clear. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
This DIN 472 form is intended for internal use in bores. It gives engineers a removable retaining method that can be serviced with the correct pliers rather than drilled out or permanently fixed.
Common Applications
- Production line maintenance spares
- Electrical enclosure mechanical fittings
- General engineering stores and spares
- Maintaining bearing position in conveyor rollers

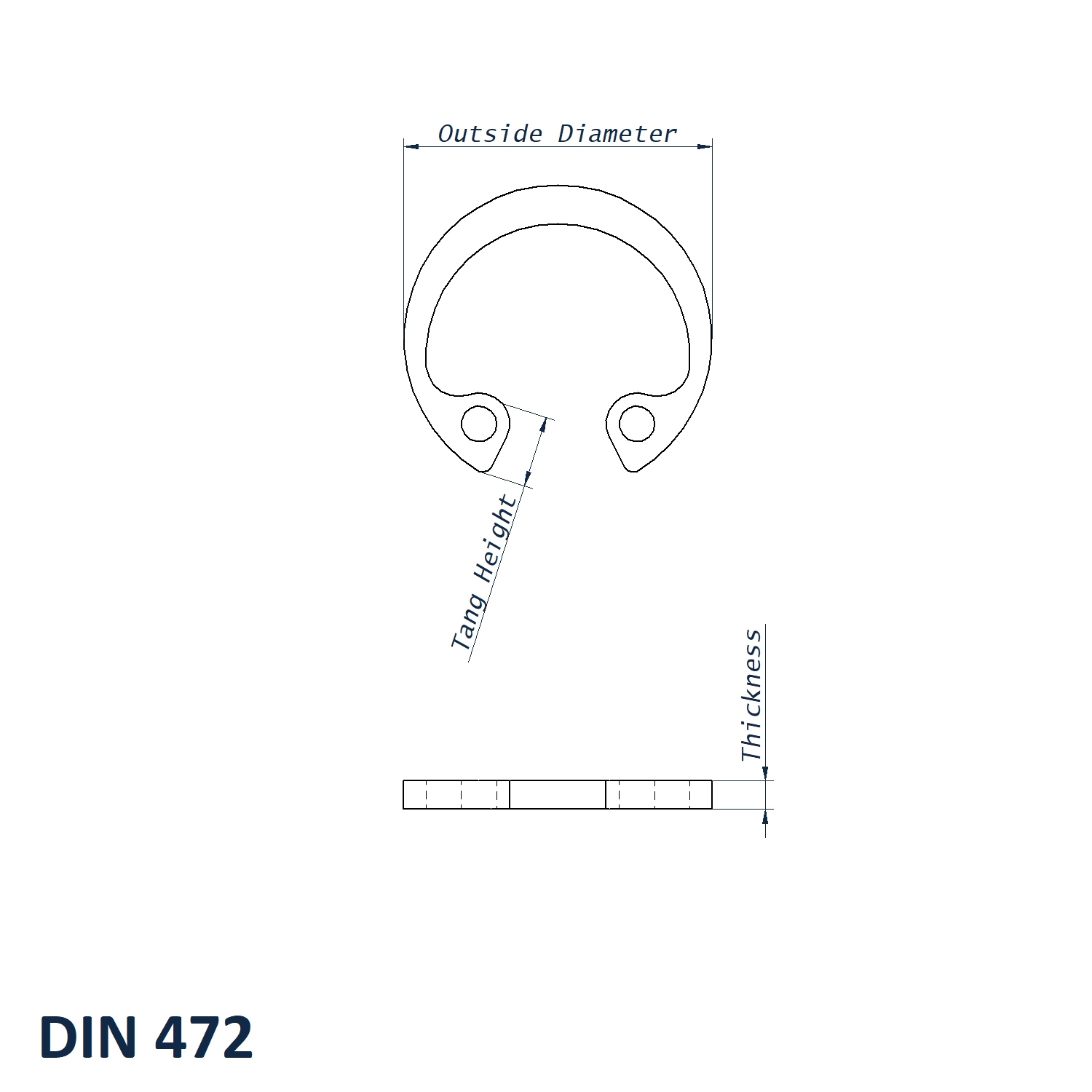

44mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 44mm
- Tang Height: 6mm
- Outside Diameter: 47.5mm
- Thickness: 1.75mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
