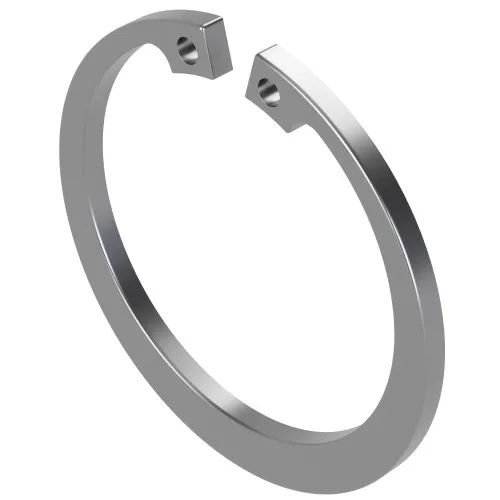

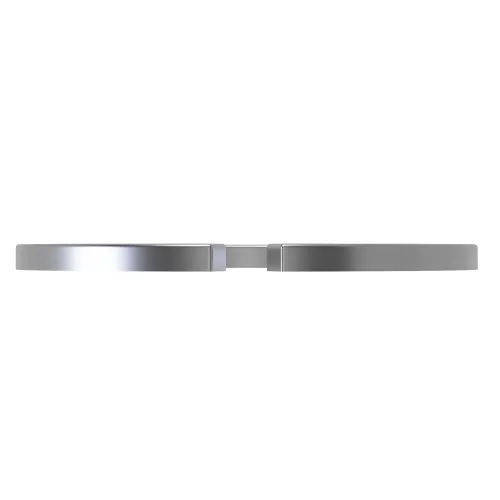

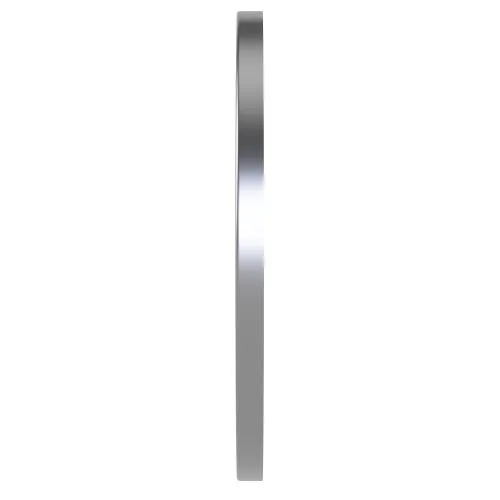

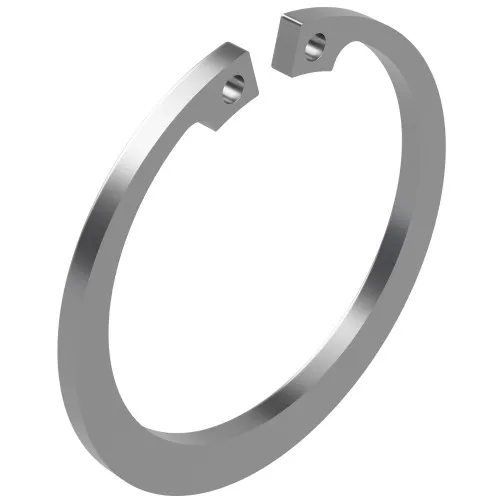

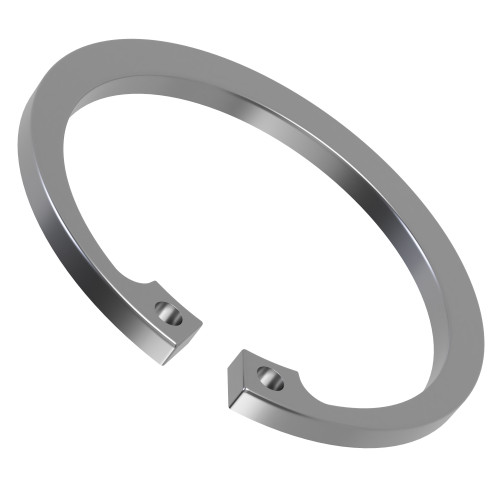

50mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
Product code:
CCLIP472-50-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.69 | £6.83 |
| 10 - 24 | £3.79 | £4.55 |
| 25 - 49 | £2.84 | £3.41 |
| 50 - 99 | £2.66 | £3.19 |
| 100 + | £2.37 | £2.84 |
£6.83
£6.83 / each
Up to 159 units
Available
.png)
Order now for dispatch within 2 days.
Up to 984 units
Available
Order now for dispatch within 5 days.
984 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.
Product Specification
| For Bore Diameter | 50mm |
| Tang Height | 6.5mm |
| Outside Diameter | 54.2mm |
| Thickness | 2.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
50mm Internal Circlip, 54.2mm OD, DIN 472, A2 Stainless
Frequently specified for hvac equipment drive assemblies, this 50mm Internal C Clip combines a 2mm section with a 6.5mm tang height for controlled installation.
For repair teams, this format allows worn or damaged clips to be replaced without redesigning the surrounding housing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
The ring should sit squarely in the groove with no twisting. A correctly installed circlip helps distribute retaining load evenly around the bore.
Common Applications
- Securing sleeves in pump bodies
- Marine equipment housings
- Material handling equipment repairs
- Food processing machinery maintenance

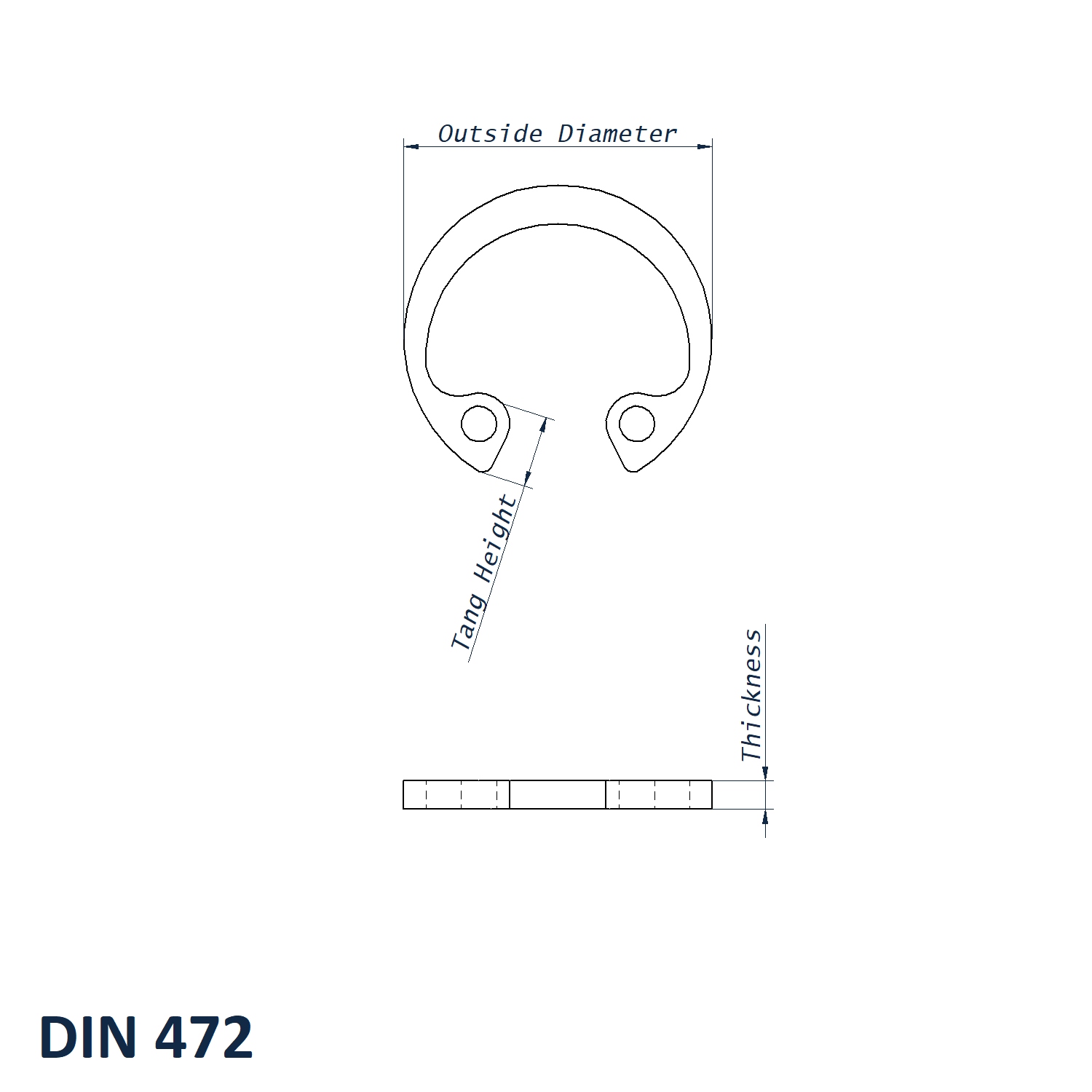

50mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 50mm
- Tang Height: 6.5mm
- Outside Diameter: 54.2mm
- Thickness: 2mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
