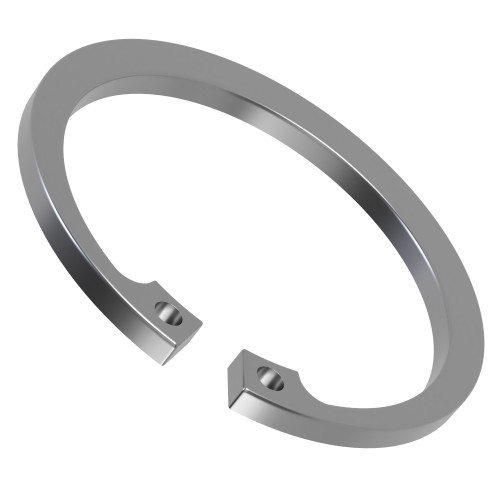

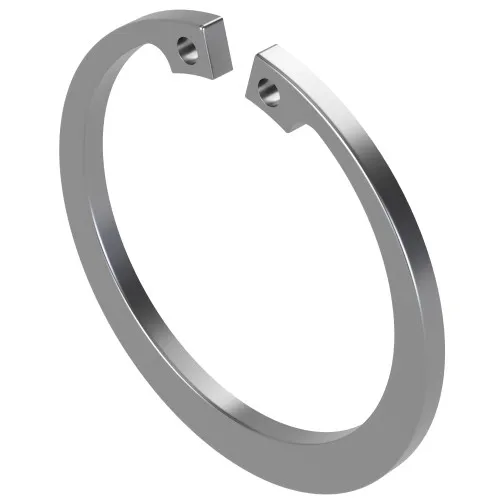

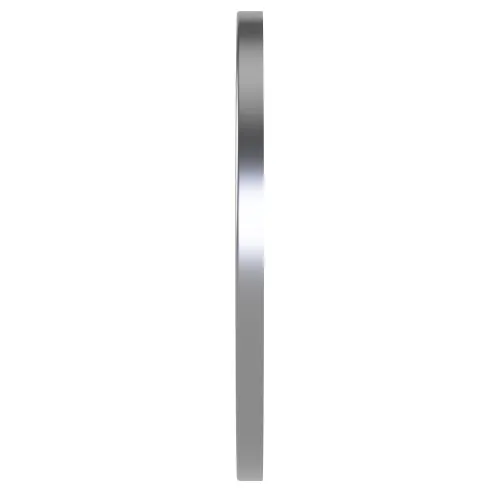

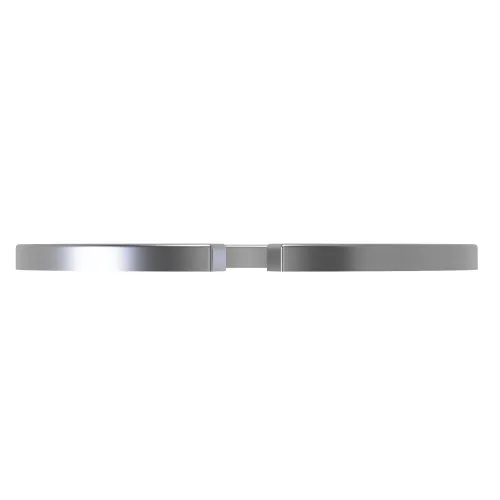

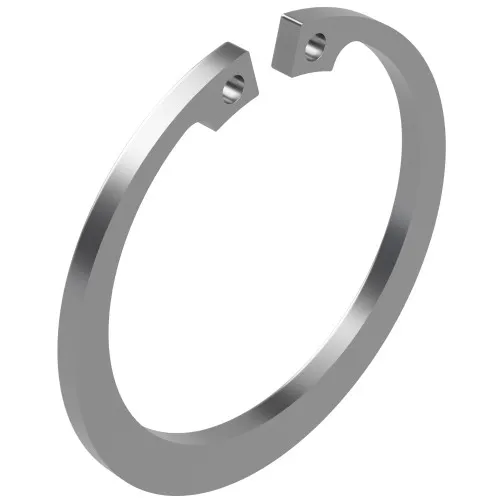

58mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £8.69 | £10.43 |
| 10 - 24 | £5.80 | £6.96 |
| 25 - 49 | £4.35 | £5.22 |
| 50 - 99 | £4.06 | £4.87 |
| 100 + | £3.62 | £4.35 |
£10.43 / each
.png)
Product Specification
| For Bore Diameter | 58mm |
| Tang Height | 6.9mm |
| Outside Diameter | 62.2mm |
| Thickness | 2.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
58mm Internal Circlip, 62.2mm OD, DIN 472, A2 Stainless
Suitable for precision machining maintenance and production work, this 58mm Bearing Retaining Clip is made for a 58mm bore where a removable retaining point is required.
Its self-colour A2 stainless steel construction helps maintain a clean finish while resisting corrosion better than plain carbon steel alternatives. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
Internal circlips are installed into a groove inside a hole or housing. Once seated, the ring forms a stop that helps stop bearings, pulleys or bushes moving along the bore.
Common Applications
- Commercial equipment refurbishment
- Motor rebuilds and servicing
- Retaining bearings inside electric motors
- OEM mechanical assemblies with bore grooves

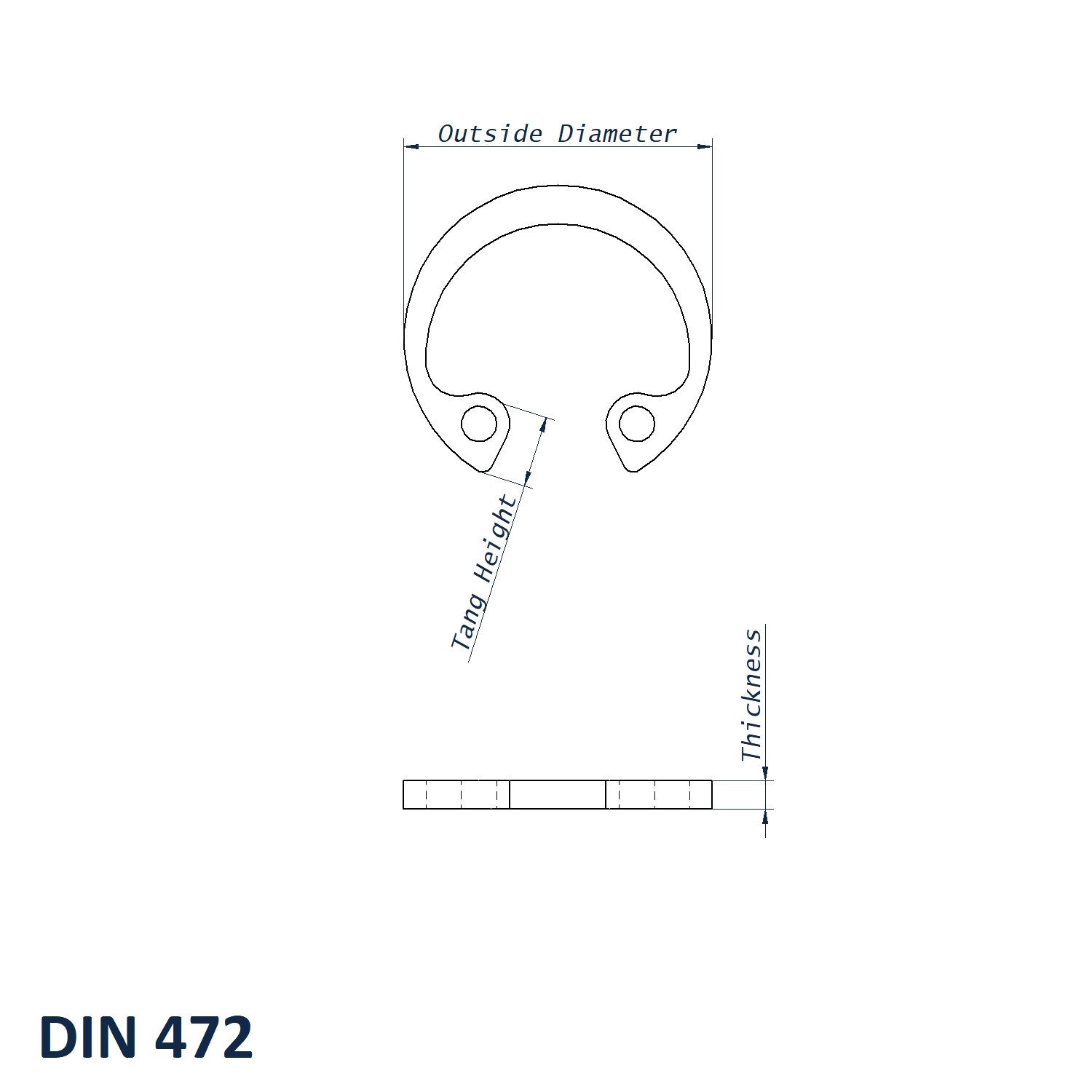

58mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 58mm
- Tang Height: 6.9mm
- Outside Diameter: 62.2mm
- Thickness: 2mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
