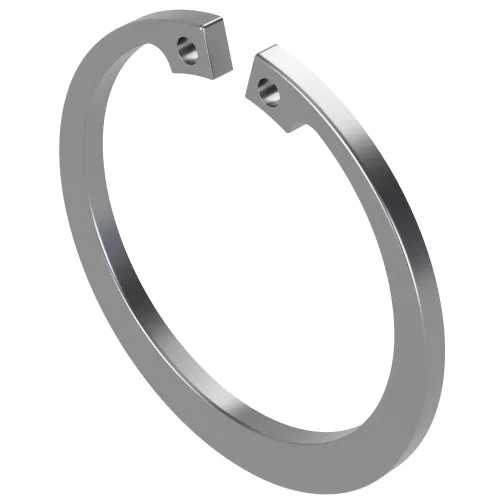

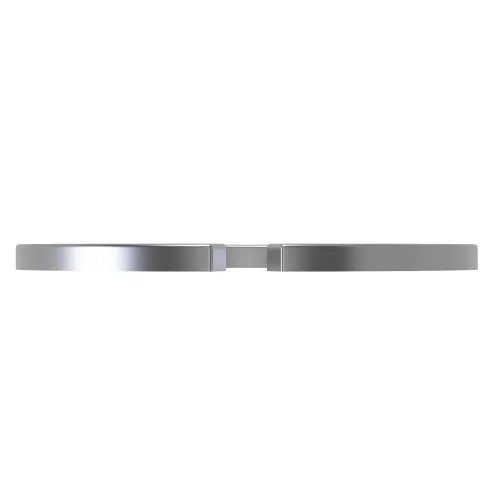

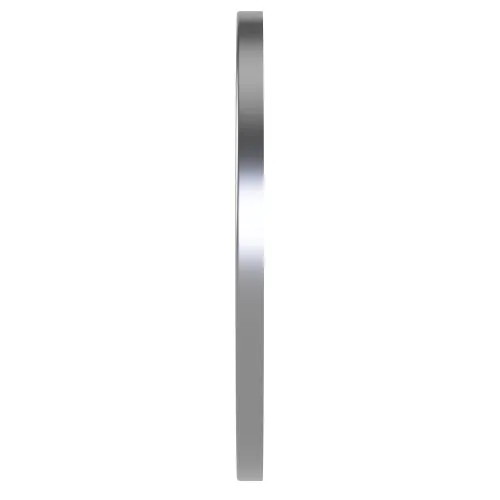

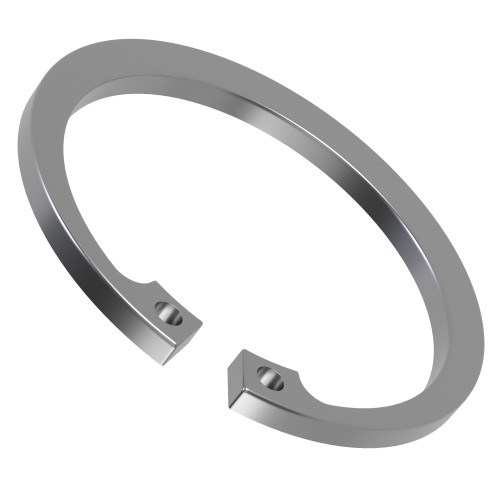

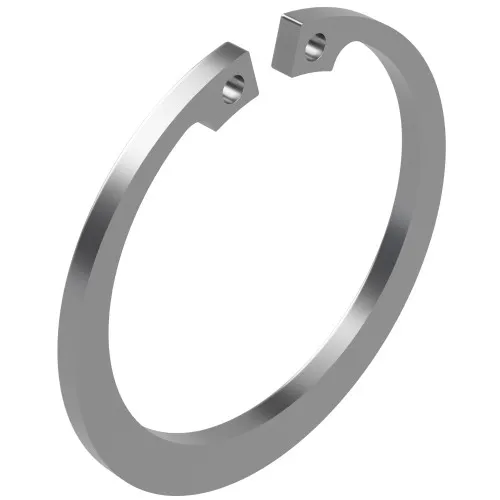

90mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £13.61 | £16.33 |
| 10 - 24 | £10.21 | £12.25 |
| 25 - 49 | £8.84 | £10.61 |
| 50 - 99 | £8.17 | £9.80 |
| 100 + | £7.48 | £8.98 |
£16.33 / each
.png)

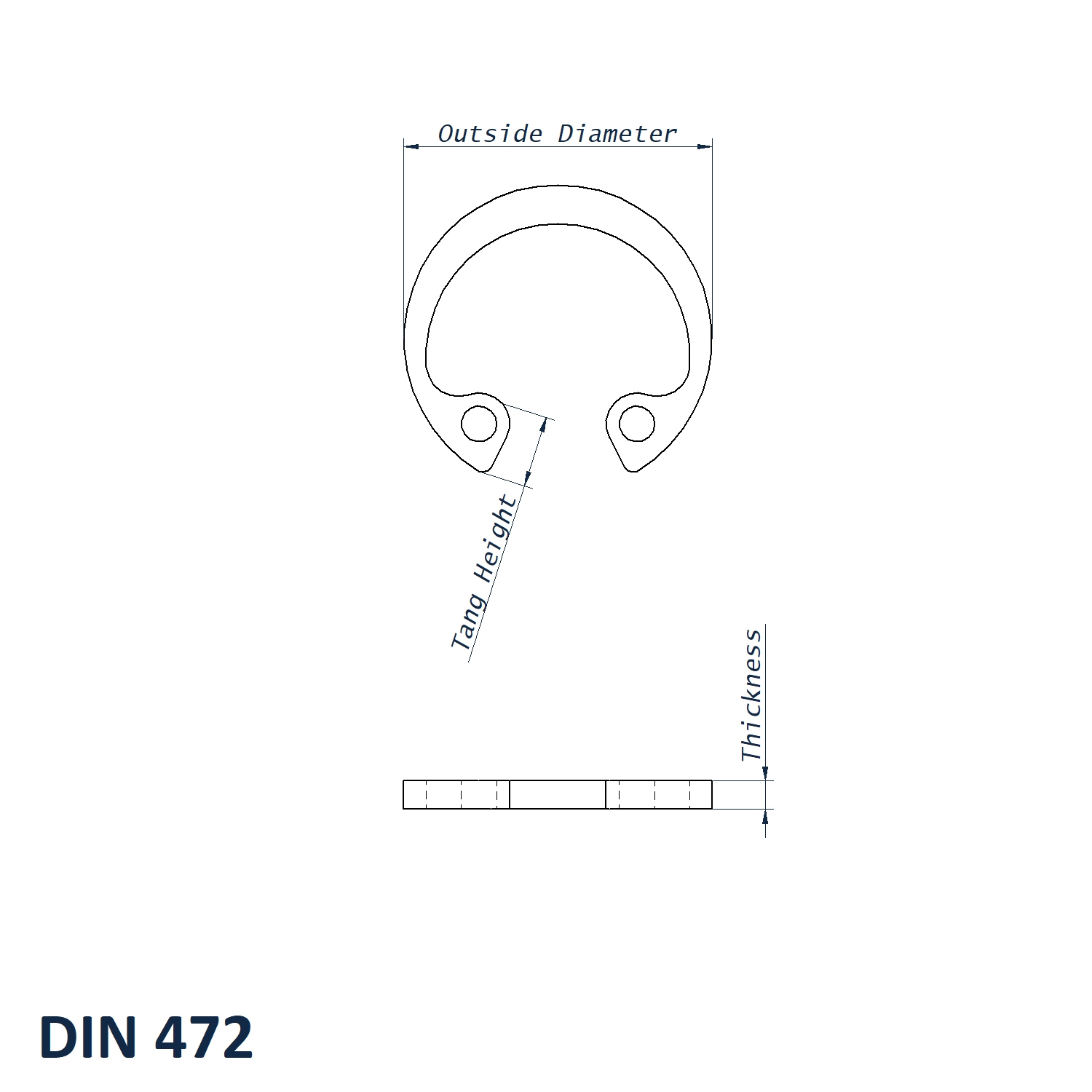

Product Specification
| For Bore Diameter | 90mm |
| Tang Height | 8.6mm |
| Outside Diameter | 95.5mm |
| Thickness | 3.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
90mm Internal Circlip, 95.5mm OD, DIN 472, A2 Stainless
Suitable for electrical enclosure maintenance and production work, this 90mm DIN 472 Circlip is made for a 90mm bore where a removable retaining point is required.
Its self-colour A2 stainless steel construction helps maintain a clean finish while resisting corrosion better than plain carbon steel alternatives. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
The tangs provide tool access during installation. When compressed, the ring reduces in diameter so it can enter the bore before expanding back into the machined groove.
Common Applications
- Packaging machinery bearing retention
- HVAC equipment drive assemblies
- Inspection jig and fixture assemblies
- Securing sleeves in pump bodies
90mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 90mm
- Tang Height: 8.6mm
- Outside Diameter: 95.5mm
- Thickness: 3mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
