34.9mm Liquid Tight Blanking Plug - 3.2mm Panel | TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.65 | £1.98 |
| 250 - 499 | £1.57 | £1.88 |
| 500 - 999 | £1.40 | £1.68 |
| 1000 - 2499 | £1.25 | £1.50 |
| 2500 + | £1.16 | £1.39 |
Product Specification
| Mounting Hole Diameter | 34.9mm |
| Panel Thickness | 3.2mm |
| Material | TPE |
| Head Diameter | 45.2mm |
| Shore Hardness | 75 |
| Head Thickness | 10.7mm |
| Overall Height | 14.3mm |
| Flammability Rating | UL94 V-0 |
| Colour | Grey |
Frequently Bought Together
Total Price: £0.00
34.9mm Grey Liquid Tight Blanking Plug | 3.2mm Panel | TPE
Designed for 34.9mm mounting holes, this grey grey TPE sealing plug provides a flexible TPE seal for oversized enclosure knock-outs. The 45.2mm head diameter and 14.3mm overall height give clear coverage over the panel face, making it suitable for outdoor electrical installations where unused holes need dependable protection.
The grey TPE finish is useful for cabinet builds where a darker black cap would stand out too much against the surrounding equipment. This SKU is built around secure environmental protection, with UL94 V-0 flammability performance and a temperature-capable material used across liquid tight blanking plug applications.
What Are Liquid Tight Blanking Plugs?
Liquid tight blanking plugs are flexible sealing plugs used to close unused panel holes, cable entry points and access openings. Their tapered push-fit design helps create a water, oil and dust resistant barrier, making them suitable for enclosures, equipment housings and outdoor installations where a standard plastic blanking plug may not provide enough sealing performance.
Common Applications
- Protecting large grey panel openings
- Sealing redundant knock-outs on outdoor equipment
- Finishing access points on electrical housings
- Supporting weather-resistant cabinet builds

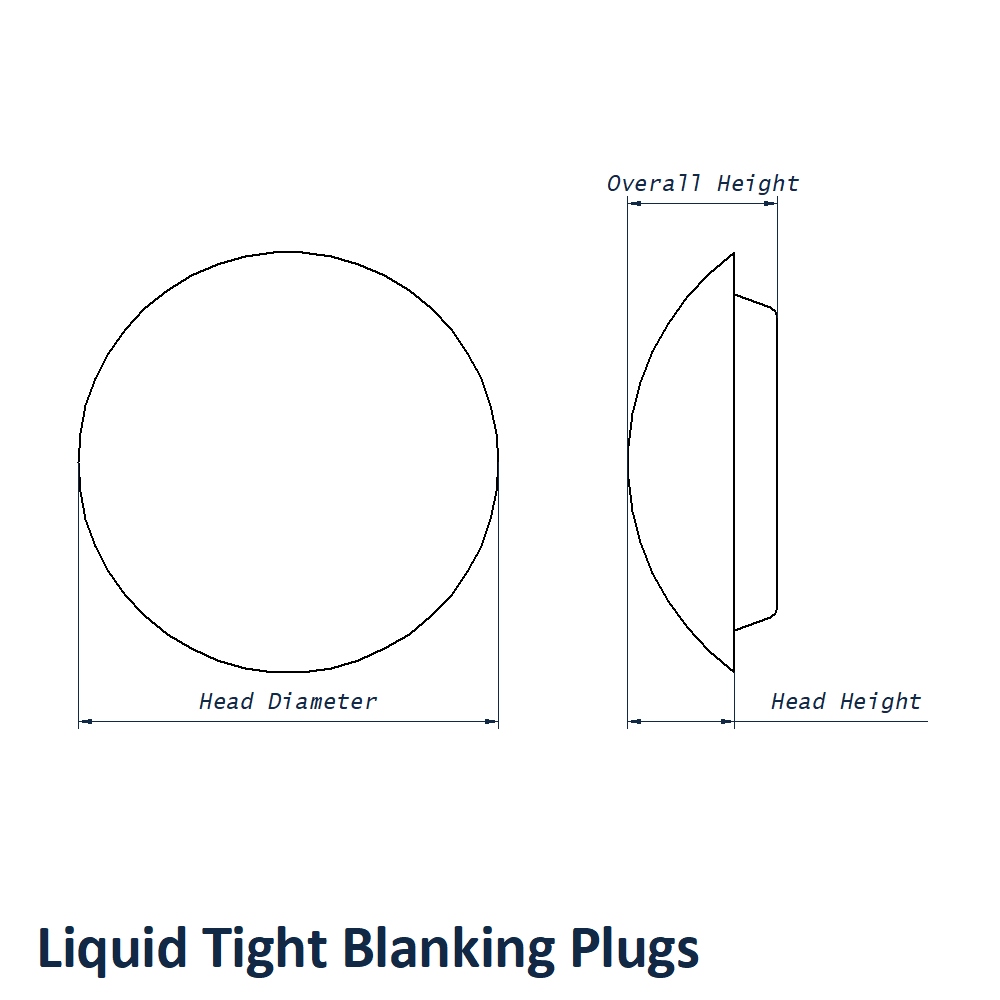

34.9mm Grey Liquid Tight Blanking Plug Dimensions
- Mounting Hole Diameter: 34.9mm
- Head Diameter: 45.2mm
- Head Thickness: 10.7mm
- Shore Hardness: 75
- Colour: Grey
- Overall Height: 14.3mm
- Panel Thickness: 3.2mm
- Material: TPE
- Flammability Rating: UL94 V-0
Liquid Tight Sealing Support
For more sealing sizes and panel closure options, view our full Liquid Tight Blanking Plugs range. These plugs are commonly selected for projects that need a quick-fitting sealing component for unused holes in electrical, automotive, marine and industrial equipment.
Product Support and Trade Orders
For help checking mounting hole size, panel thickness or suitability for larger project quantities, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for repeat trade requirements.
