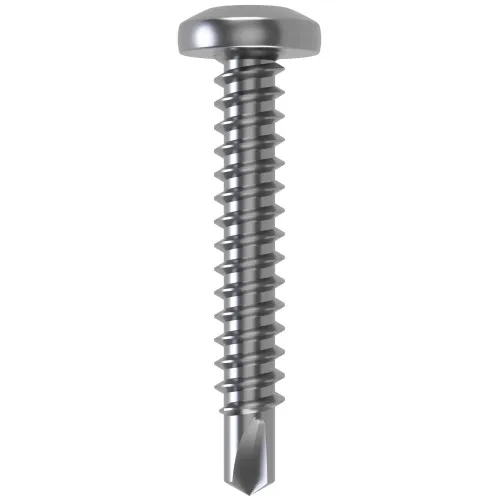

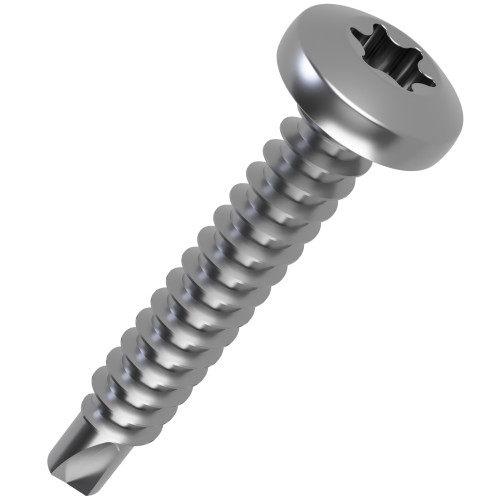

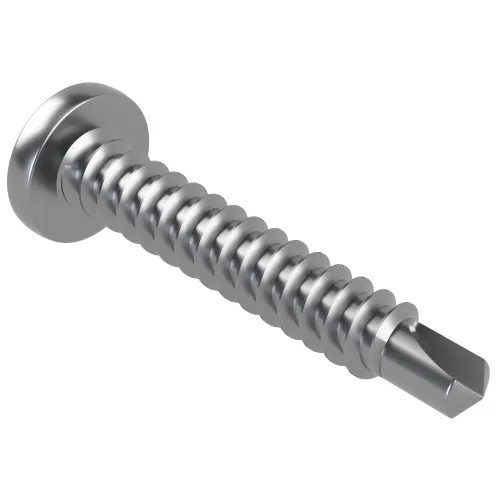

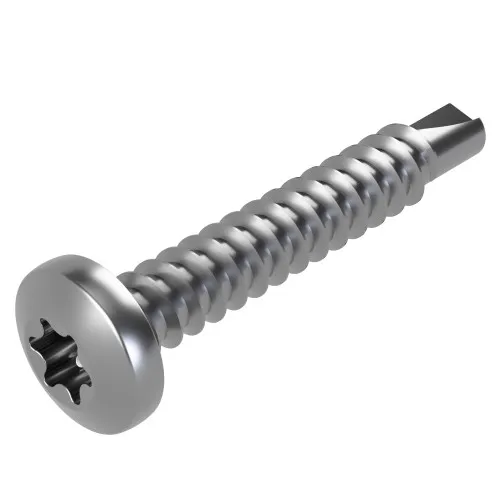

4.2mm x 13mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.07 | £0.08 |
| 2000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.04 | £0.05 |
£0.08 / each
.png)
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 13mm |
| Drive | TX20 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00
4.2mm x 13mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
This 4.2mm x 13mm Torx pan head self drilling screw is designed to drill, form a mating thread and fasten into compatible metal in one installation process. The hardened drill-shaped point helps reduce the need for a separate pilot hole in suitable sheet metal, brackets, panels and fabricated components. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.2mm x 13mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 13mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: TX20
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 8.0mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MT identifies the standard or drive format for this product.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. We also stock other self-drilling and self-threading fastening styles in our complete Self Drilling Screws range. For product-selection support, speak with our team on 01233 713581.
