4.2mm x 38mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.10 | £0.12 |
| 2000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
£0.12 / each
.png)
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 38mm |
| Drive | TX20 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00

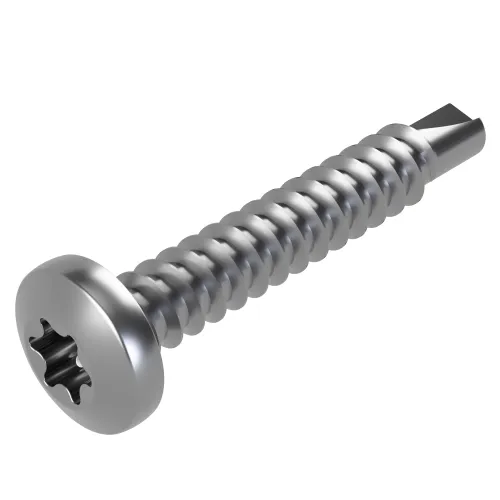

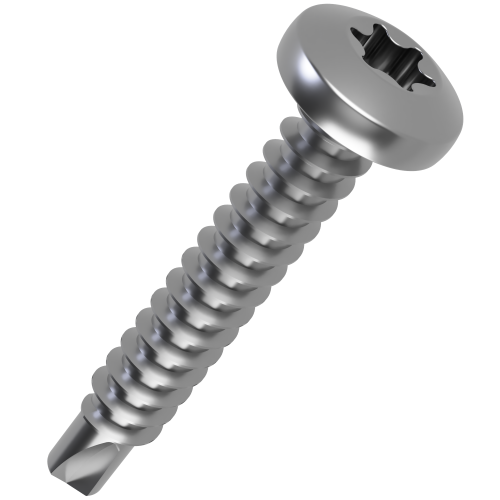

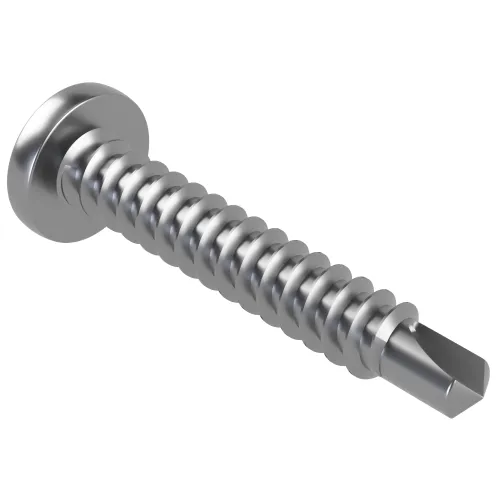

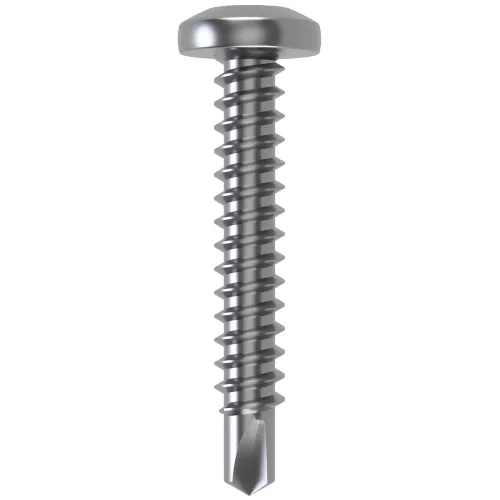

4.2mm x 38mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
Designed for signage, light metalwork and panel fixing, this 4.2mm x 38mm pan head self drilling screw combines an integrated drill point with a self-tapping thread. The rounded pan head gives a neat installed finish while its flat underside provides a broad bearing surface against the fixed component. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
4.2mm x 38mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 38mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: TX20
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- Flat underside of the pan head provides a broad clamping surface against panels and brackets.
- 4.2mm thread diameter with 38mm thread length provides the main screw dimensions.
- TX20 drive matches the specified driver or bit for installation.
- A2 Stainless Steel construction provides the specified material and finish for the application.
View the full Pan Head Self Drilling Screws range to compare diameters, lengths, drive styles and materials. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. If you need help choosing the correct screw for your material thickness, call us on 01233 713581.
