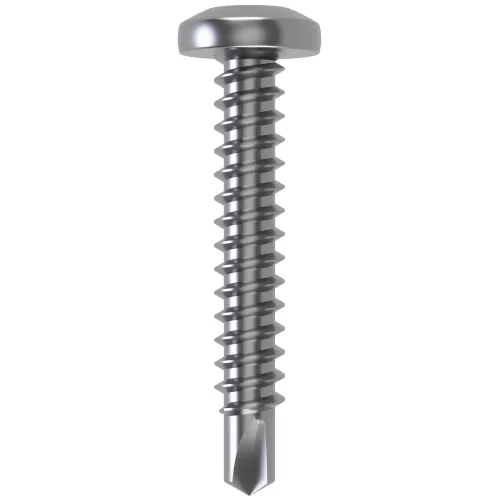

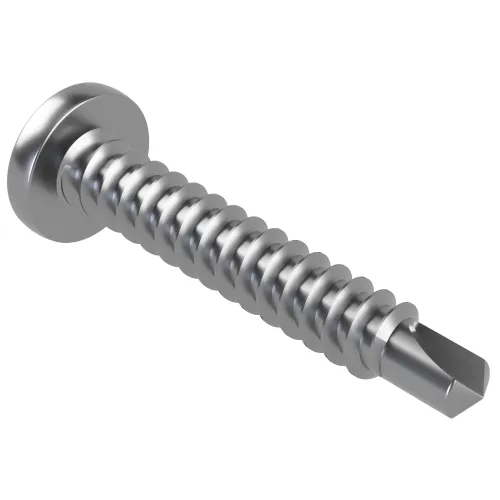

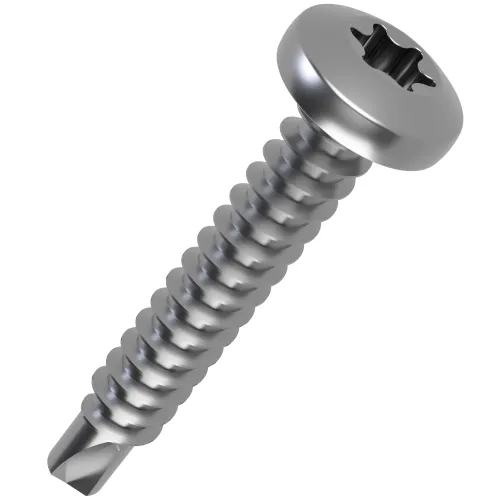

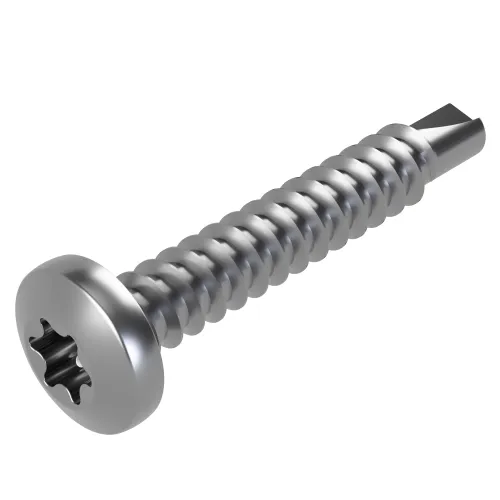

4.2mm x 32mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.12 | £0.14 |
| 2000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.07 | £0.08 |
£0.14 / each
.png)
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 32mm |
| Drive | TX20 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00
4.2mm x 32mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
Made for efficient metal fastening, this 4.2mm x 32mm pan head self drilling screw uses a drill-shaped point to penetrate compatible material before the thread forms its mating path. The TX20 drive provides the specified tool engagement for controlled installation. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
A Pan Head Self Drilling Screw is designed to create its own entry hole and thread in compatible metal. The rounded upper head gives a neat finish while the flat underside provides a broad bearing area for securing panels, brackets and thinner components. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
4.2mm x 32mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 32mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: TX20
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- 8.0mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MT identifies the standard or drive format for this product.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
Browse the complete Pan Head Self Drilling Screw collection for other lengths, diameters and materials. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. We can help you select the right fastener on 01233 713581.
