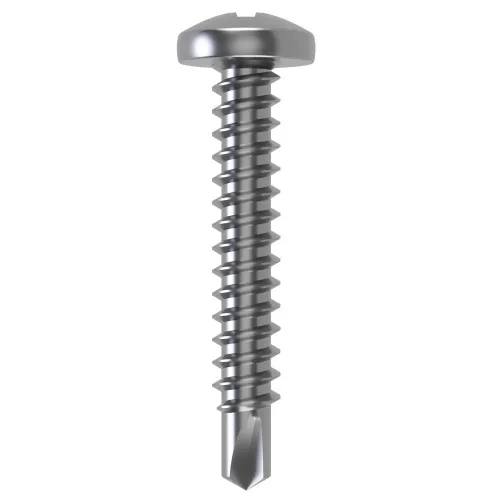

3.9mm x 32mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.09 | £0.11 |
| 2000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.11 / each
Product Specification
| Thread Size | 3.9mm |
| Thread Length | 32mm |
| Drive | PZ2 |
| Head Diameter | 7.5mm |
| Head Height | 2.8mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
3.9mm x 32mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
Made for efficient metal fastening, this 3.9mm x 32mm pan head self drilling screw uses a drill-shaped point to penetrate compatible material before the thread forms its mating path. The PZ2 drive provides the specified tool engagement for controlled installation. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Sheet Metal Fabrication: Joins overlapping sheets, lightweight sections, covers and fabricated metal components.
- Electrical Enclosures: Secures panels, access covers, mounting plates and internal brackets in suitable enclosures.
- HVAC and Ventilation: Fastens ducting, vents, air-handling components and associated metal fittings.
- Machinery and Equipment: Provides a practical fixing for guards, casings, control panels and light equipment assemblies.
3.9mm x 32mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 3.9mm
- Thread Length: 32mm
- Head Height: 2.8mm
- Head Diameter: 7.5mm
- Drive: PZ2
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- 7.5mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MZ identifies the standard or drive format for this product.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. For different head shapes and drive options, browse our wider Self Drilling Screws range for more self-drilling and self-threading fasteners. For product-selection support, speak with our team on 01233 713581.
