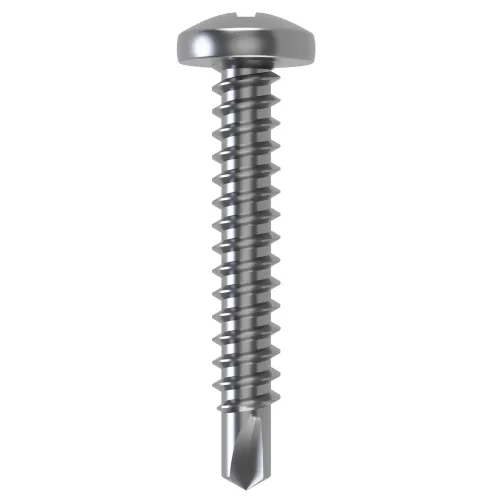

4.2mm x 13mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.06 | £0.07 |
| 2000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
£0.07 / each
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 13mm |
| Drive | PZ2 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
4.2mm x 13mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
This 4.2mm x 13mm Pozidriv pan head self drilling screw is designed to drill, form a mating thread and fasten into compatible metal in one installation process. The hardened drill-shaped point helps reduce the need for a separate pilot hole in suitable sheet metal, brackets, panels and fabricated components. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Pan Head Tek Screws are self drilling fasteners commonly used for metal-to-metal fixing. Their integrated drill point can remove separate drilling and tapping stages in many suitable applications while the drive recess allows installation with a compatible manual or powered driver. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
4.2mm x 13mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 13mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: PZ2
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- DIN 7504MZ identifies the standard or drive format for this product.
- Integrated drill point can reduce separate pilot-drilling operations in suitable metal.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 3.1mm head height gives the stated pan-head profile.
View the full Pan Head Self Drilling Screws range to compare diameters, lengths, drive styles and materials. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. If you need help choosing the correct screw for your material thickness, call us on 01233 713581.
