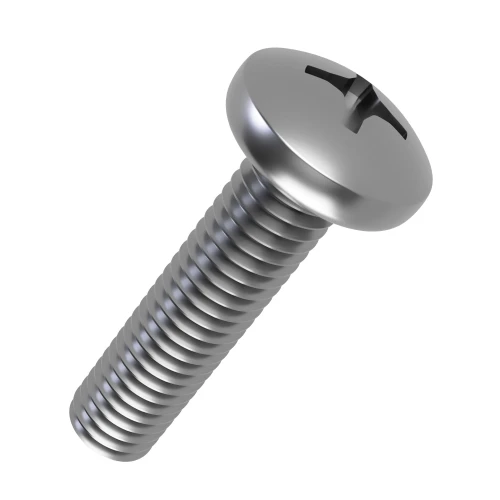

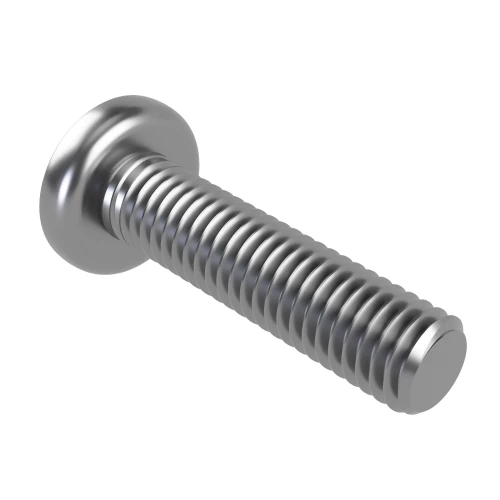

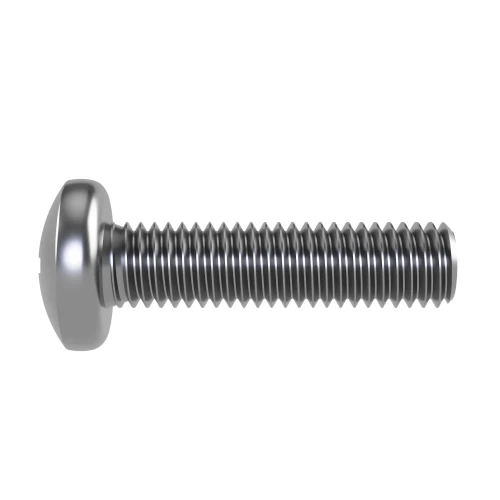

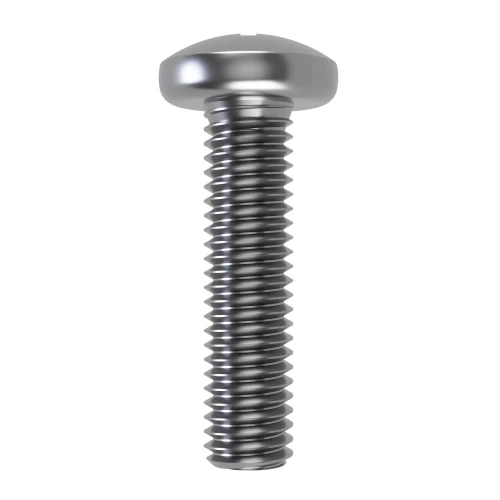

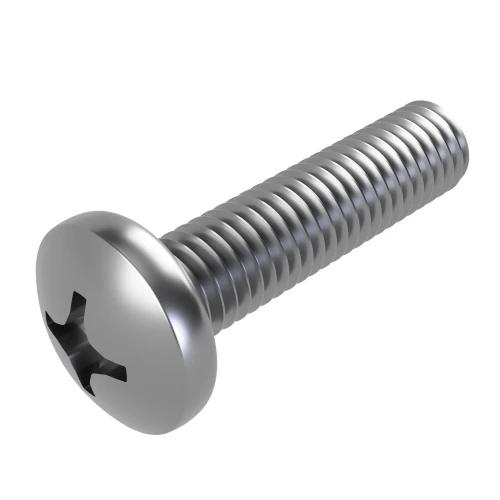

M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Product code: PPH7985H-M6-18-A2
View All Specifications
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.24 £1.49
10 - 24 £1.00 £1.20
25 - 49 £0.80 £0.96
50 - 99 £0.60 £0.72
100 - 499 £0.40 £0.48
500 - 999 £0.30 £0.36
1000 + £0.20 £0.24

£1.49 / each


Up to 980 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 40,855 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
40,855 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Length 18mm
Material A2 Stainless Steel
Pitch 1.00mm
Head Diameter 12.0mm
Head Height 4.75mm
Drive #3
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Specified to DIN 7985H, this A2 Stainless Steel panhead screw measures M6 x 18mm and uses a #3 Phillips screw drive. It can secure metal housings where a matching metric thread and raised pan head are required.

What Are Phillips Pan Head Machine Screws?

A Phillips head machine screw uses a cross-recessed pan head rather than a countersunk head. Its head stays proud of the fitted surface and the #3 drive must be matched to a suitable Phillips screwdriver bit. This M6 version follows DIN 7985H. Phillips and Pozidriv drive profiles are different, so a correctly matching Phillips screwdriver should be used rather than a Pozi bit. For other sizes and material choices, our pan head machine screws are listed by their individual thread and length specifications.

Common Applications

  • Equipment Assembly: Making detachable connections between components with matching machine threads.
  • Electrical Enclosures: Fixing covers and internal hardware with a matching metric thread.
  • Maintenance Work: Replacing a worn DIN 7985H screw with an equivalent size and drive.
  • Access Panels: Keeping the rounded head accessible when a panel requires routine removal.

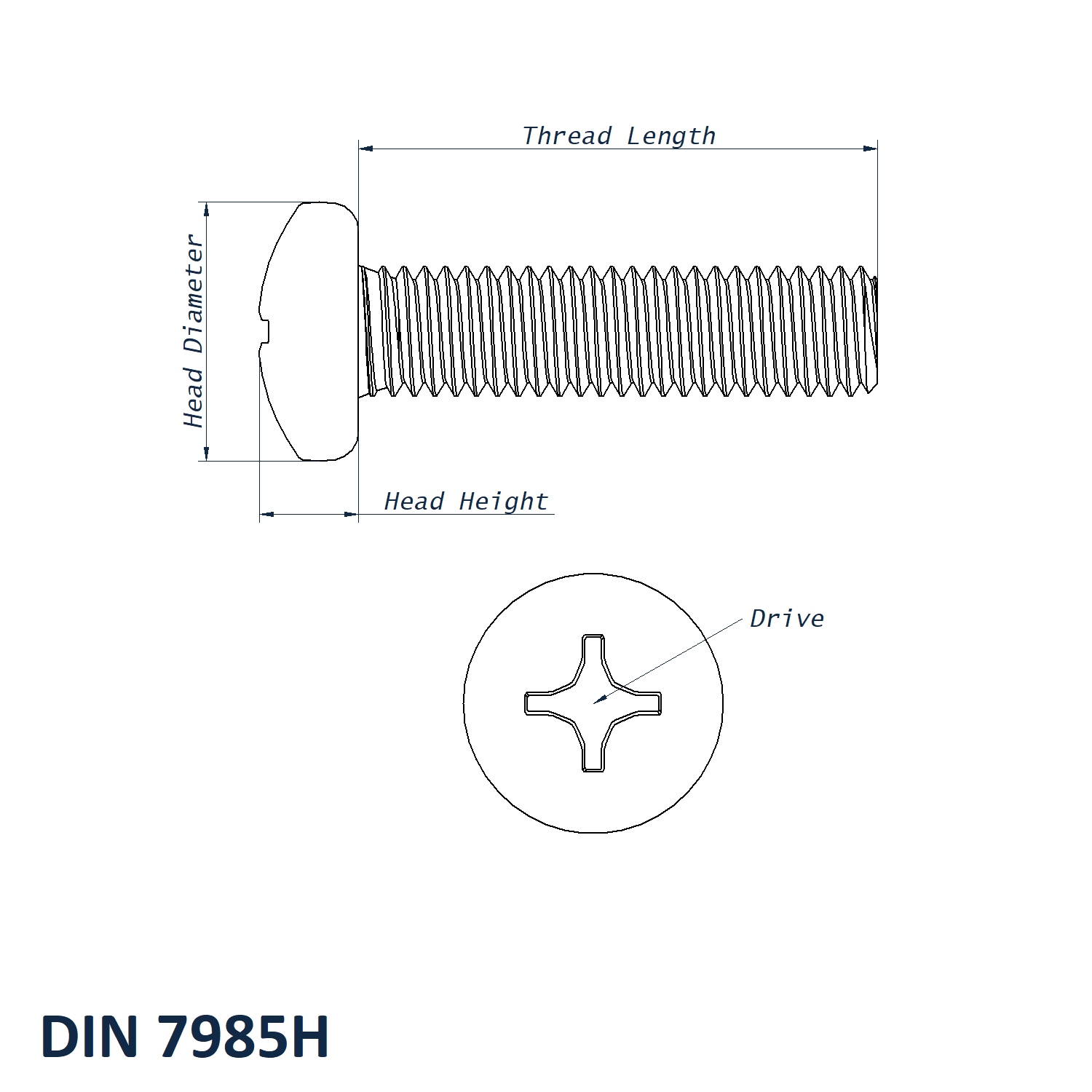

M6 x 18mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M6
  • Length: 18mm
  • Pitch: 1.00mm
  • Head Diameter: 12.0mm
  • Head Height: 4.75mm
  • Drive: #3
  • Material: A2 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The #3 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
  • The 18mm length lets this fastener be selected for the intended joint depth.
  • A removable screw connection supports access to equipment during maintenance.
  • The M6 machine thread works with matching tapped holes or nuts.

Explore our pan head machine fasteners to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
