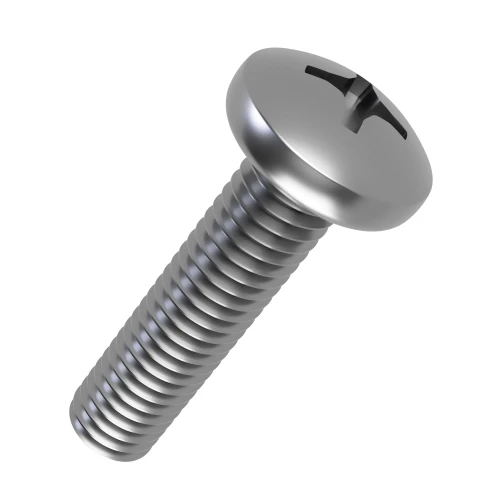

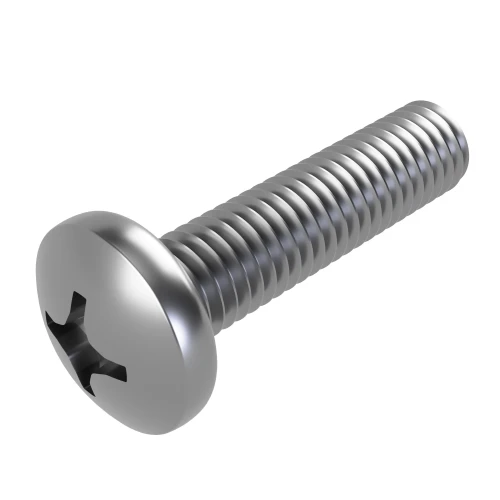

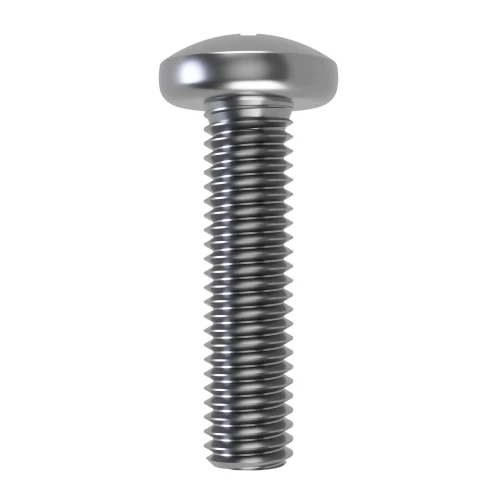

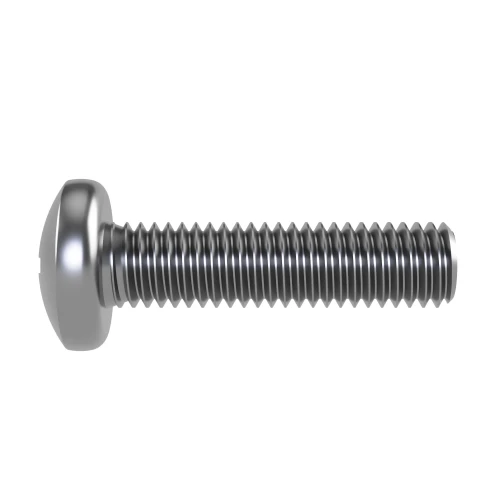

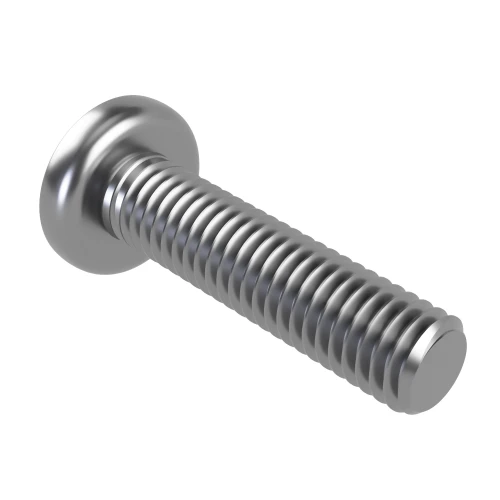

M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

Product code: PPH7985H-M6-12-A4
View All Specifications
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.28 £1.54
10 - 24 £1.02 £1.23
25 - 49 £0.82 £0.99
50 - 99 £0.62 £0.74
100 - 499 £0.41 £0.49
500 - 999 £0.31 £0.37
1000 + £0.21 £0.25

£1.54 / each


Up to 486 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 1,986 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 24,486 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
24,486 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Length 12mm
Material A4 Stainless Steel
Pitch 1.00mm
Head Diameter 12.0mm
Head Height 4.75mm
Drive #3
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

With a 12mm pan head and 4.75mm head height, this M6 x 12mm screw provides an accessible drive above the workpiece. The Marine Grade A4 Stainless Steel construction and #3 Phillips recess make it suitable for serviceable frame fixings.

What Are Phillips Pan Head Machine Screws?

A Phillips screw of this type has a machine thread along its shaft and a rounded head designed for conventional crosshead screwdriver access. The specified 1mm pitch defines the matching internal thread and its DIN 7985H designation identifies the screw form. Phillips and Pozidriv drive profiles are different, so a correctly matching Phillips screwdriver should be used rather than a Pozi bit. For other sizes and material choices, our panhead screws are listed by their individual thread and length specifications.

Common Applications

  • Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.
  • Workshop Fixtures: Installing removable brackets and small metal accessories.
  • Component Mounting: Securing mounts to tapped holes with the correct 1mm thread pitch.
  • Control Panels: Fastening removable panels to enclosures with prepared M6 female threads.

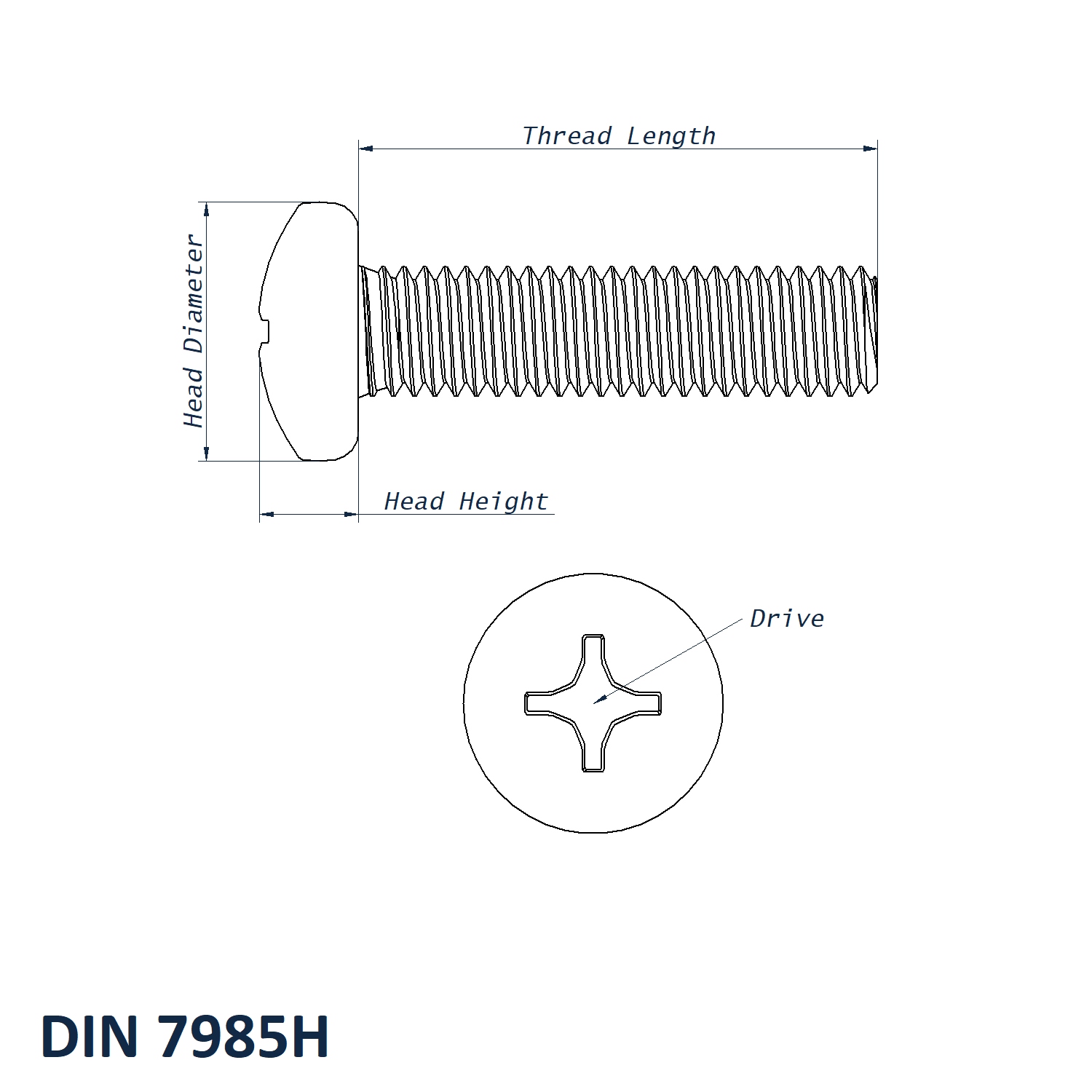

M6 x 12mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M6
  • Length: 12mm
  • Pitch: 1.00mm
  • Head Diameter: 12.0mm
  • Head Height: 4.75mm
  • Drive: #3
  • Material: A4 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The #3 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
  • The 12mm length lets this fastener be selected for the intended joint depth.
  • A removable screw connection supports access to equipment during maintenance.
  • The M6 machine thread works with matching tapped holes or nuts.

Explore our Phillips drive pan head screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
