M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Product code: PPH7985H-M6-12-A2
View All Specifications
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.85 £1.02
10 - 24 £0.68 £0.82
25 - 49 £0.54 £0.65
50 - 99 £0.41 £0.49
100 - 499 £0.28 £0.33
500 - 999 £0.21 £0.25
1000 + £0.13 £0.16

£1.02 / each


Up to 183 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 25,373 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 234,873 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
234,873 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Length 12mm
Material A2 Stainless Steel
Pitch 1.00mm
Head Diameter 12.0mm
Head Height 4.75mm
Drive #3
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

A M6 Phillips pan head screw in A2 Stainless Steel, this 12mm fastener suits equipment support brackets. Its #3 crosshead recess is tightened using the matching Phillips driver and the screw can be removed again when servicing the assembly.

What Are Phillips Pan Head Machine Screws?

A Phillips screw of this type has a machine thread along its shaft and a rounded head designed for conventional crosshead screwdriver access. The specified 1mm pitch defines the matching internal thread and its DIN 7985H designation identifies the screw form. For other sizes and material choices, our Phillips screw are listed by their individual thread and length specifications.

Common Applications

  • Equipment Assembly: Making detachable connections between components with matching machine threads.
  • Electrical Enclosures: Fixing covers and internal hardware with a matching metric thread.
  • Maintenance Work: Replacing a worn DIN 7985H screw with an equivalent size and drive.
  • Access Panels: Keeping the rounded head accessible when a panel requires routine removal.

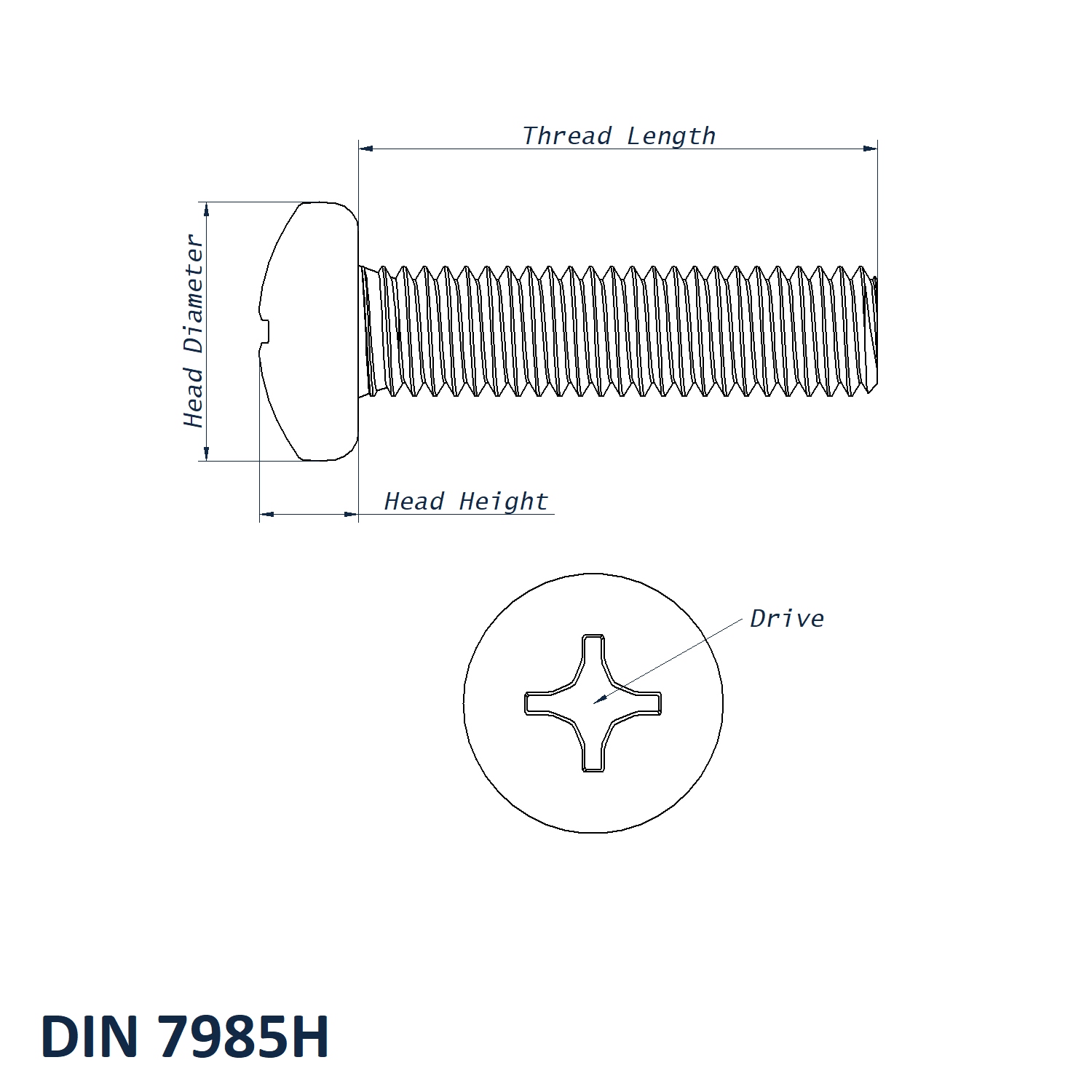

M6 x 12mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M6
  • Length: 12mm
  • Pitch: 1.00mm
  • Head Diameter: 12.0mm
  • Head Height: 4.75mm
  • Drive: #3
  • Material: A2 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • A removable screw connection supports access to equipment during maintenance.
  • The M6 machine thread works with matching tapped holes or nuts.
  • The #3 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
  • The 12mm length lets this fastener be selected for the intended joint depth.

Explore our metric Phillips screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
