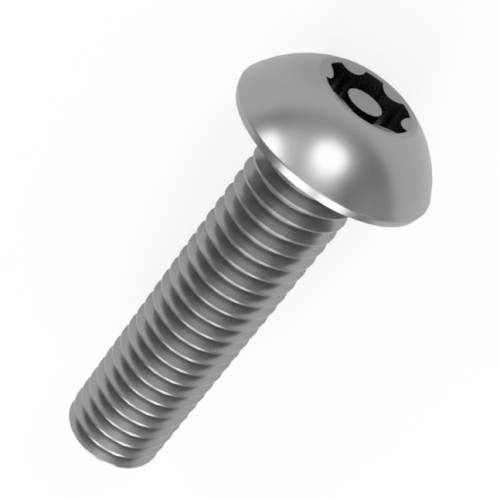

M10 x 30mm Security Pin Torx Button Head Screw (T50) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.03 | £6.04 |
| 10 - 24 | £4.03 | £4.83 |
| 25 - 49 | £3.02 | £3.62 |
| 50 - 99 | £2.52 | £3.02 |
| 100 - 499 | £2.02 | £2.42 |
| 500 - 999 | £1.76 | £2.11 |
| 1000 + | £1.51 | £1.81 |
£6.04 / each
.png)
Product Specification
| Thread Size | M10 |
| Pitch | 1.5mm |
| Head Diameter | 17.5mm |
| Head Height | 5.50mm |
| Drive | Security T50 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 30mm |
Frequently Bought Together
Total Price: £0.00
M10 x 30mm Pin Torx Button Head Screw (T50) – A2 Stainless Steel
This M10 x 30mm Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T50 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M10 x 30mm fixing can be removed for planned maintenance using the matching Security T50 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.
Common Applications
- Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
- Transport fittings: Secure suitable interior brackets and covers that may require periodic removal.
- Building fixtures: Hold exposed metal fittings in place with a low-profile rounded screw head.
M10 x 30mm Pin Torx Button Head Screw Dimensions
- Thread Size: M10
- Length: 30mm
- Pitch: 1.5mm
- Head Diameter: 17.5mm
- Head Height: 5.50mm
- Drive: Security T50
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The machine thread can engage a matching female thread or be used with an appropriate nut.
- A clearly specified security drive size helps identify the correct installation tool.
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
