M12 x 35mm Security Pin Torx Button Head Screw (T55) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.73 | £3.27 |
| 100 - 499 | £2.37 | £2.84 |
| 500 - 999 | £1.82 | £2.18 |
| 1000 - 4999 | £1.36 | £1.63 |
| 5000 + | £0.99 | £1.19 |
£3.27 / each
.png)
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Head Diameter | 21.0mm |
| Head Height | 6.60mm |
| Drive | Security T55 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 35mm |
Frequently Bought Together
Total Price: £0.00

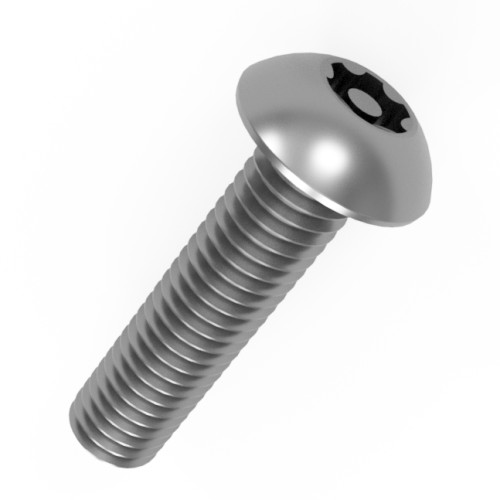

M12 x 35mm Pin Torx Button Head Screw (T55) – A2 Stainless Steel
This M12 x 35mm Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T55 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M12 x 35mm fixing can be removed for planned maintenance using the matching Security T55 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.
Common Applications
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.

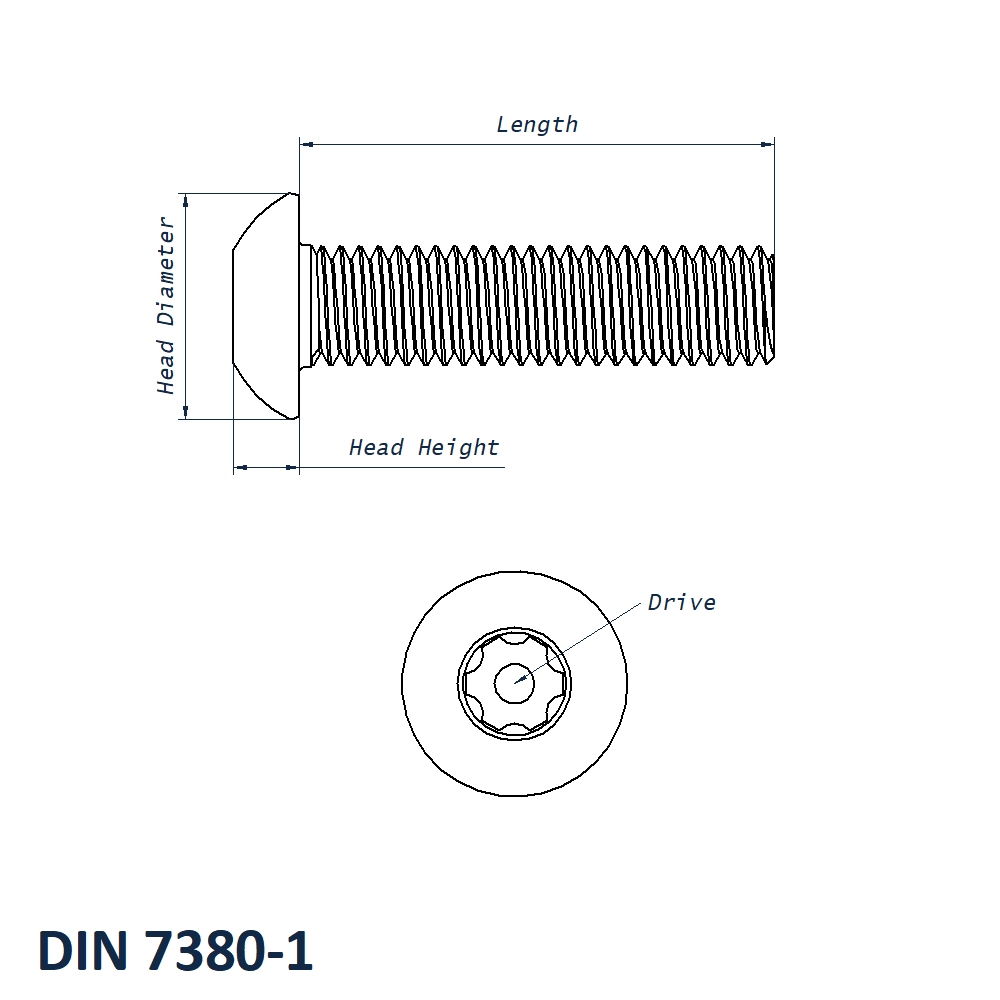

M12 x 35mm Pin Torx Button Head Screw Dimensions
- Thread Size: M12
- Length: 35mm
- Head Diameter: 21.0mm
- Head Height: 6.60mm
- Pitch: 1.75mm
- Head Style: Button Head
- Standard: ISO 7380-1
- Drive: Security T55
- Material: A2 Stainless Steel
Key Benefits
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
