M12 x 60mm Security Pin Torx Button Head Screw (T55) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £4.12 | £4.95 |
| 100 - 499 | £3.58 | £4.30 |
| 500 - 999 | £2.75 | £3.30 |
| 1000 - 4999 | £2.06 | £2.47 |
| 5000 + | £1.50 | £1.80 |
£4.95 / each
.png)
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Head Diameter | 21.0mm |
| Head Height | 6.60mm |
| Drive | Security T55 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 60mm |
Frequently Bought Together
Total Price: £0.00

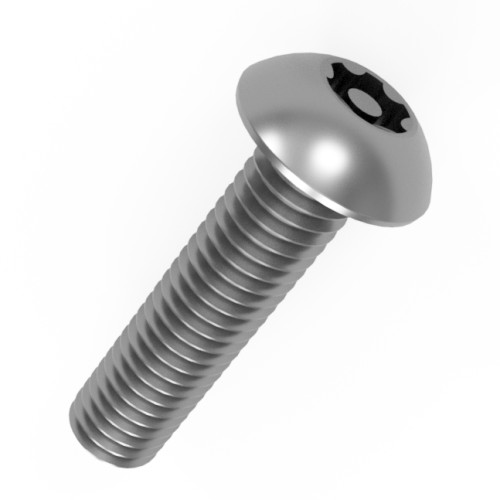

M12 x 60mm Pin Torx Button Head Screw (T55) – A2 Stainless Steel
This M12 x 60mm button head security screw provides a removable machine-threaded fixing with a centre-pin Torx recess. The A2 Stainless Steel construction and Security T55 drive make it suitable for assemblies where casual interference is a concern.
What Are Pin Torx Button Head Screws?
A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M12 x 60mm fixing can be removed for planned maintenance using the matching Security T55 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.
Common Applications
- Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.

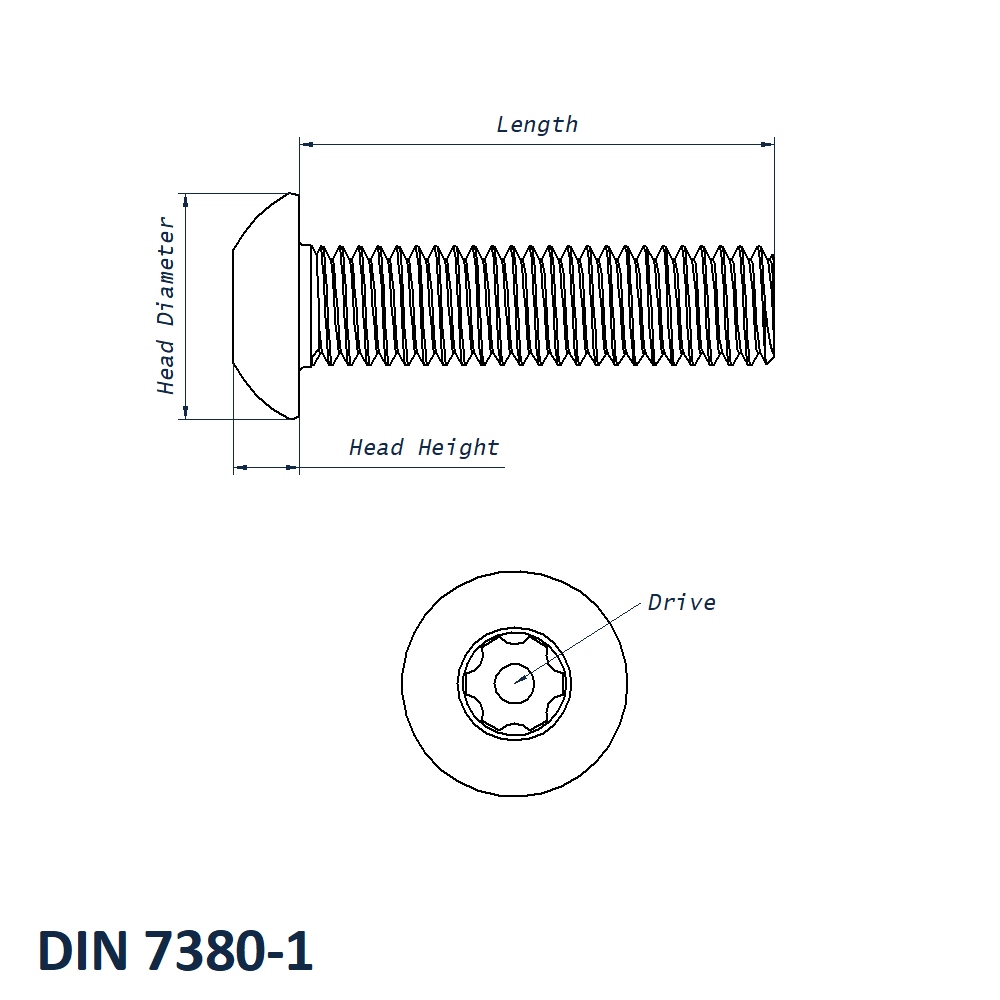

M12 x 60mm Pin Torx Button Head Screw Dimensions
- Thread Size: M12
- Length: 60mm
- Head Diameter: 21.0mm
- Head Height: 6.60mm
- Pitch: 1.75mm
- Head Style: Button Head
- Standard: ISO 7380-1
- Drive: Security T55
- Material: A2 Stainless Steel
Key Benefits
- Defined head dimensions help assess the clearance around the assembled fixing.
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
Explore more security Torx button head fasteners to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
