M12 x 100mm Security Pin Torx Button Head Screw (T55) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £6.10 | £7.32 |
| 100 - 499 | £5.30 | £6.36 |
| 500 - 999 | £4.07 | £4.88 |
| 1000 - 4999 | £3.05 | £3.66 |
| 5000 + | £2.22 | £2.66 |
£7.32 / each
.png)
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Head Diameter | 21.0mm |
| Head Height | 6.60mm |
| Drive | Security T55 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 100mm |
Frequently Bought Together
Total Price: £0.00

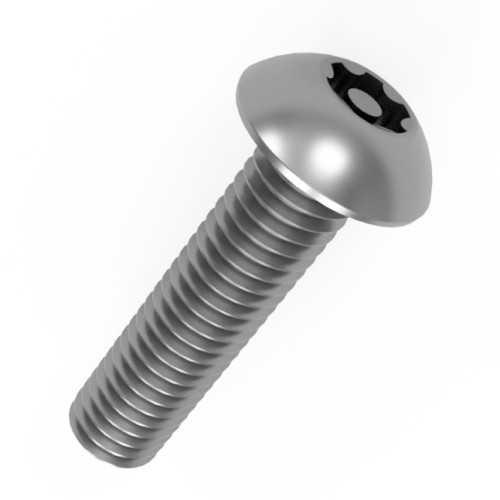

M12 x 100mm Pin Torx Button Head Screw (T55) – A2 Stainless Steel
This M12 x 100mm Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T55 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M12 version needs a corresponding Security T55 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
- Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.

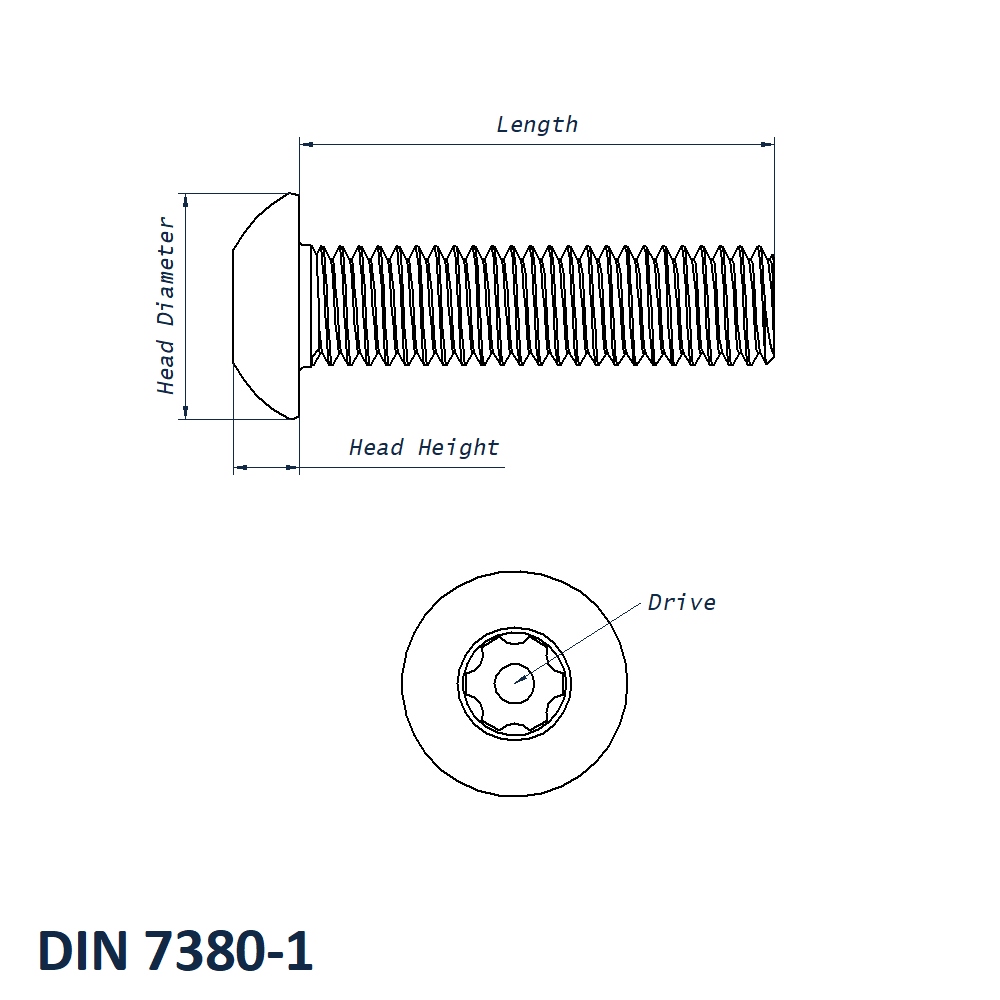

M12 x 100mm Pin Torx Button Head Screw Dimensions
- Thread Size: M12
- Length: 100mm
- Head Diameter: 21.0mm
- Head Height: 6.60mm
- Pitch: 1.75mm
- Head Style: Button Head
- Standard: ISO 7380-1
- Drive: Security T55
- Material: A2 Stainless Steel
Key Benefits
- The machine thread can engage a matching female thread or be used with an appropriate nut.
- A clearly specified security drive size helps identify the correct installation tool.
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
