M12 x 40mm Security Pin Torx Button Head Screw (T55) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.86 | £3.43 |
| 100 - 499 | £2.49 | £2.99 |
| 500 - 999 | £1.91 | £2.29 |
| 1000 - 4999 | £1.43 | £1.72 |
| 5000 + | £1.04 | £1.25 |
£3.43 / each
.png)
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Head Diameter | 21.0mm |
| Head Height | 6.60mm |
| Drive | Security T55 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 40mm |
Frequently Bought Together
Total Price: £0.00
M12 x 40mm Pin Torx Button Head Screw (T55) – A2 Stainless Steel
The M12 x 40mm Security Pin Torx Button Head Screw combines a M12 machine thread with a Security T55 drive and a button head. Its centre pin restricts engagement by an ordinary Torx tool while allowing servicing with the correct security bit.
What Are Pin Torx Button Head Screws?
The button head sits above the mounting surface with a rounded profile and a recessed centre-pin Torx drive. The M12 x 40mm screw must be matched to the female thread and driven with a Security T55 security bit. At Level 1 entry-level security it helps discourage casual tampering and opportunistic misuse; authorised removal remains possible.
Common Applications
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
- Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
- Transport fittings: Secure suitable interior brackets and covers that may require periodic removal.

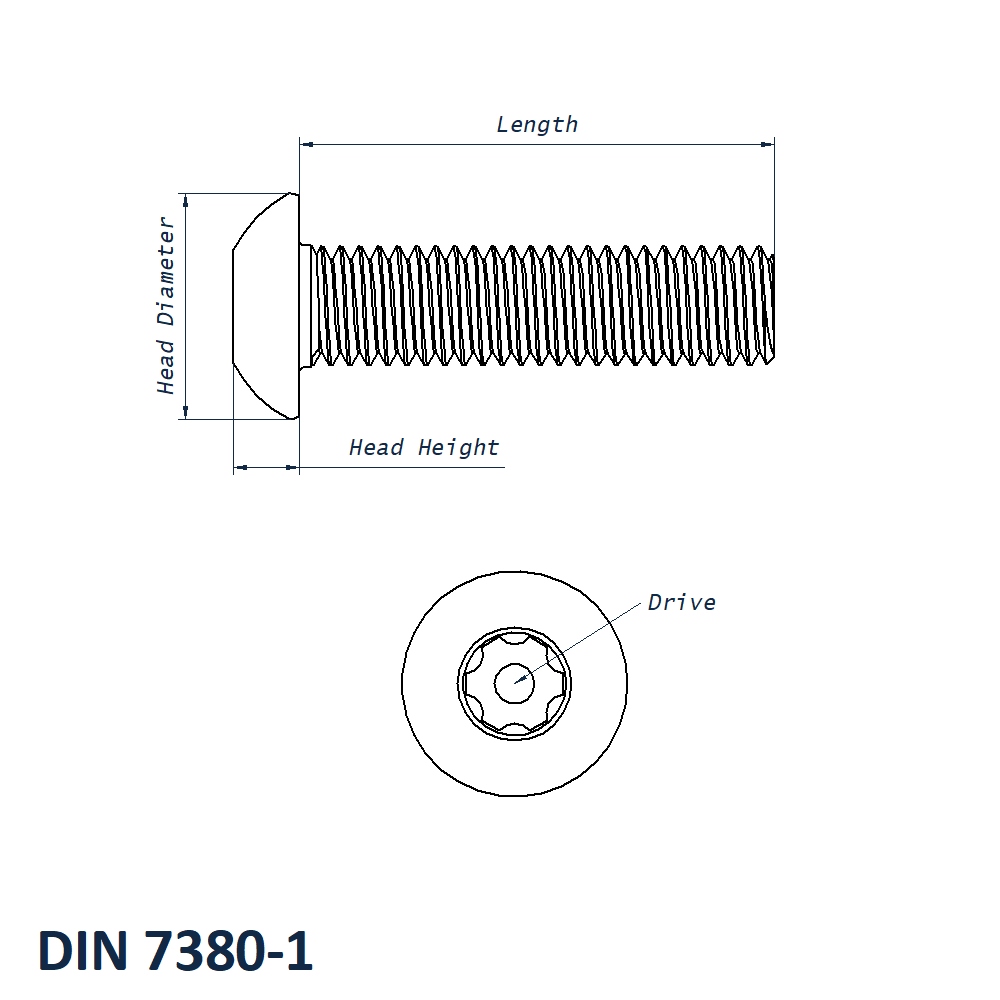

M12 x 40mm Pin Torx Button Head Screw Dimensions
- Thread Size: M12
- Length: 40mm
- Head Diameter: 21.0mm
- Head Height: 6.60mm
- Pitch: 1.75mm
- Head Style: Button Head
- Standard: ISO 7380-1
- Drive: Security T55
- Material: A2 Stainless Steel
Key Benefits
- A clearly specified security drive size helps identify the correct installation tool.
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
Explore more tamper-resistant button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
