3mm x 10mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.33 | £0.39 |
| 50 - 99 | £0.20 | £0.24 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.39 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 10mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

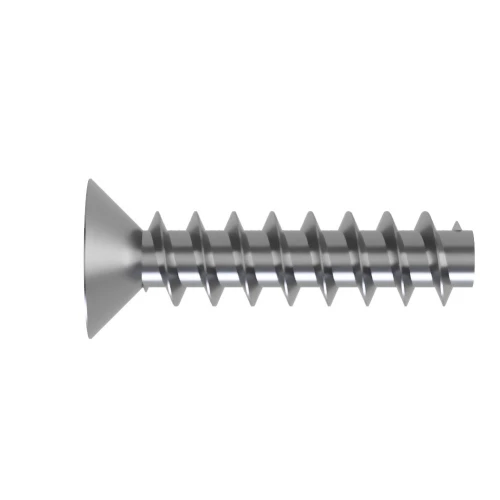

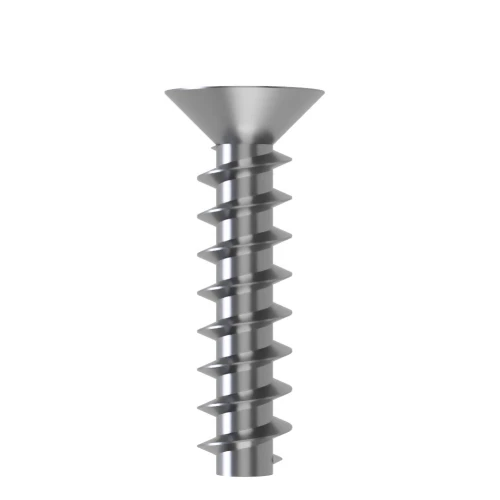

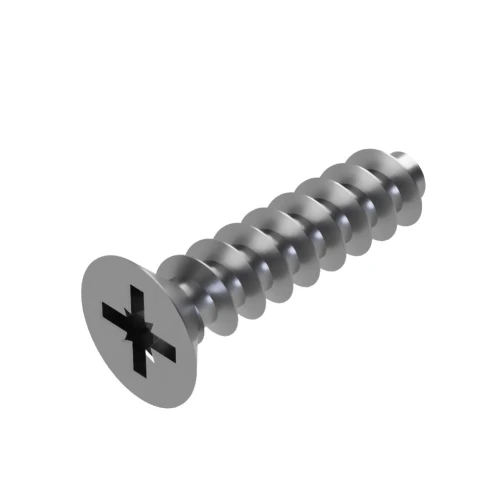

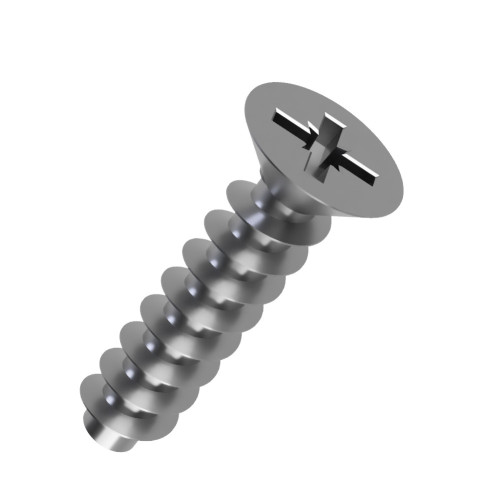

3mm x 10mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Ideal for food and catering equipment components, this 3mm x 10mm PT45 plastic screw is manufactured from A2 Stainless Steel with a Countersunk head and PZ1 Pozi drive. The trilobular thread form displaces compatible plastic to create the mating thread without relying on conventional cutting action.
What Are Pozi Countersunk PT45 Screws?
PT45 Pozi Countersunk Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while the head can finish level with the surrounding component surface.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers and moulded appliance parts.

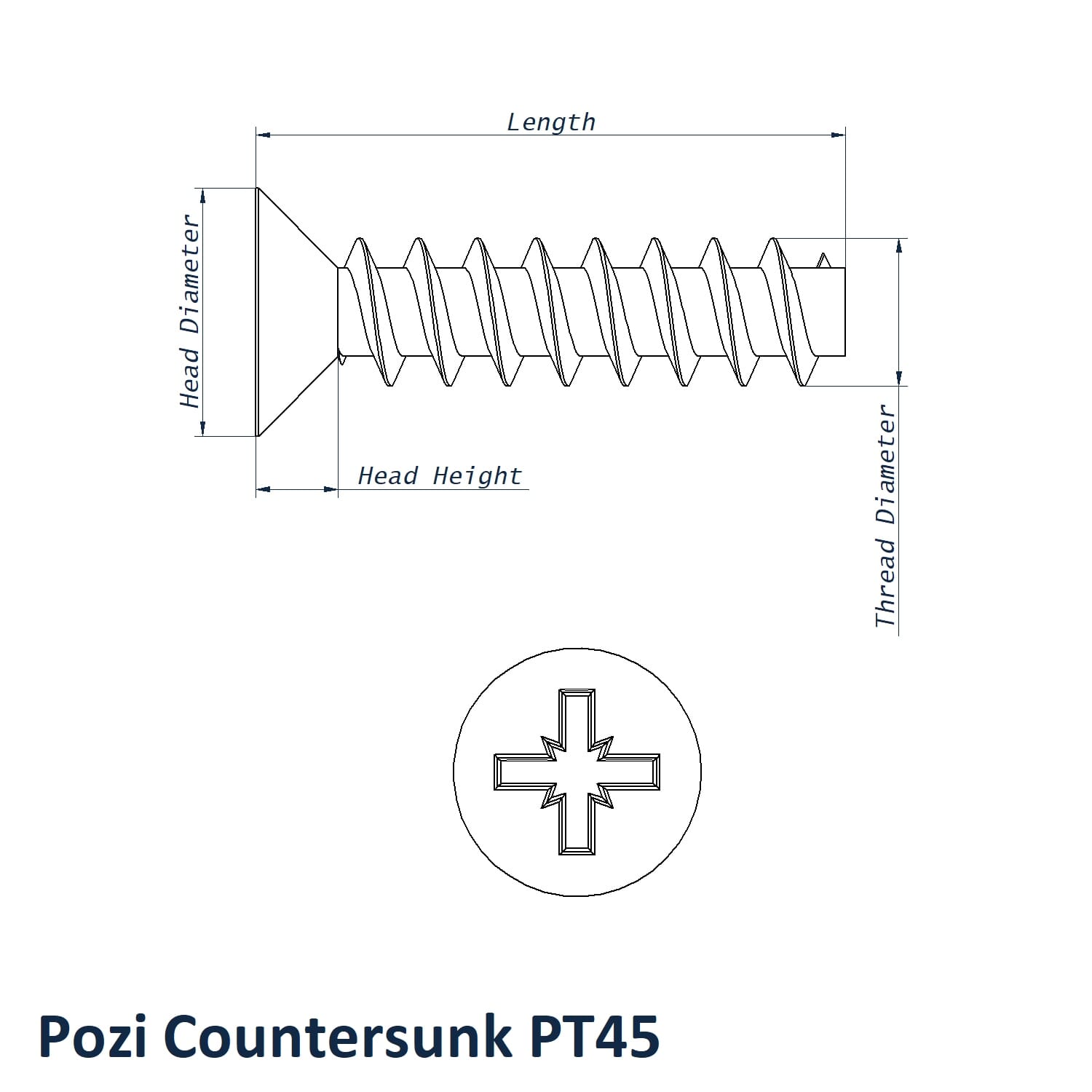

3mm x 10mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 10mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- A2 Stainless Steel provides improved corrosion resistance for more demanding hard-plastic fastening environments.
- PZ1 Pozi drive provides a widely available drive format for production and maintenance.
See related dimensions and materials in the Pozi Countersunk PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
