3mm x 6mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.38 | £0.45 |
| 50 - 99 | £0.23 | £0.27 |
| 100 - 249 | £0.15 | £0.18 |
| 250 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
£0.45 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 6mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

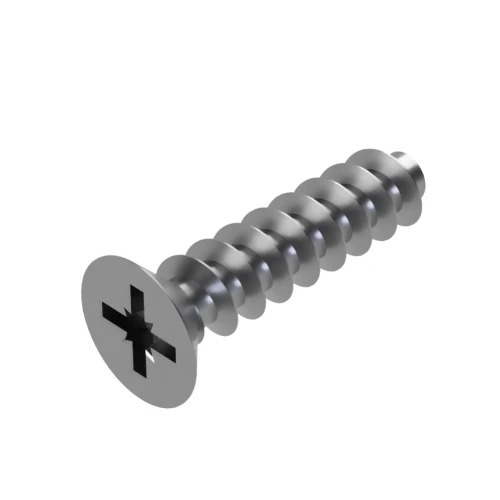

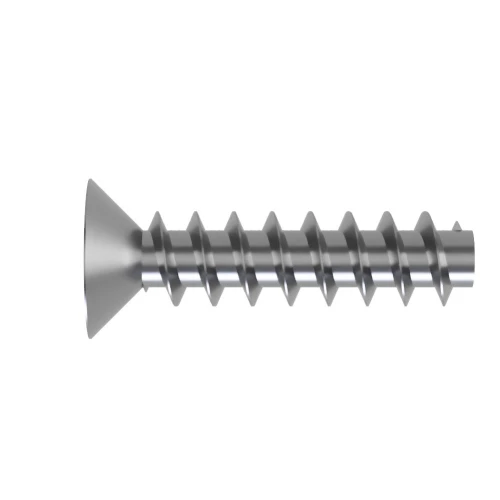

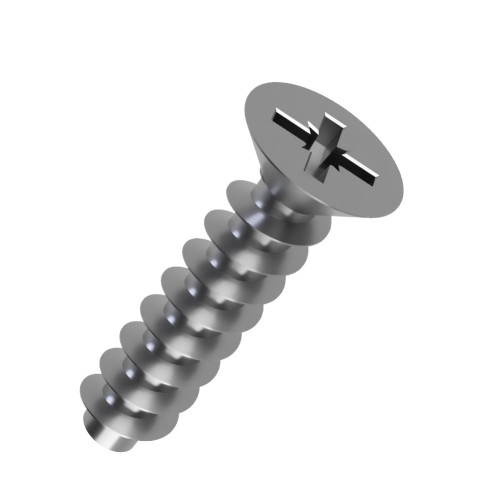

3mm x 6mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Designed for outdoor hard-plastic equipment and housings, this 3mm x 6mm Pozi Countersunk PT45 Screw uses a 45° trilobular thread form developed for harder plastics and reinforced materials. The A2 Stainless Steel fastener combines a Countersunk head with a PZ1 Pozi drive so the fixing can sit flush in a correctly prepared countersunk hole.
What Are Pozi Countersunk PT45 Screws?
Pozi Countersunk PT45 screws are designed for moulded or predrilled pilot holes in harder plastics and reinforced materials. The Pozi recess provides a familiar drive format while the countersunk head is useful where a flush or low-profile finish is required.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.

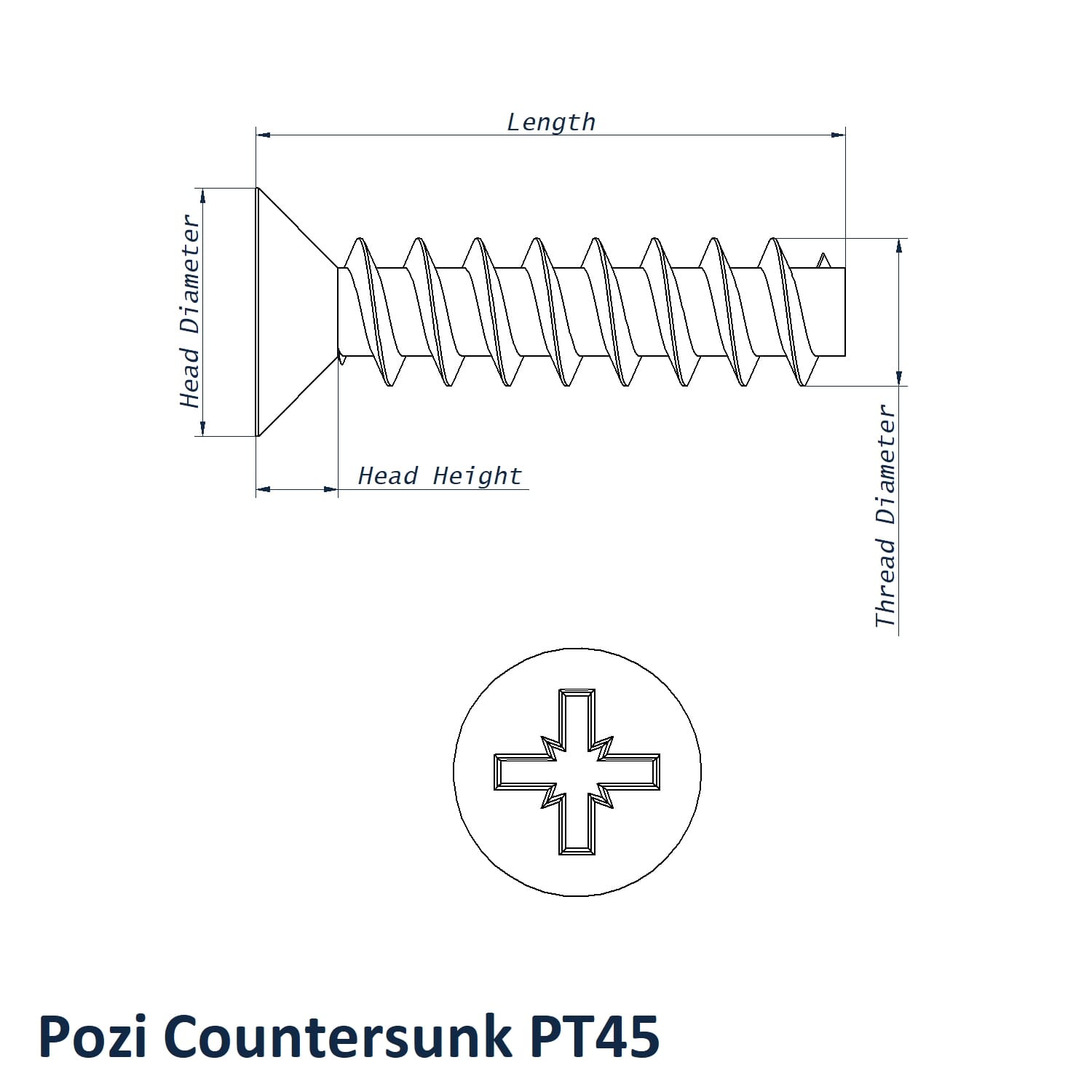

3mm x 6mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 6mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- PZ1 Pozi drive provides a widely available drive format for production and maintenance.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- 5.50mm head diameter and 1.50mm head height match the uploaded SKU specification.
Browse the full Pozi Countersunk PT45 Screws for Hard Plastics category for Bright Zinc Plated Steel and A2 Stainless Steel options. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection and installation guidance. Technical support is available on 01233 713581.
