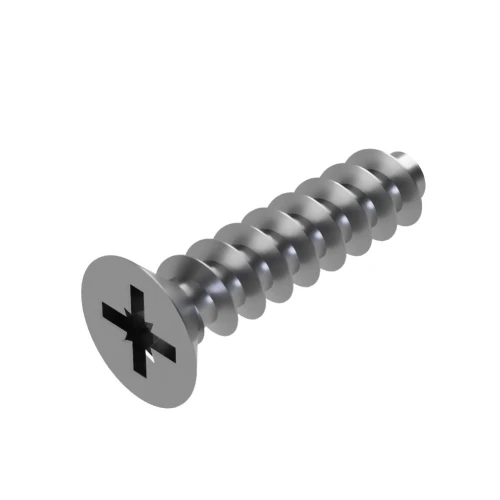

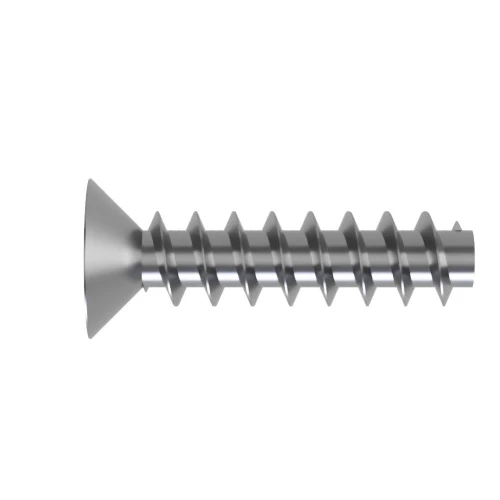

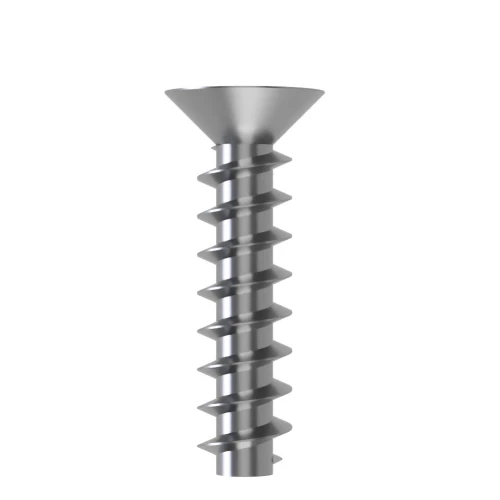

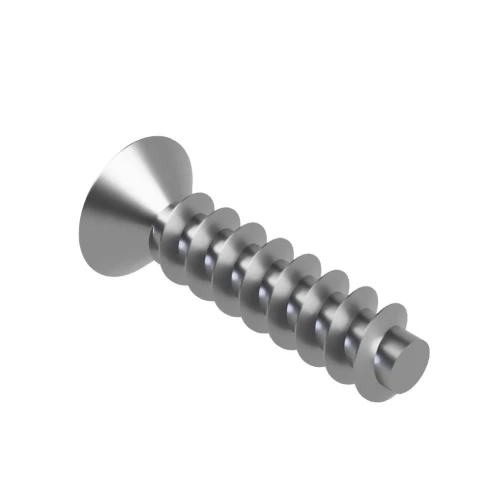

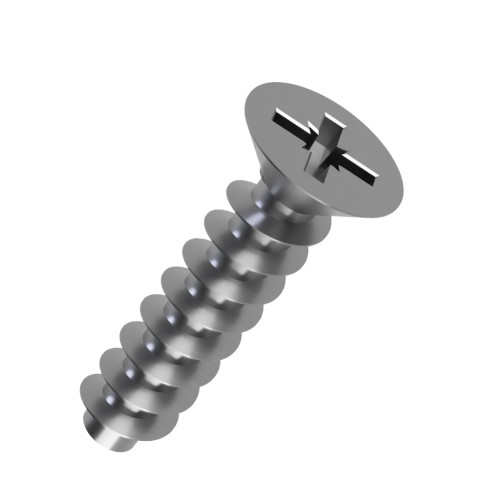

3mm x 8mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.38 | £0.45 |
| 50 - 99 | £0.23 | £0.27 |
| 100 - 249 | £0.15 | £0.18 |
| 250 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
£0.45 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 8mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3mm x 8mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Suitable for outdoor hard-plastic equipment and housings, this 3mm x 8mm Pozi Countersunk screw uses the PT45 thread geometry intended for harder plastic components. The three-lobed thread body concentrates forming pressure at specific points while the countersunk profile allows the head to finish level with the surrounding surface.
What Are Pozi Countersunk PT45 Screws?
A PT45 Countersunk screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.

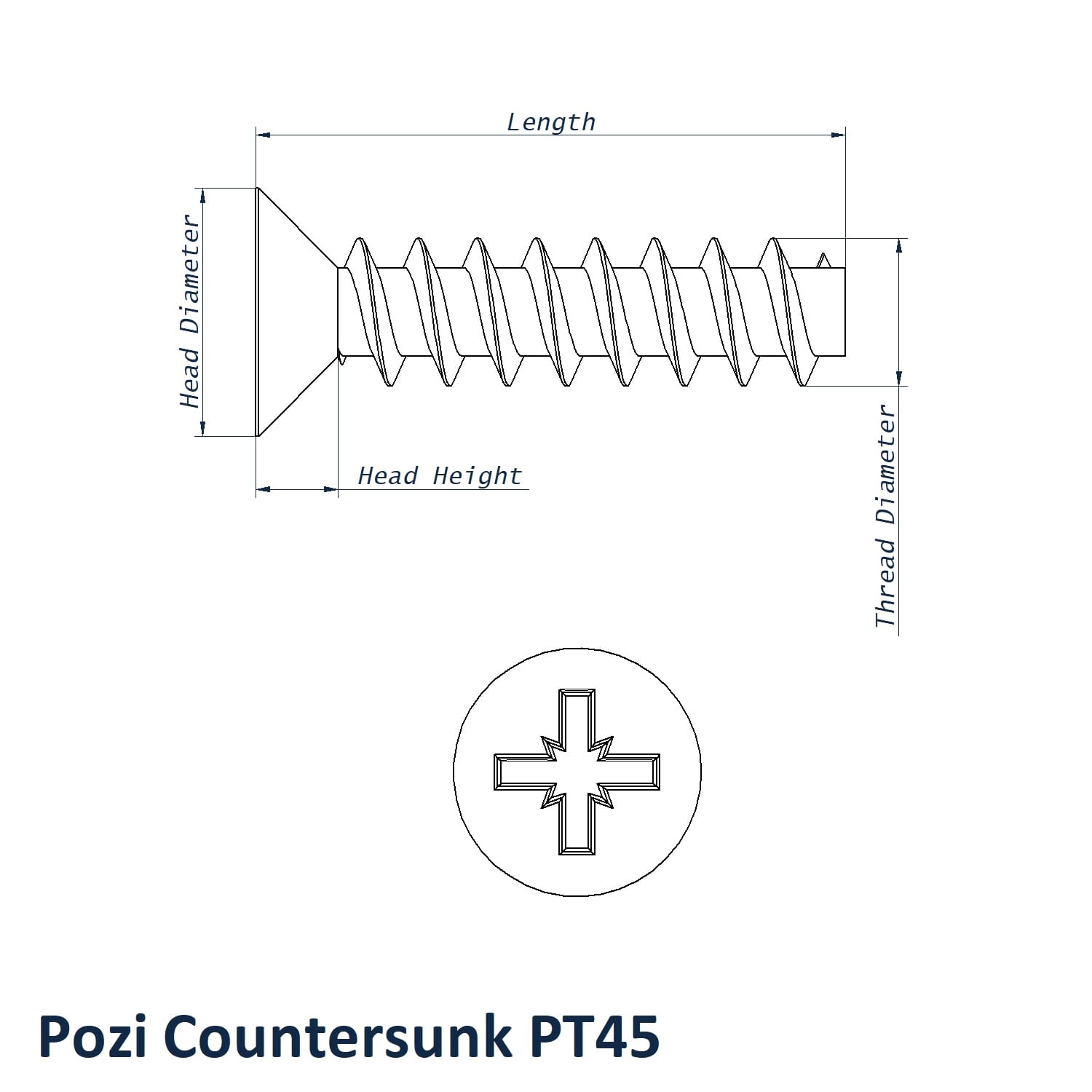

3mm x 8mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 8mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
Further PT45 sizes are available through the Pozi Countersunk Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
