3mm x 20mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.33 | £0.40 |
| 50 - 99 | £0.20 | £0.24 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.40 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 20mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

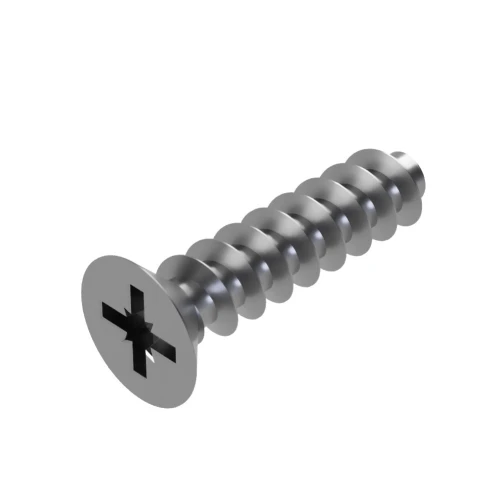

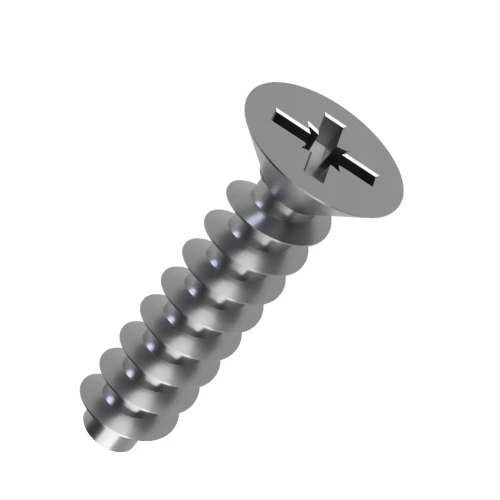

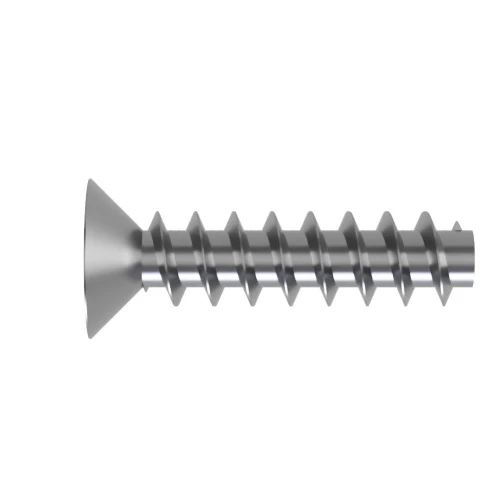

3mm x 20mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Offering a thread-forming solution for external plastic fixtures, this 3mm x 20mm PT45 Screw combines a Countersunk head with a PZ1 Pozi recess. The A2 Stainless Steel fastener uses a shorter 45° thread and trilobular body to suit compatible hard plastics and reinforced materials.
What Are Pozi Countersunk PT45 Screws?
Pozi Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics while the countersunk head allows flush installation into a matching recess.
Common Applications
- Prototype and Production Assemblies: Provides a specialist hard-plastic screw format for testing and repeat production fastening.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.

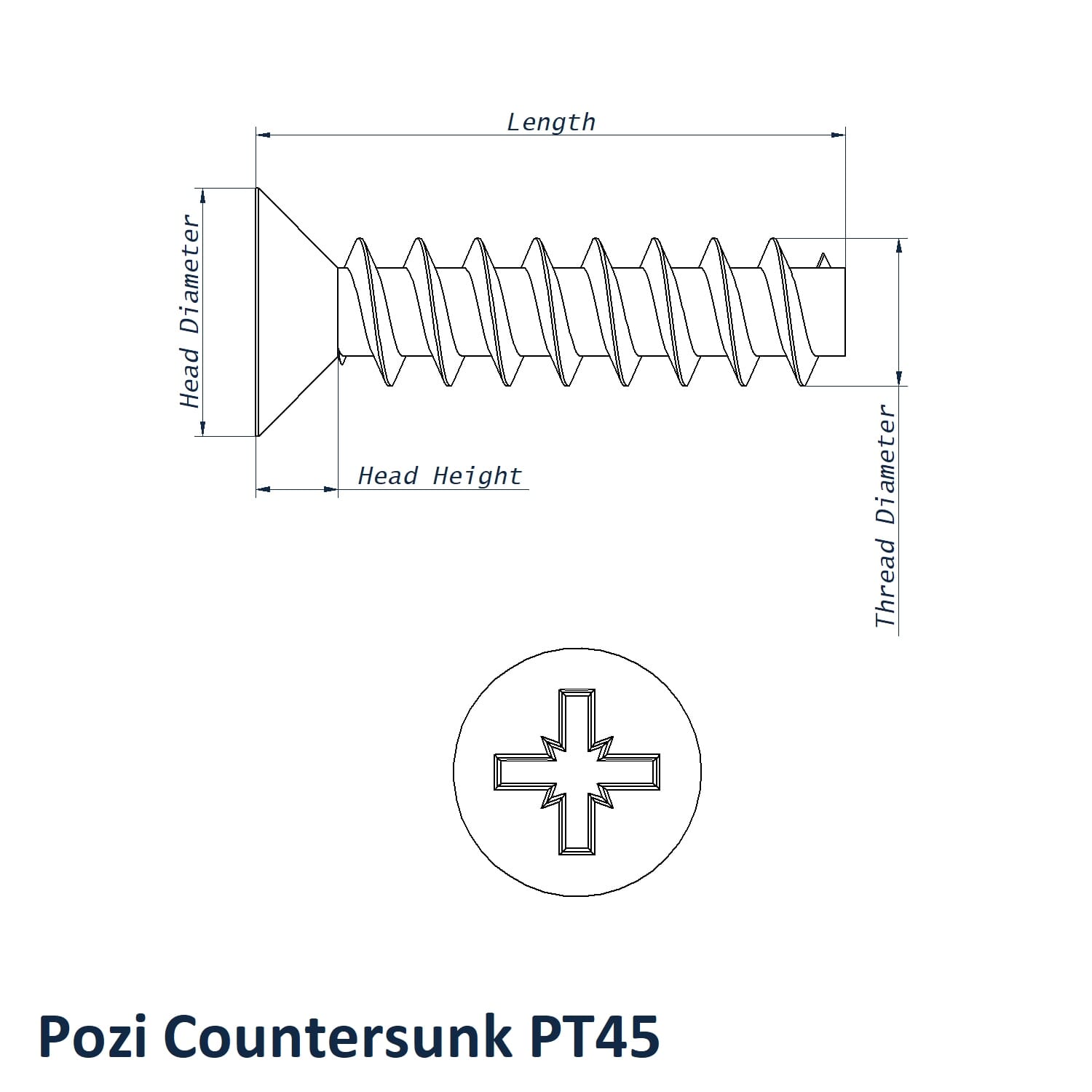

3mm x 20mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 20mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 5.50mm head diameter and 1.50mm head height match the uploaded SKU specification.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
Further PT45 sizes are available through the Pozi Countersunk Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
