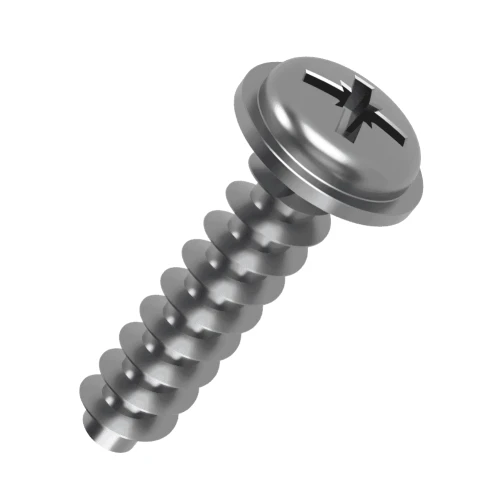

4mm x 20mm Pozi Flanged Screw for Hard Plastics (PT45) - PZ2 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £1.20 | £1.44 |
| 50 - 99 | £0.72 | £0.86 |
| 100 - 249 | £0.47 | £0.57 |
| 250 - 499 | £0.36 | £0.43 |
| 500 - 999 | £0.30 | £0.36 |
| 1000 - 4999 | £0.24 | £0.29 |
| 5000 + | £0.18 | £0.22 |
£1.44 / each
.png)

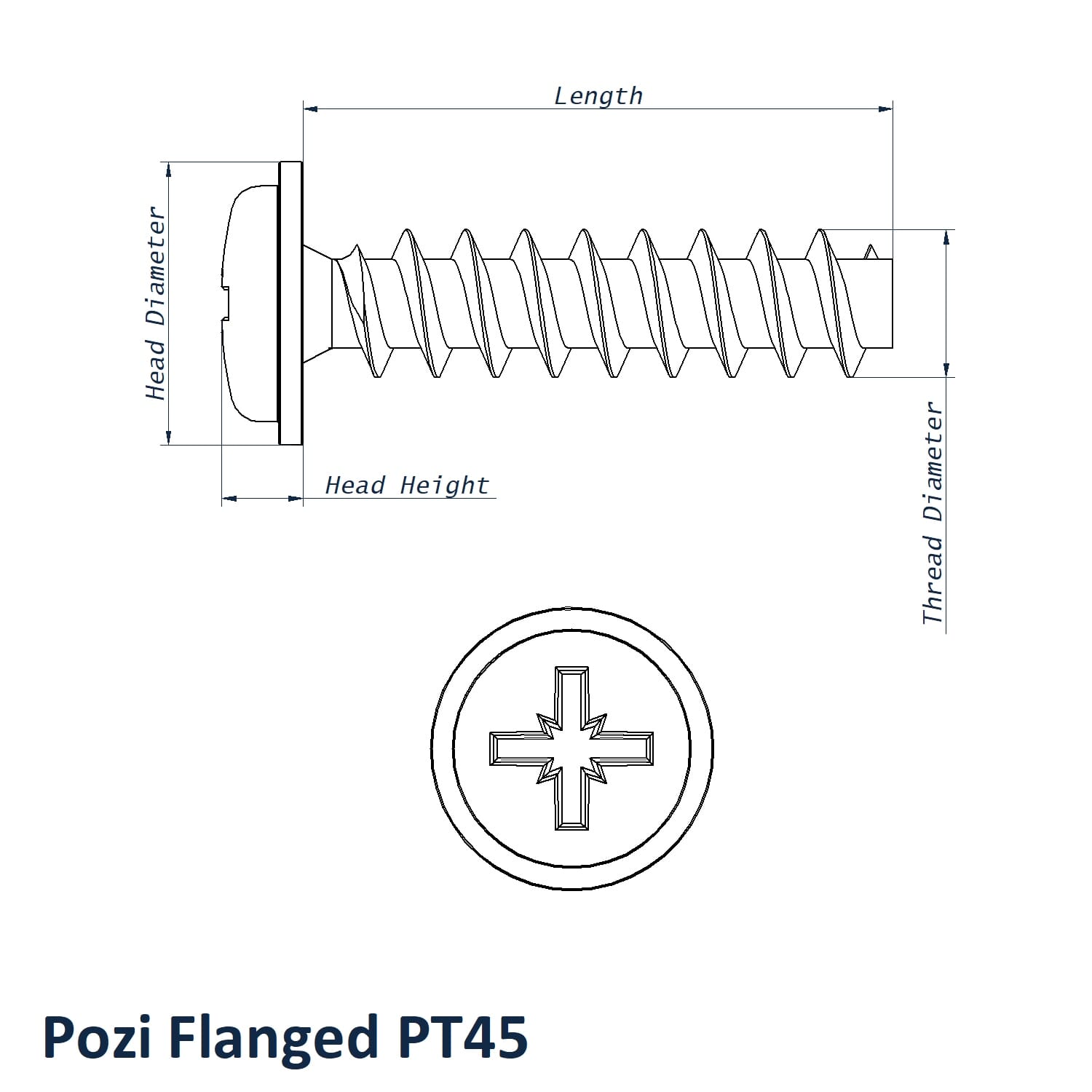

Product Specification
| Thread Size | 4.0mm |
| Thread Length | 20mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.00mm |
| Head Height | 2.00mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 20mm Pozi Flanged PT45 Screw for Hard Plastics | A2 Stainless Steel
Suitable for reinforced plastic parts used in demanding environments, this 4mm x 20mm Pozi Flanged screw uses the PT45 thread geometry intended for hard plastic components. The three-lobed thread body concentrates forming pressure at specific points while the 8.00mm head diameter provides a broad bearing face above the component.
What Are Pozi Flanged PT45 Screws?
A PT45 Flanged screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in harder materials while the wide flange supports broader load distribution.
Common Applications
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded components.
- Lighting Products: Secures rigid plastic bezels, covers and housings where a broad bearing surface is beneficial.

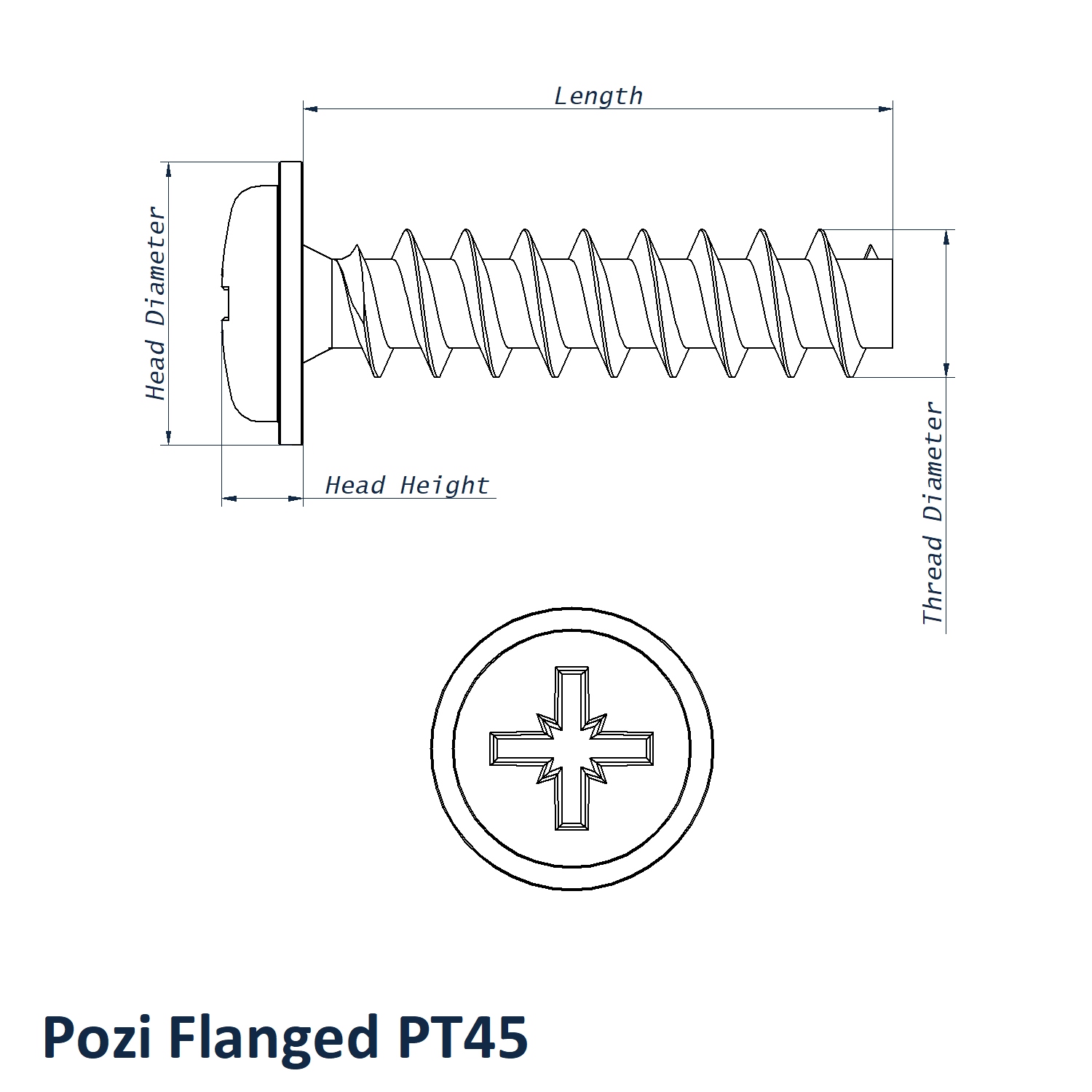

4mm x 20mm Pozi Flanged PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 20mm
- Head Diameter: 8.00mm
- Head Height: 2.00mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Flanged
Key Benefits
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- Flanged head helps spread clamping stress across a wider area of the plastic surface.
- 4mm thread size and 20mm thread length provide the primary fastening dimensions.
- PZ2 Pozi drive uses a widely available drive format for production and maintenance.
Further PT45 sizes are available through the Pozi Flanged Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
