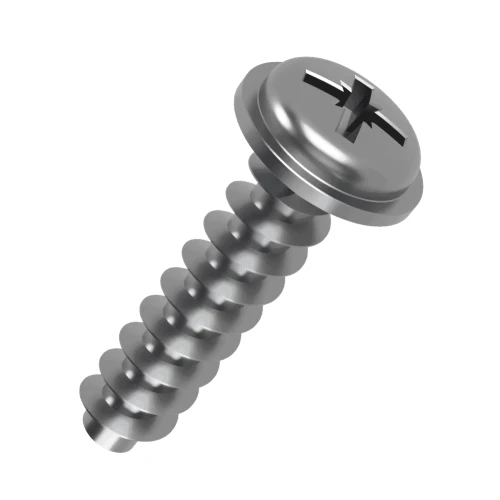

4mm x 8mm Pozi Flanged Screw for Hard Plastics (PT45) - PZ2 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.53 | £0.63 |
| 50 - 99 | £0.32 | £0.38 |
| 100 - 249 | £0.21 | £0.25 |
| 250 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.13 | £0.16 |
| 1000 - 4999 | £0.11 | £0.13 |
| 5000 + | £0.07 | £0.09 |
£0.63 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 8mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.00mm |
| Head Height | 2.00mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 8mm Pozi Flanged PT45 Screw for Hard Plastics | A2 Stainless Steel
Developed for reinforced plastic parts used in demanding environments, this 4mm x 8mm Pozi Flanged Screw is part of the PT45 range for hard plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials such as polycarbonate and fibre-reinforced plastics.
What Are Pozi Flanged PT45 Screws?
PT45 Pozi Flanged Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry supports thread formation in harder plastics while the flange increases the bearing area beneath the head.
Common Applications
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Consumer Electronics: Secures hard-plastic casings and panels while distributing pressure over a larger local area.

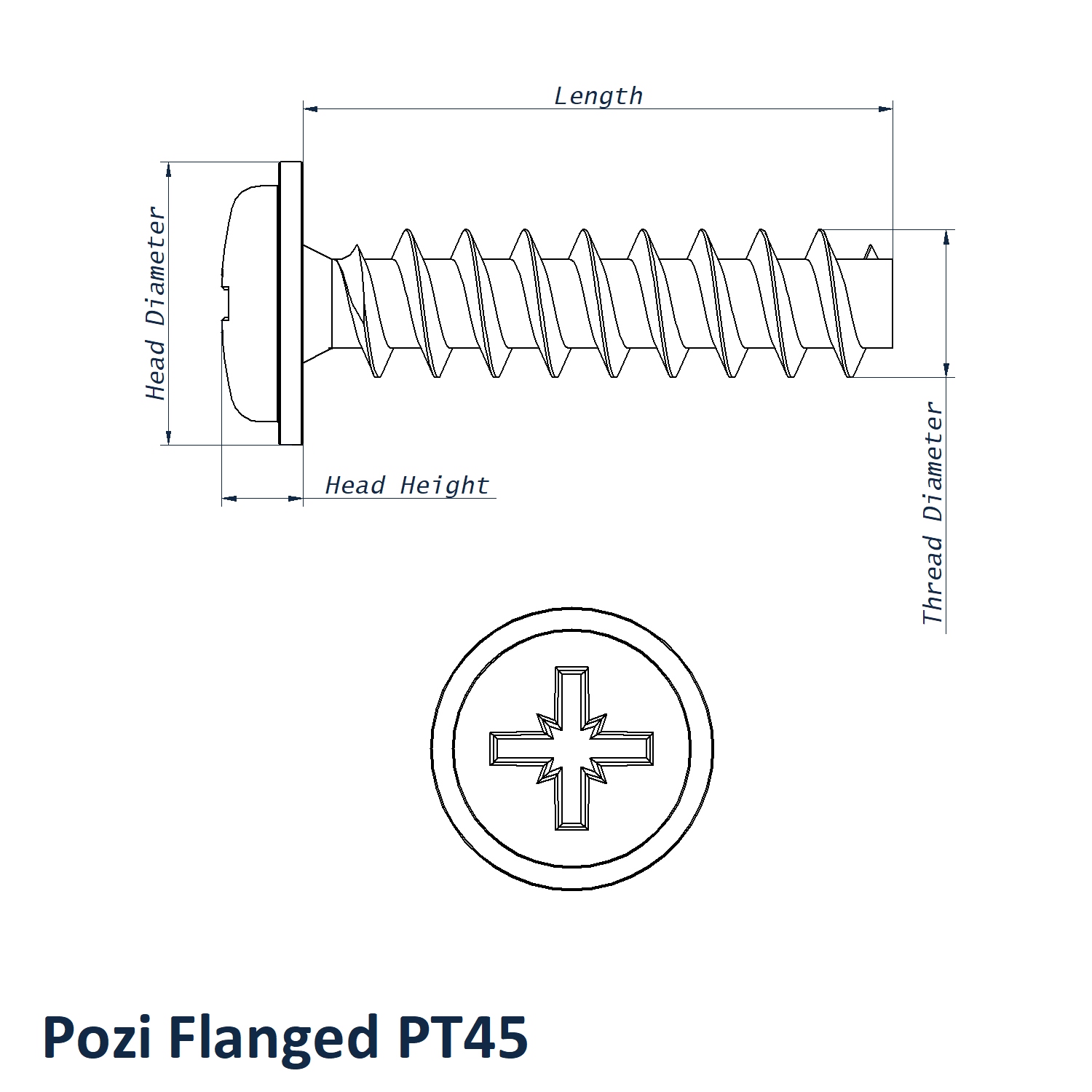

4mm x 8mm Pozi Flanged PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 8mm
- Head Diameter: 8.00mm
- Head Height: 2.00mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Flanged
Key Benefits
- The wider range also includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
- 4mm thread size and 8mm thread length provide the primary fastening dimensions.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- A2 Stainless Steel provides improved corrosion resistance for more demanding hard-plastic fastening environments.
See related dimensions and materials in the Pozi Flanged PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
