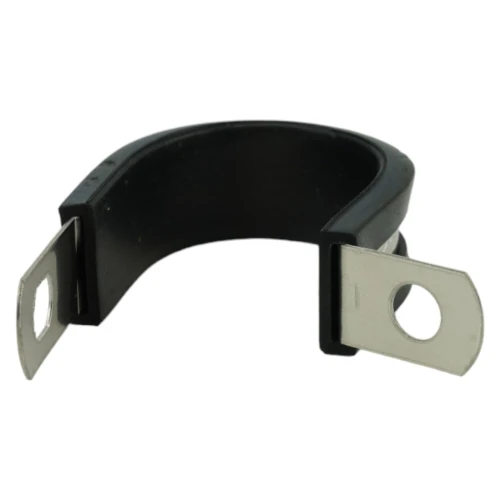

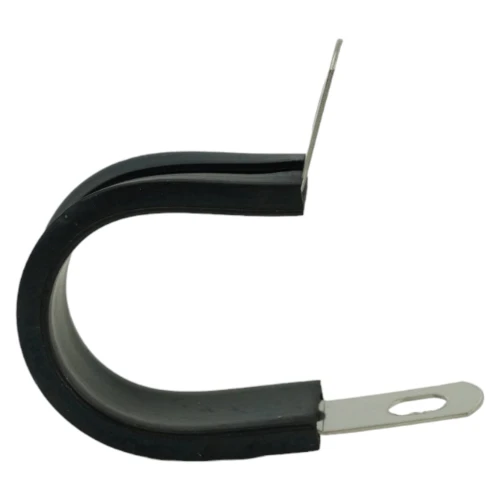

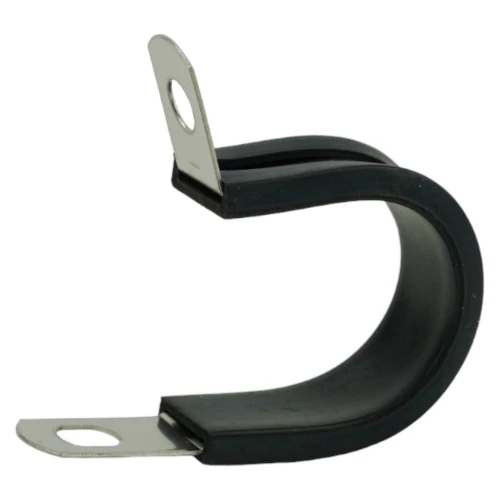

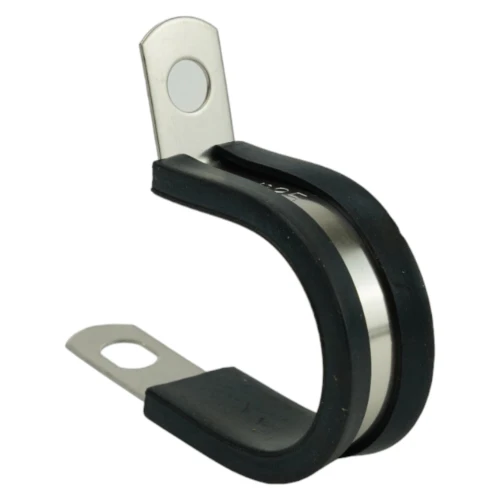

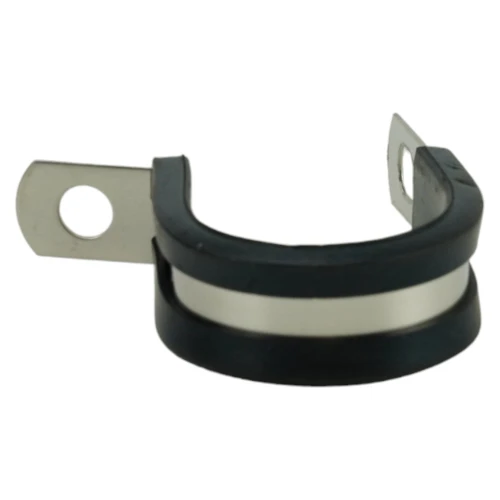

Rubber Lined P Clip 18mm, A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.68 | £0.82 |
| 25 - 49 | £0.62 | £0.75 |
| 50 - 99 | £0.57 | £0.69 |
| 100 - 249 | £0.53 | £0.63 |
| 250 + | £0.48 | £0.58 |
Product Specification
| Clamping Diameter | 18mm |
| Width | 16mm |
| Plate Width | 12.7mm |
| Hole Diameter | M6 |
| Plate Thickness | 0.7mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
18mm Rubber Lined P Clip | A4 Stainless Steel | M6 Fixing Hole
A useful choice for organised cable and hose runs, this 18mm stainless steel P clip keeps flexible hoses, conduit and control cables held in position while limiting surface wear.
The A4 Stainless Steel body provides the strength needed for a firm fixing, while the EPDM liner cushions the contact point and helps absorb vibration. With a M6 mounting hole, it can be bolted to panels, ceilings, brackets or structural frames.
Common Applications
- Securing hose runs on pumps, compressors and plant equipment
- Clamping cable looms to panels or fabricated brackets
- Supporting pipework where vibration reduction is required
- Routing service lines through machinery or vehicle builds

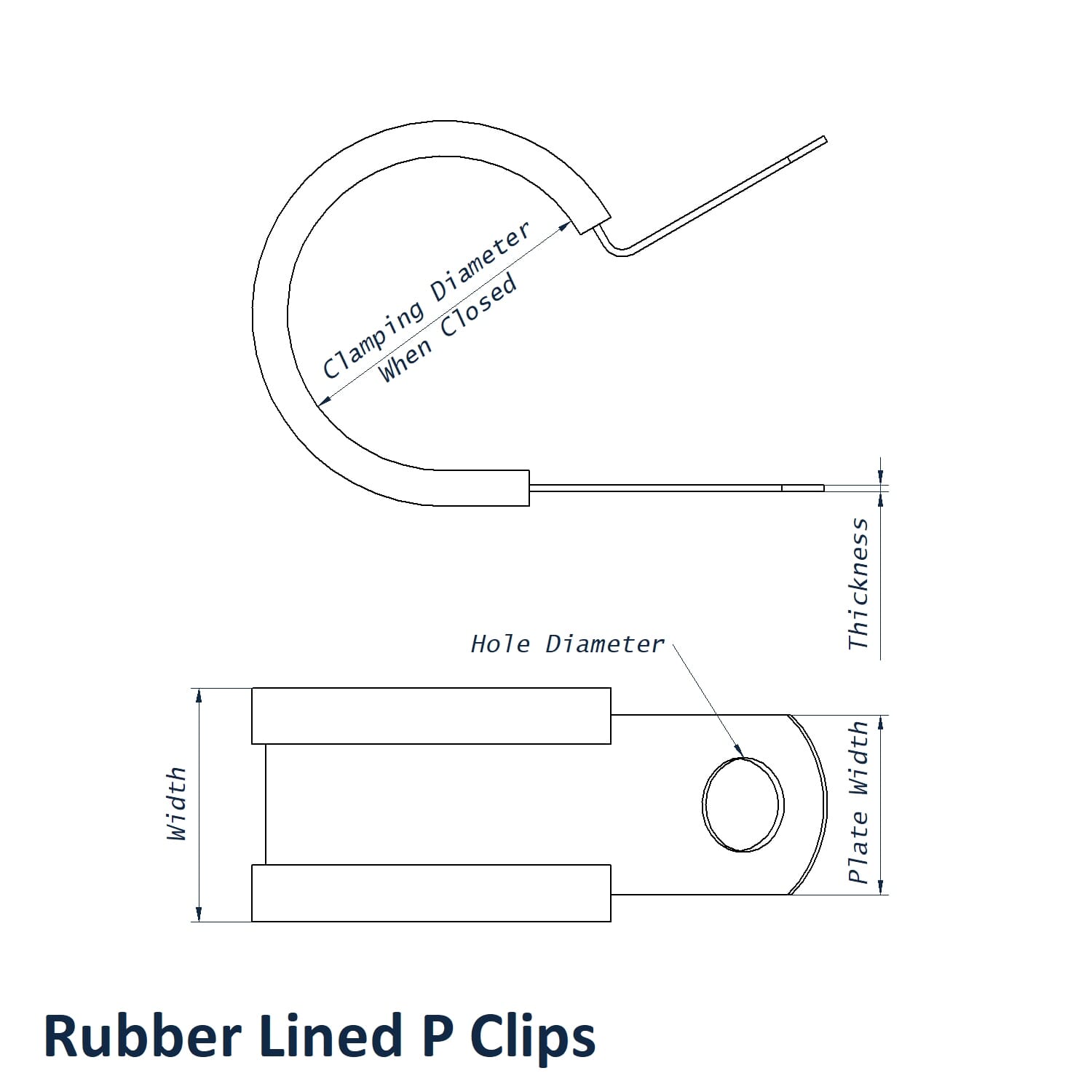

18mm A4 Stainless Steel Rubber Lined P Clip Dimensions
- Clamping Diameter: 18mm
- Width: 16mm
- Plate Width: 12.7mm
- Plate Thickness: 0.7mm
- Hole Diameter: M6
- Material: A4 Stainless Steel
Using Rubber Lined P Clips
When installing several clips along a pipe or cable route, keep spacing consistent and avoid over-tightening. A secure fit should support the component while allowing the rubber liner to perform as a cushion.
View our full Rubber Lined P Clips range.
Product Support and Trade Orders
For help checking the correct clamping diameter, material or fixing method for your pipe, hose or cable route, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for bulk or repeat trade requirements.
