Rubber Lined P Clip 16mm, A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.67 | £0.80 |
| 25 - 49 | £0.62 | £0.74 |
| 50 - 99 | £0.57 | £0.68 |
| 100 - 249 | £0.53 | £0.63 |
| 250 + | £0.48 | £0.58 |
Product Specification
| Clamping Diameter | 16mm |
| Width | 16mm |
| Plate Width | 12.7mm |
| Hole Diameter | M6 |
| Plate Thickness | 0.7mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

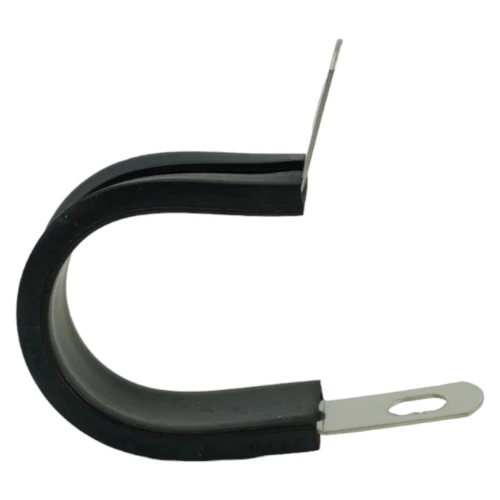

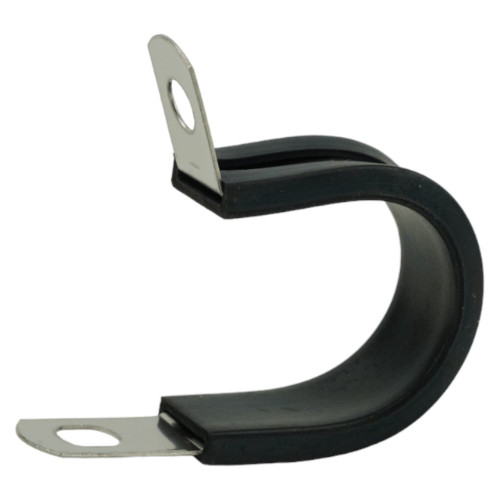

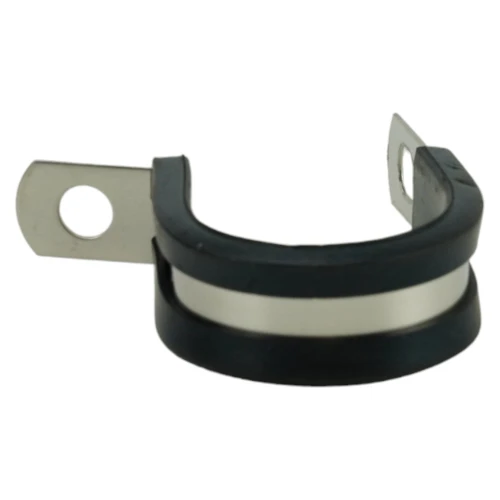

16mm Rubber Lined P Clip | A4 Stainless Steel | M6 Fixing Hole
Used across installations where vibration and abrasion control are important, this 16mm rubber lined clamp gives pipes, hoses and cable runs a secure rubber-lined fixing.
The rubber lining helps protect painted, coated, plastic and flexible components from direct metal contact. A4 stainless steel is well suited to exposed, damp or more corrosive environments where a longer service life is required.
Common Applications
- Supporting pipe clips in production line guarding areas
- Fixing hydraulic and pneumatic hose routes around moving machinery
- Separating electrical looms from hot or abrasive surfaces
- Improving the finish of routed pipe and cable assemblies

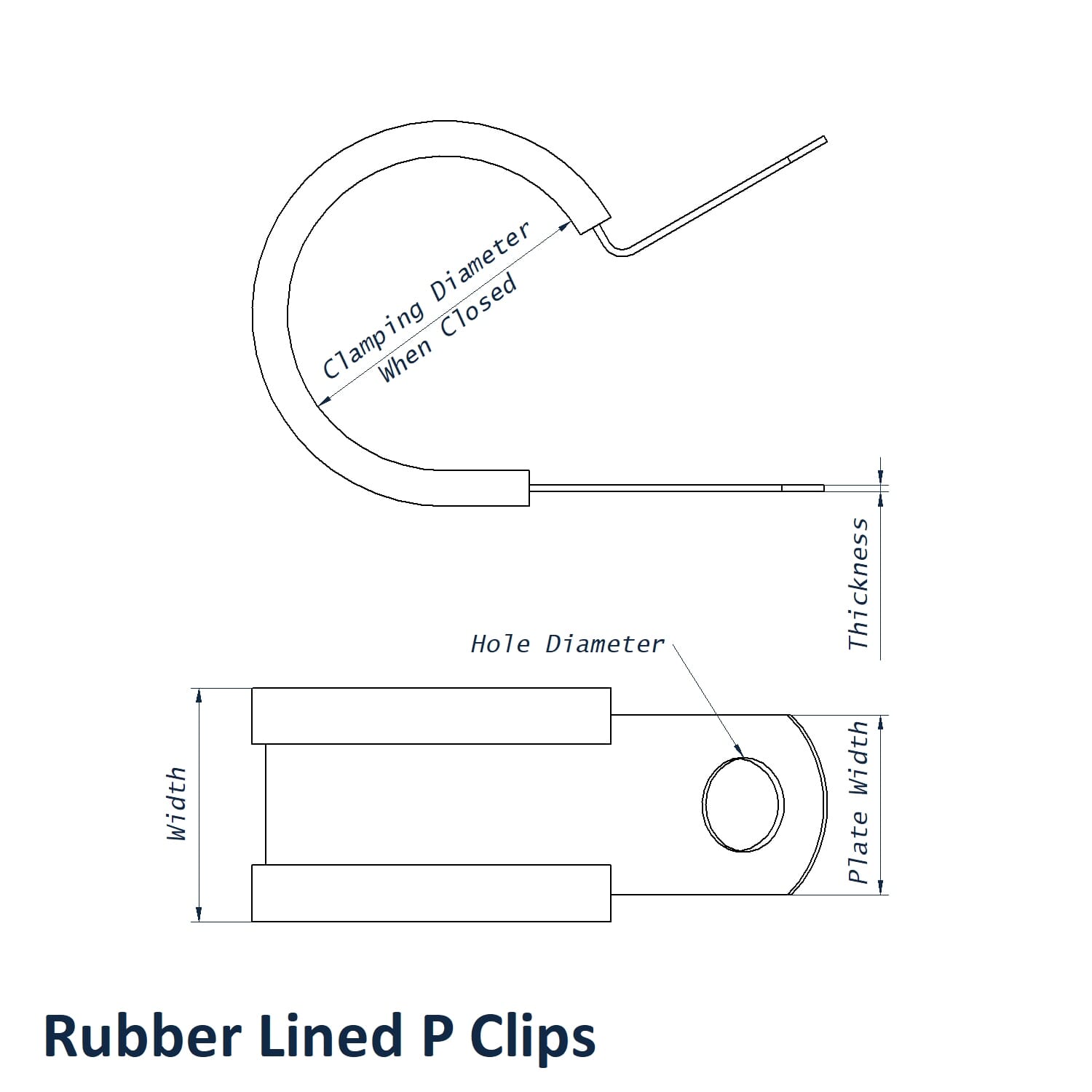

16mm A4 Stainless Steel Rubber Lined P Clip Dimensions
- Clamping Diameter: 16mm
- Width: 16mm
- Plate Width: 12.7mm
- Plate Thickness: 0.7mm
- Hole Diameter: M6
- Material: A4 Stainless Steel
Rubber Lined Clip Selection
Choose the A4 stainless steel option where corrosion resistance matters, especially around moisture, salt spray, washdown cleaning or outdoor service. The 16mm size is suited to components that need a close cushioned hold rather than a loose retaining loop.
View our full Rubber Lined P Clips range.
Product Support and Trade Orders
For sizing support, larger quantities or help choosing between BZP and A4 stainless steel, call the Vital Parts team on 01233 713581. We can advise on suitable options for pipework, cable management and hose retention projects.
