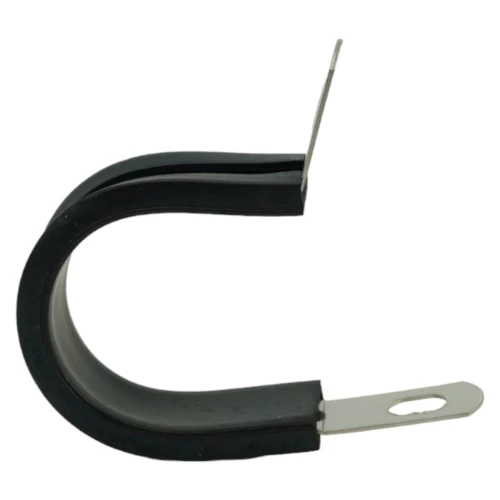

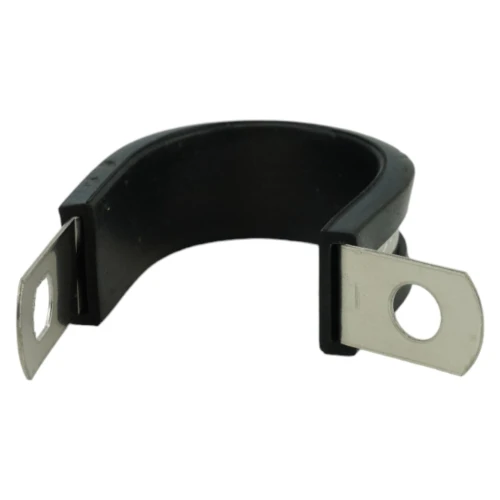

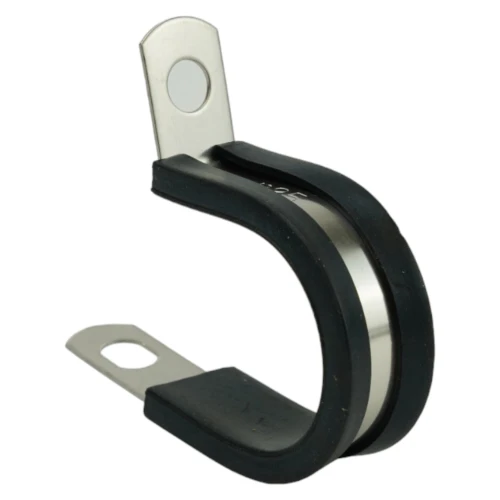

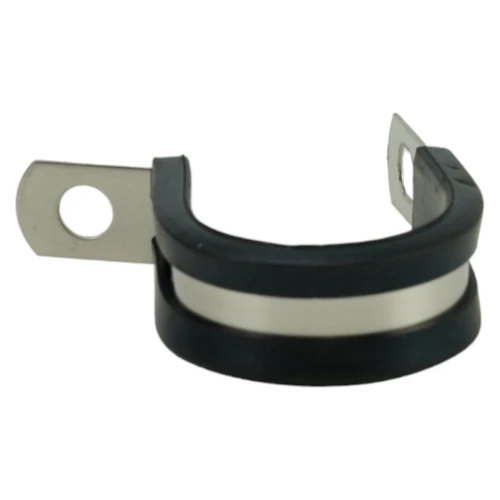

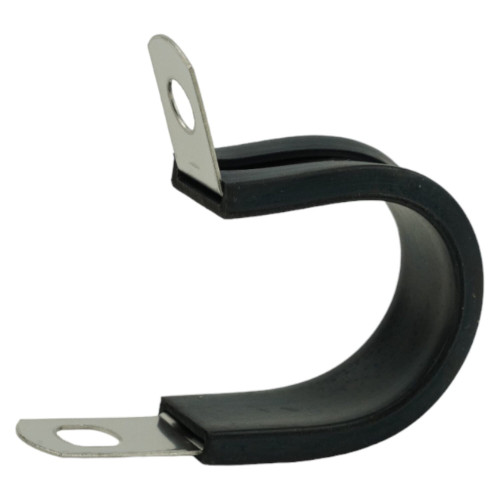

Rubber Lined P Clip 56mm, A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.60 | £1.92 |
| 25 - 49 | £1.48 | £1.77 |
| 50 - 99 | £1.36 | £1.63 |
| 100 - 249 | £1.25 | £1.50 |
| 250 + | £1.15 | £1.38 |
Product Specification
| Clamping Diameter | 56mm |
| Width | 16mm |
| Plate Width | 12.7mm |
| Hole Diameter | M6 |
| Plate Thickness | 0.9mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
56mm Rubber Lined P Clip | A4 Stainless Steel | M6 Fixing Hole
Specified for both maintenance work and new equipment builds, this 56mm fixing P clamp secures compressed air lines, conduit and machinery cables with a rubber-lined grip.
A compact mounting plate and M6 fixing hole make the clip suitable for tight layouts where space around hoses or cables is limited.
Common Applications
- Mounting small service lines in cabinets, enclosures and panels
- Retaining hosework in mobile equipment and plant vehicles
- Clamping cable bundles where access for inspection is needed
- Reducing loose pipe movement in repair and refurbishment jobs

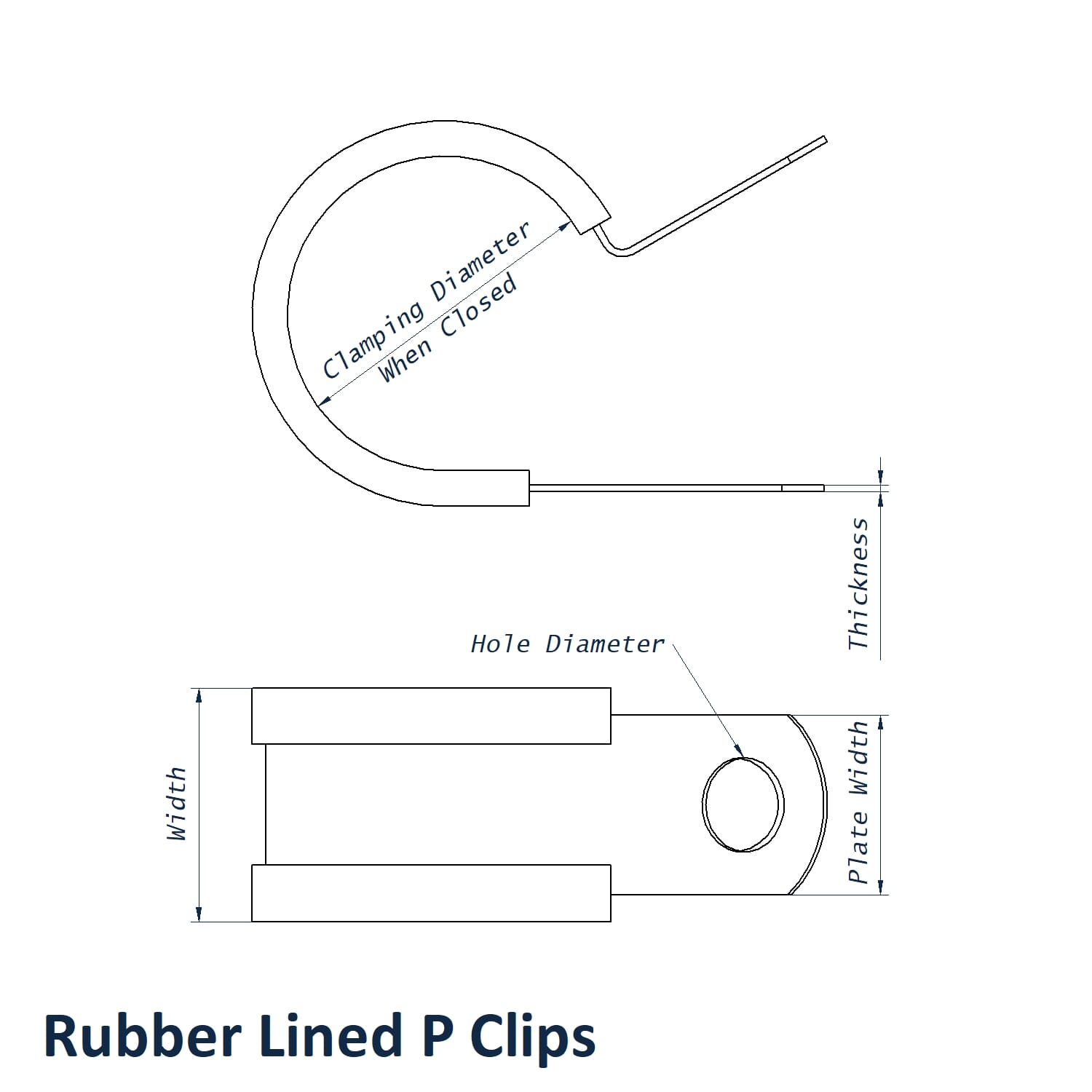

56mm A4 Stainless Steel Rubber Lined P Clip Dimensions
- Clamping Diameter: 56mm
- Width: 16mm
- Plate Width: 12.7mm
- Plate Thickness: 0.9mm
- Hole Diameter: M6
- Material: A4 Stainless Steel
P Clip Fixing Advice
Use this clip where a protected contact point is needed between the fixing and the supported component. The EPDM liner helps reduce vibration transfer and limits abrasion during regular operation.
View our full Rubber Lined P Clips range.
Product Support and Trade Orders
Need support with a multi-size P clip order or a demanding installation environment? Speak with the Vital Parts team on 01233 713581 for guidance on sizing, materials and repeat supply options.
