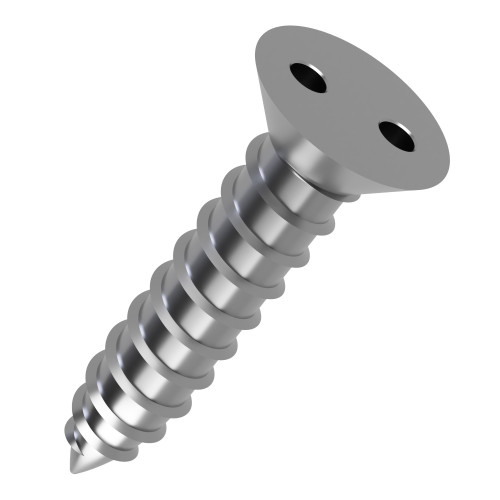

4.8mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.89 | £1.07 |
| 100 - 499 | £0.84 | £1.01 |
| 500 - 999 | £0.67 | £0.80 |
| 1000 + | £0.44 | £0.53 |
Product Specification
| Thread Size | 4.8mm |
| Length | 32.0mm |
| Head Diameter | 8.9mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH6 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
For prepared holes in compatible sheet materials, this 4.8mm x 32mm snake eye sheet metal screw helps installers carry out mounting cable entry plates efficiently.
With a low profile head and clear Security TH6 drive detail, the screw is practical for accessible fixings that may need future removal. A2 stainless steel supports corrosion resistance and consistent performance in storage system work where strong sheet retention is required.
Common Applications
- Securing metal fascia panels
- Retaining enclosure lids
- Securing light gauge metalwork
- Securing metal cappings

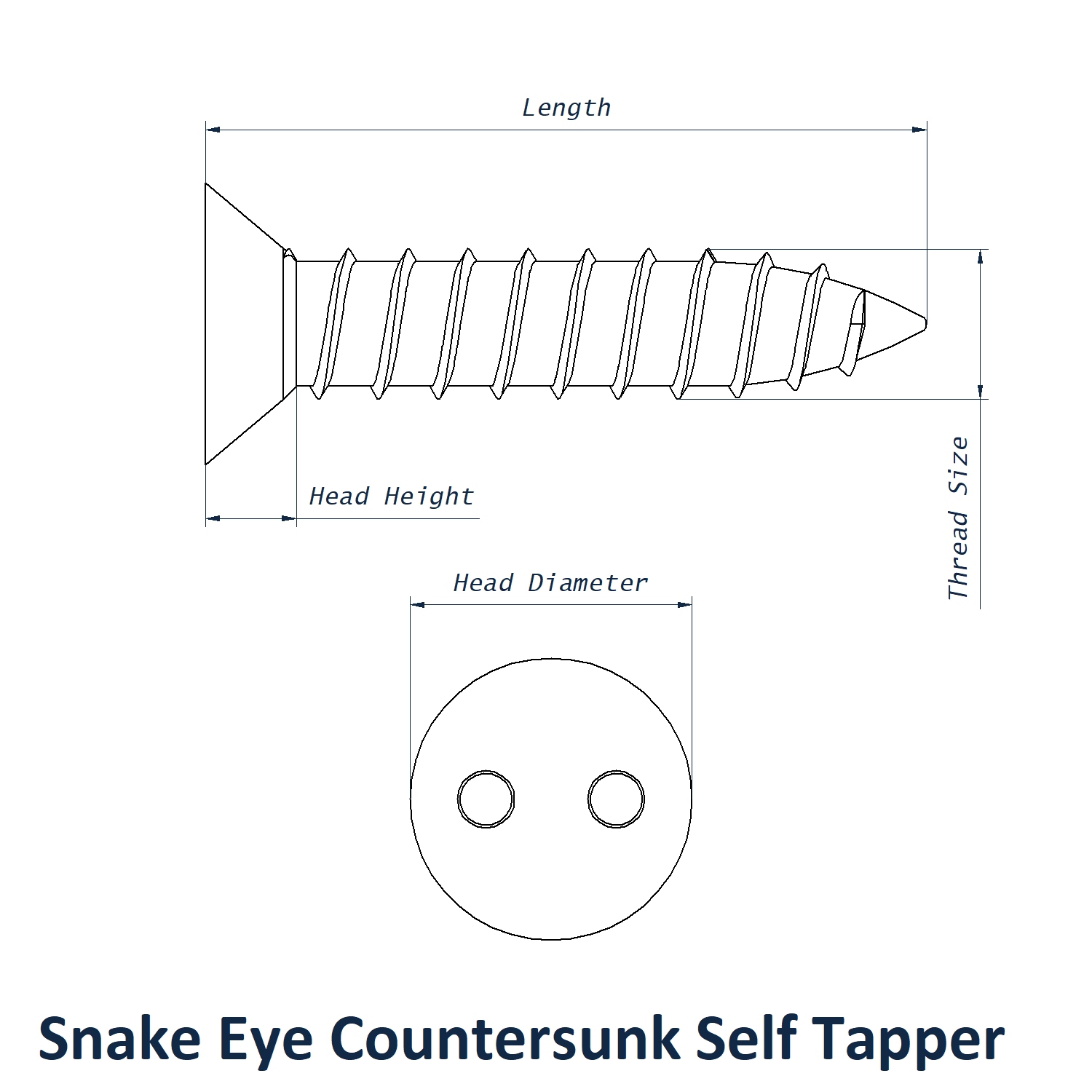

4.8mm x 32mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 32mm
- Head Diameter: 8.9mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security TH6
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
