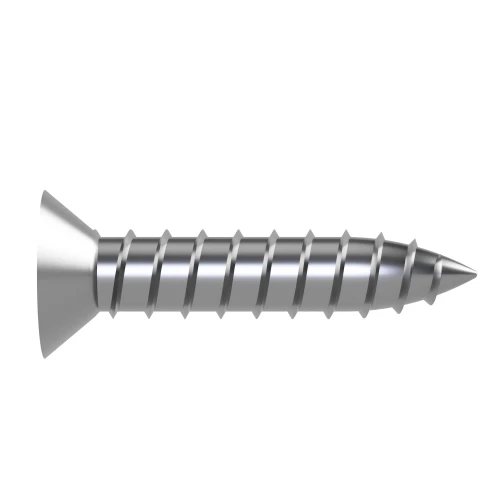

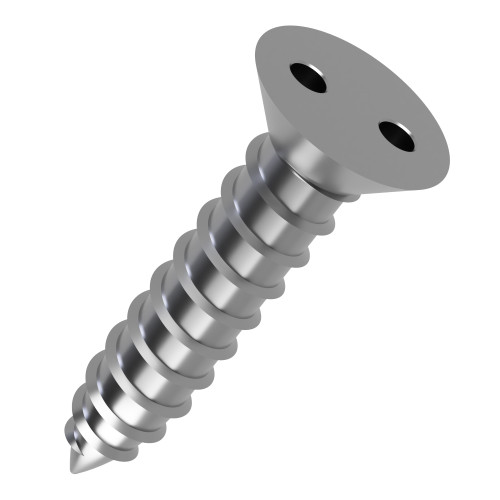

4.8mm x 25mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.97 | £1.17 |
| 100 - 499 | £0.93 | £1.11 |
| 500 - 999 | £0.73 | £0.88 |
| 1000 + | £0.48 | £0.58 |
Product Specification
| Thread Size | 4.8mm |
| Length | 25.0mm |
| Head Diameter | 8.9mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH6 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 25mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
When OEM manufacture assemblies need securing light gauge metalwork, this 4.8mm x 25mm metal panel fixing screw provides a straightforward fixing with a clean face finish.
A2 stainless steel supports corrosion resistance and consistent performance in OEM manufacture work where controlled tightening is required. The Security TH6 drive gives a clear tool interface for fitting into sheet or panel applications.
Common Applications
- Securing metal cappings
- Fastening equipment flanges
- Securing control cabinet fittings
- Fixing sheet steel panels

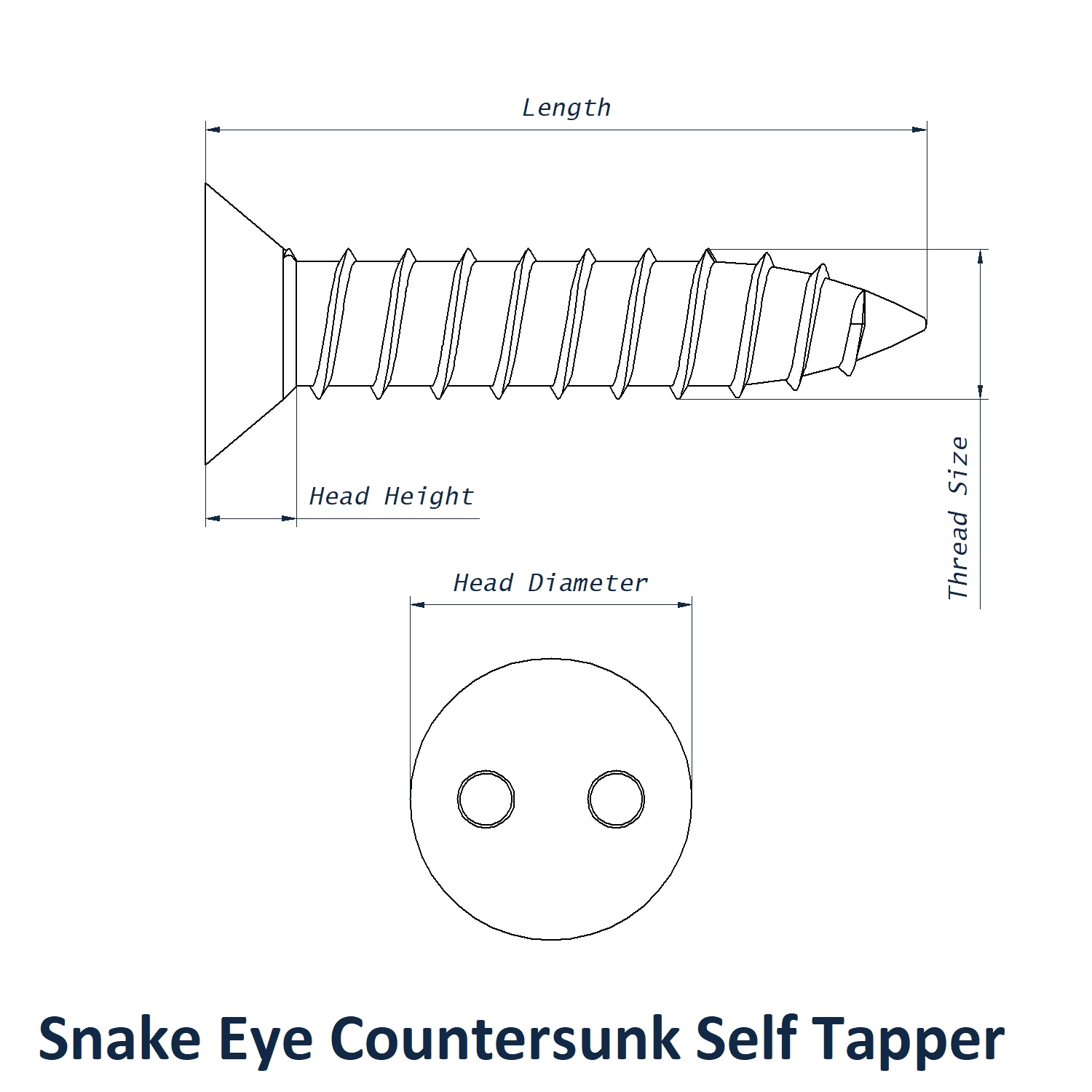

4.8mm x 25mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 25mm
- Head Diameter: 8.9mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security TH6
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
