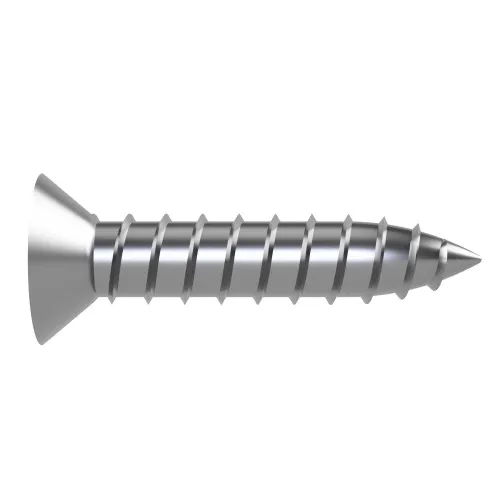

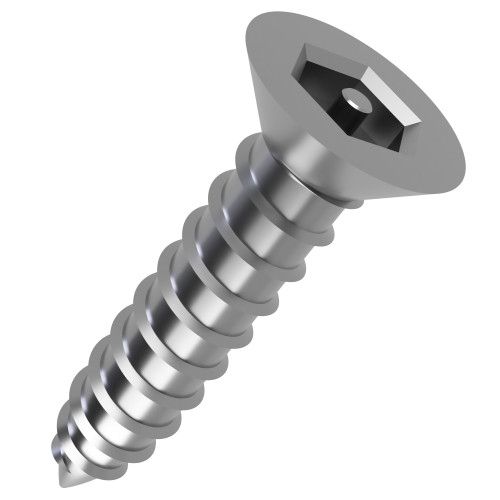

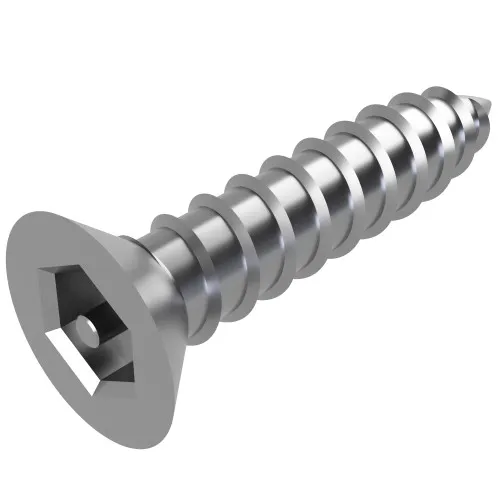

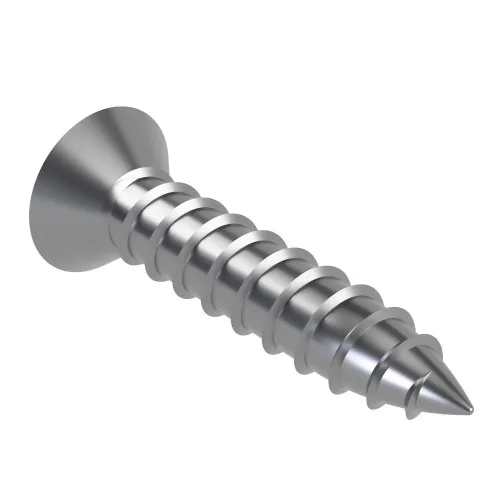

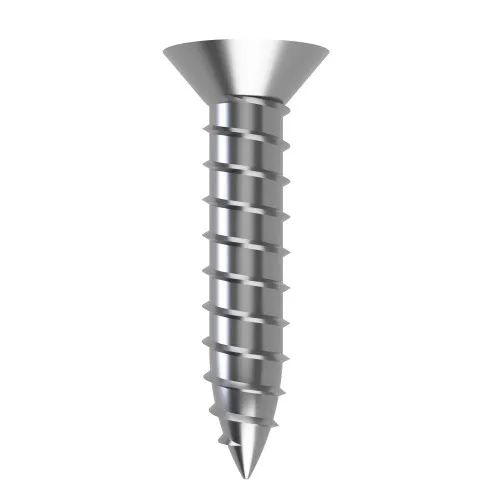

3.5mm x 19mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.04 | £0.05 |
| 100 - 499 | £0.03 | £0.04 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 + | £0.02 | £0.02 |
£0.05 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Length | 19mm |
| Head Diameter | 6.6mm |
| Head Height | 2.10mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM2 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
3.5mm x 19mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
Used across assembly bench, this 3.5mm x 19mm flush head panel screw supports clean fastening when retaining access hatch frames must sit level with the surrounding face.
The Pin Hex drive is suited to repeatable assembly work and the AB thread form assists with bite into compatible sheet materials. It can support flush fixing screw work and assembly screw fitting.
Common Applications
- Fitting inspection panels
- Fixing removable equipment skins
- Joining aluminium sections
- Securing metal fascia panels

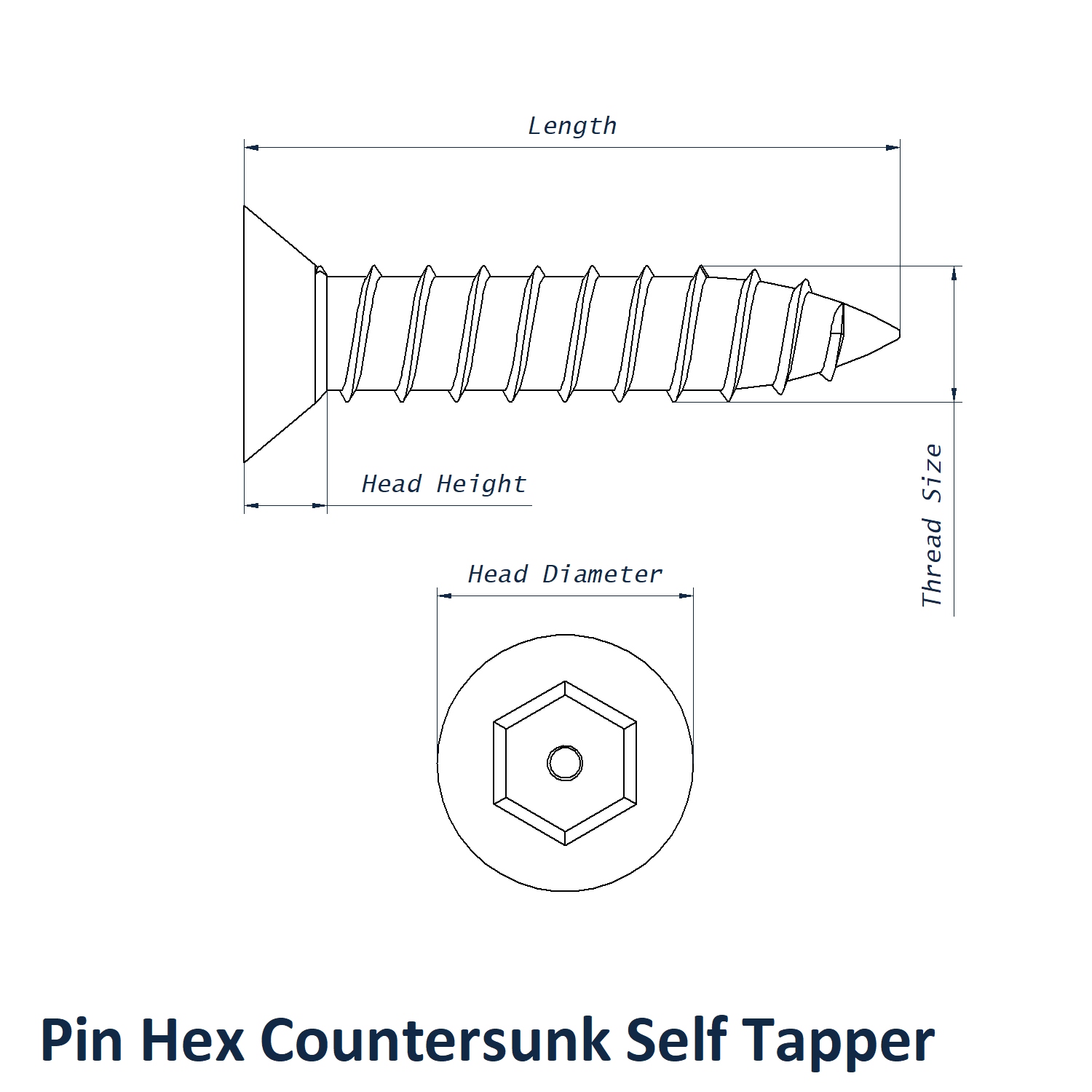

3.5mm x 19mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 19mm
- Head Diameter: 6.6mm
- Head Height: 2.10mm
- End Type: AB
- Drive: Security HM2
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
