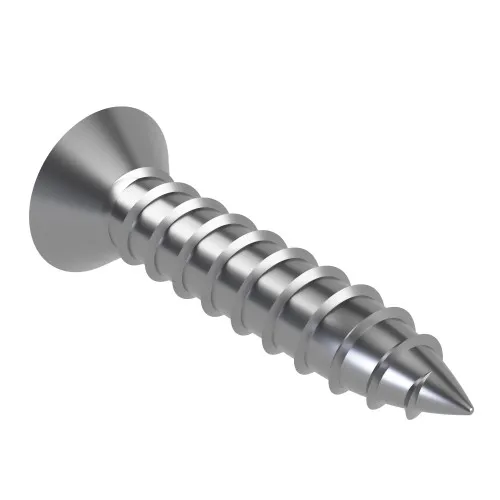

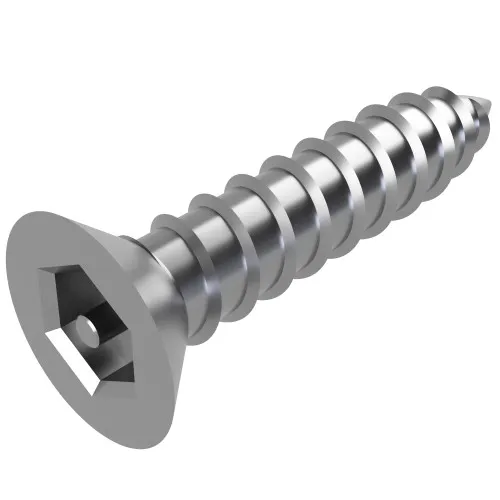

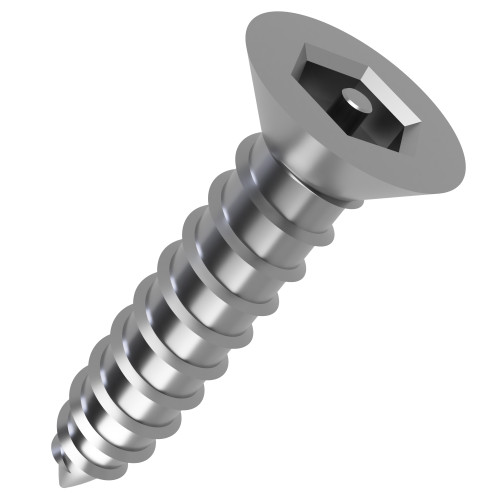

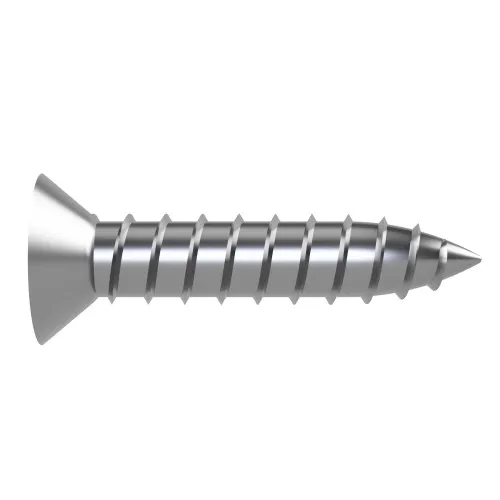

3.5mm x 25mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.06 | £0.07 |
| 100 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 + | £0.02 | £0.02 |
£0.07 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Length | 25mm |
| Head Diameter | 6.6mm |
| Head Height | 2.10mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM2 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
3.5mm x 25mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
Designed for fastening aluminium cover panels, this 3.5mm x 25mm countersunk engineering screw provides a clean flush fixing for engineering assemblies that need a low profile head.
A2 stainless steel supports corrosion resistance and consistent performance in engineering work where good load spread at the head is required. This specification is suited to countersunk sheet screw use, bracket fixing screw work and enclosure screw fitting.
Common Applications
- Mounting light brackets
- Fixing equipment bezels
- Retaining machine access doors
- Attaching small brackets

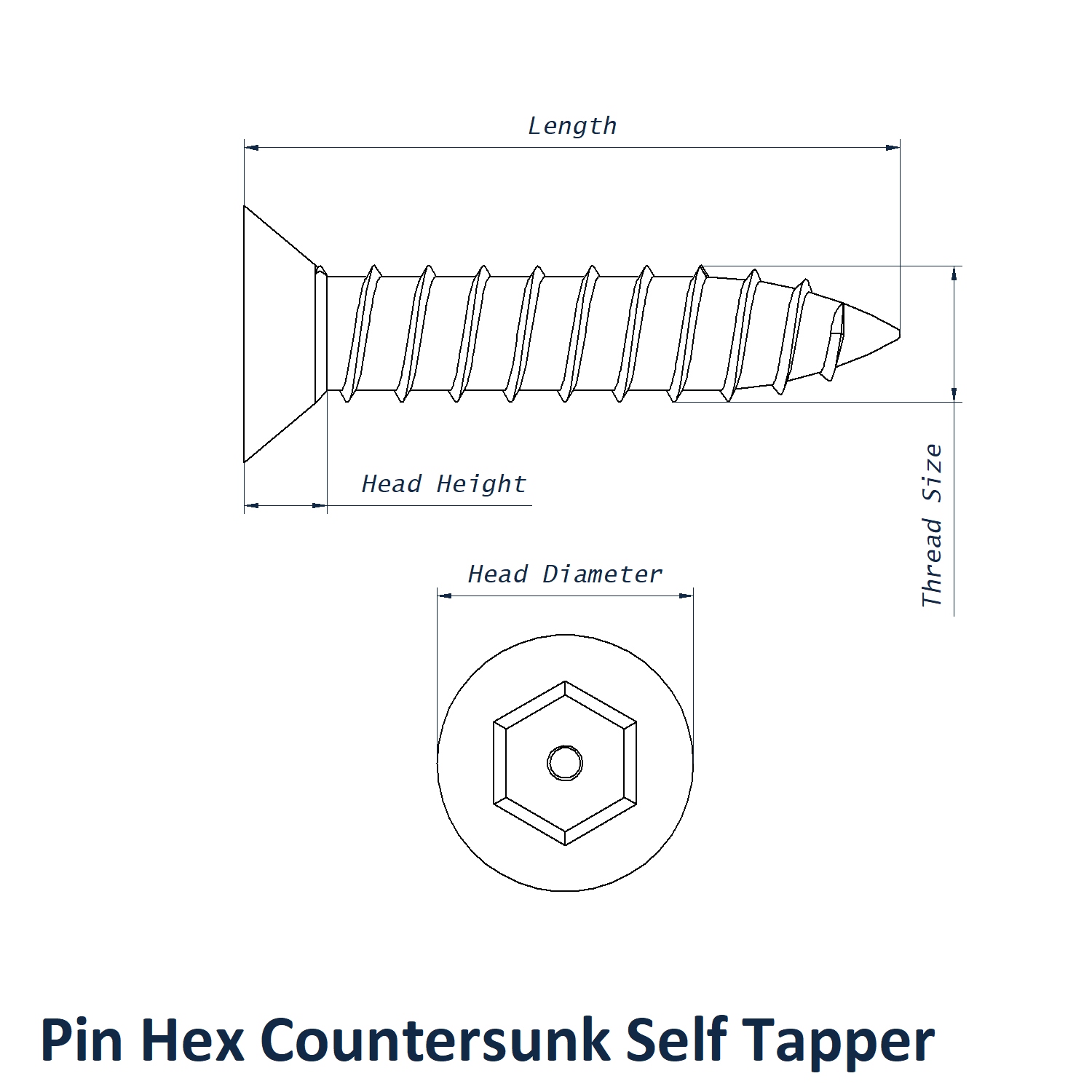

3.5mm x 25mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 25mm
- Head Diameter: 6.6mm
- Head Height: 2.10mm
- End Type: AB
- Drive: Security HM2
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
