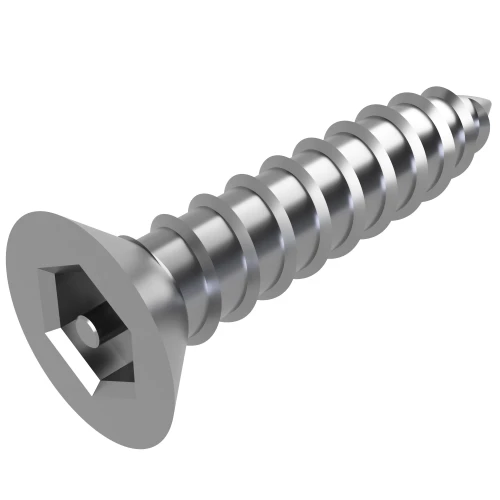

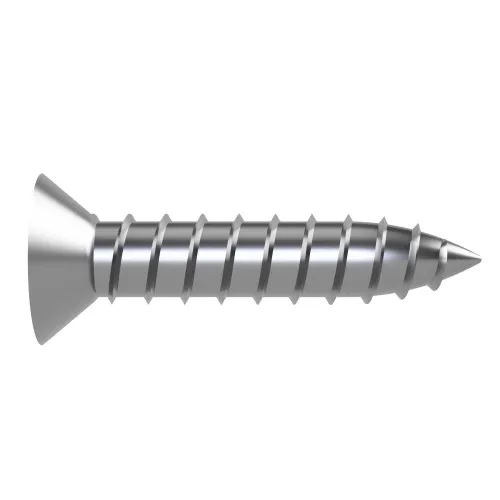

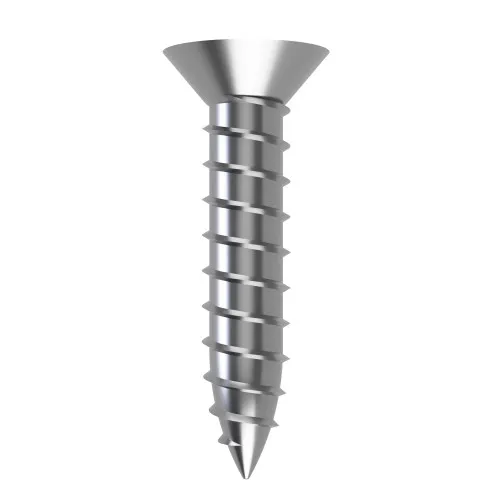

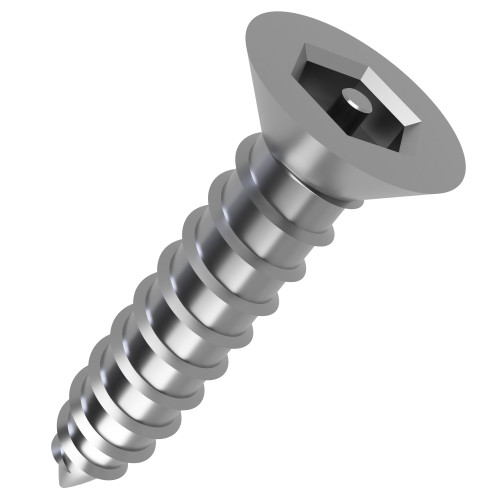

3.5mm x 38mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 + | £0.03 | £0.04 |
£0.11 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Length | 38mm |
| Head Diameter | 6.6mm |
| Head Height | 2.10mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM2 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

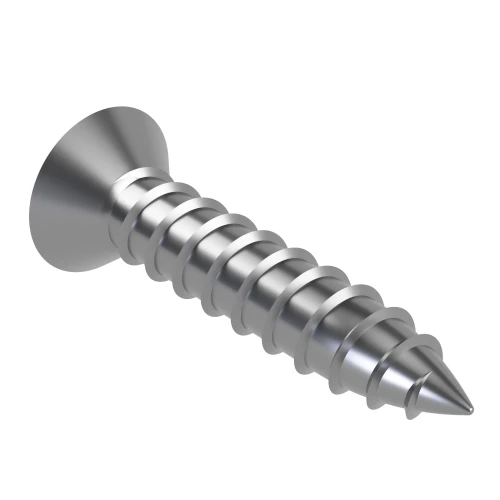

3.5mm x 38mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
When OEM manufacture assemblies need securing service access plates, this 3.5mm x 38mm sheet steel fixing screw provides a straightforward fixing with a clean face finish.
A2 stainless steel supports corrosion resistance and consistent performance in OEM manufacture work where fast thread forming is required. The Security HM2 drive gives a clear tool interface for fitting into sheet or panel applications.
Common Applications
- Securing utility covers
- Building fabricated assemblies
- Fixing enclosure trims
- Fixing junction box covers

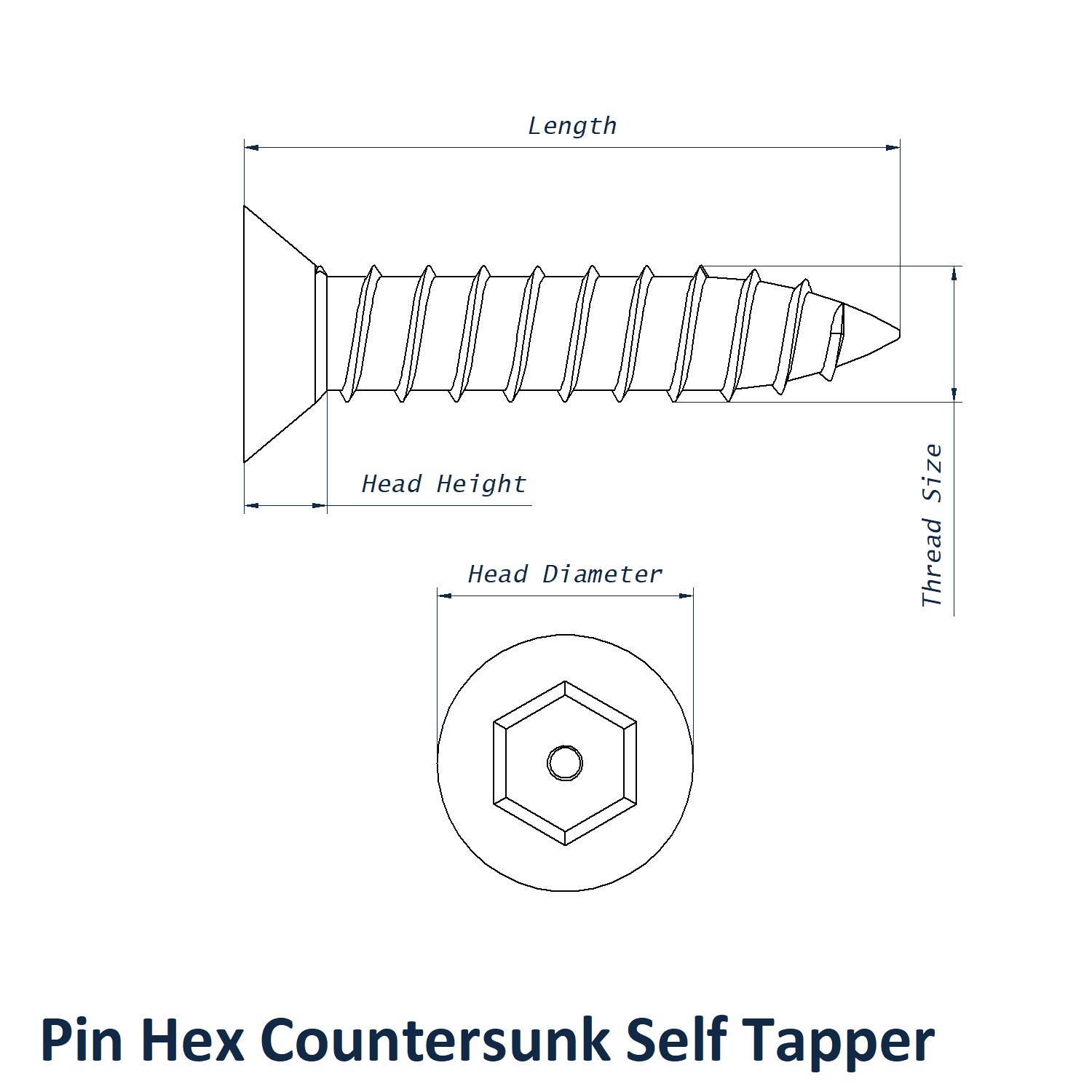

3.5mm x 38mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 38mm
- Head Diameter: 6.6mm
- Head Height: 2.10mm
- End Type: AB
- Drive: Security HM2
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
